Home > Products > China Engine Generator > 20KVA to 500KVA China Yuchai diesel generator price

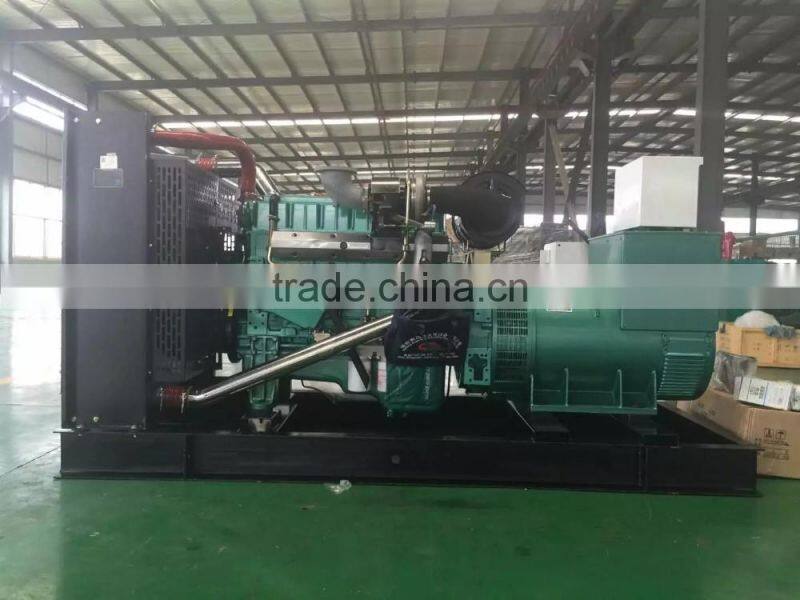

20KVA to 500KVA China Yuchai diesel generator price
- 200 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | China Yuchai | Model Number: | GNRY |
Output Type: | AC Three Phase | Speed: | 1500rpm or 1800rpm | Frequency: | 50Hz or 60Hz |
Rated Power: | 20KVA to 500KVA | Rated Voltage: | 220V/380V, 230V/400V, 240V/415V | Rated Current: | 28A to 720A |
Product Description
20KVA to 500KVA China Yuchai diesel generator price
1. YUCHAI engine
Yuchai Machinery Co., Ltd. is located in Yulin City China. It was established in 1951. The enterprise goal of Yuchai is “providing excellent and advanced power products to meet public demand”. Its engine characteristics as below:
1). It has big horse power, great torque, high reliability, low oil consumption, low emissions, low noise, less vibration, which are suitalbe for long term usage
2). Fuel and lubrication consumption less than other engines in China
3). Exhaust emission less than the domestic standards
4). Easy maintenance and convenient service network.
2. Alternator
1. alternator brand: Stamford,LeroySomer, Marathon,Engga
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Wide range of flange adaptors and single bearing disc coupling
7. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
8. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
3. Controller system
1.Standard control panel, including voltmeter, frequency meter, ampere meter, water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module, oil level indicator, emergency button, preheating button, battery voltage gauge, hours running counter for protection and transfer.
2. ComAp, Deepsea, Smartgen controller for option.
Parameters: | |||||||||
Genset Model | Prime Power | Standby Power | Engine | Fuel Consumption | Cylinder No. | Displacement | Bore X Stroke | ||
KW | KVA | KW | KVA | (g/kwh) | (L ) | (mm) | |||
GNR-23 | 16 | 20 | 18 | 23 | YC2108D | ≤235 | 2 | 2.199 | 108*120 |
GNR-34 | 24 | 30 | 27 | 34 | YC2115D | ≤235 | 2 | 2.493 | 115*120 |
GNR-55 | 40 | 50 | 44 | 55 | YC4108D | ≤199 | 4 | 4.21 | 108*115 |
GNR-63 | 45 | 56 | 50 | 63 | YC4D70Z-D20 | ≤197 | 4 | 4.214 | 108*115 |
GNR-69 | 50 | 63 | 55 | 69 | YC4D75Z-D20 | ≤199 | 6 | 6.494 | 105*125 |
GNR-88 | 64 | 80 | 70 | 88 | YC6108D | ≤199 | 6 | 6.871 | 108*125 |
GNR-104 | 75 | 94 | 83 | 104 | YC6108ZD | ≤197 | 6 | 6.871 | 108*125 |
GNR-125 | 90 | 113 | 100 | 125 | YC6108ZLD | ≤195 | 6 | 6.871 | 108*125 |
GNR-138 | 100 | 125 | 110 | 138 | YC6B150D | ≤195 | 6 | 6.871 | 108*125 |
GNR-165 | 120 | 150 | 132 | 165 | YC6A190D | ≤195 | 6 | 7.252 | 108*132 |
GNR-206 | 150 | 188 | 165 | 206 | YC6112ZLD | ≤195 | 6 | 7.8 | 112*132 |
GNR-275 | 200 | 250 | 220 | 275 | YC6M320L-D20 | ≤189 | 6 | 9.84 | 120*145 |
GNR-481 | 350 | 438 | 385 | 481 | YCT550L-D20 | ≤192 | 6 | 15.6 | 140*155 |
GNR-550 | 400 | 500 | 440 | 550 | YC6T600L-D20 | ≤194 | 6 | 16.35 | 145*165 |
