Specifications
1.Hand operate ;2.Curving sheet metal or plate;

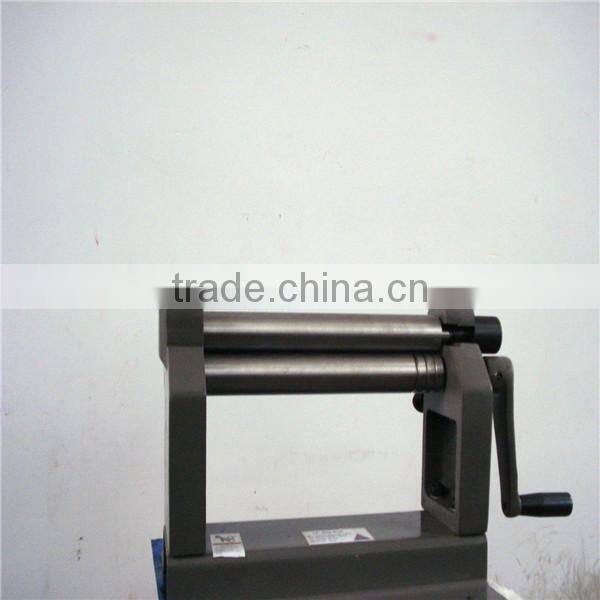

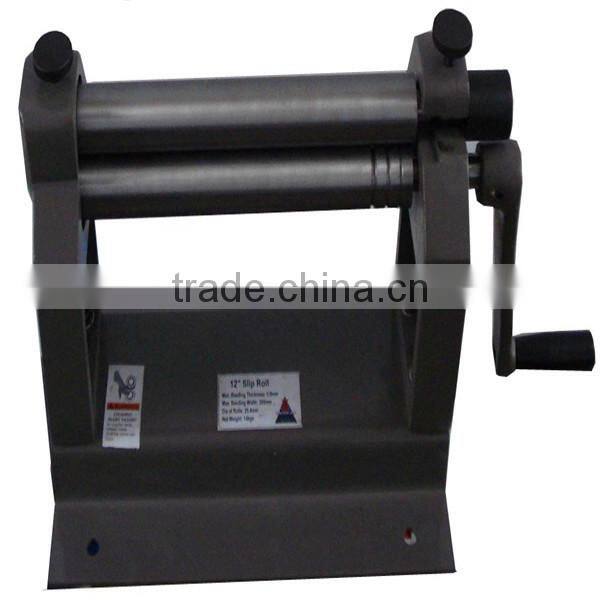

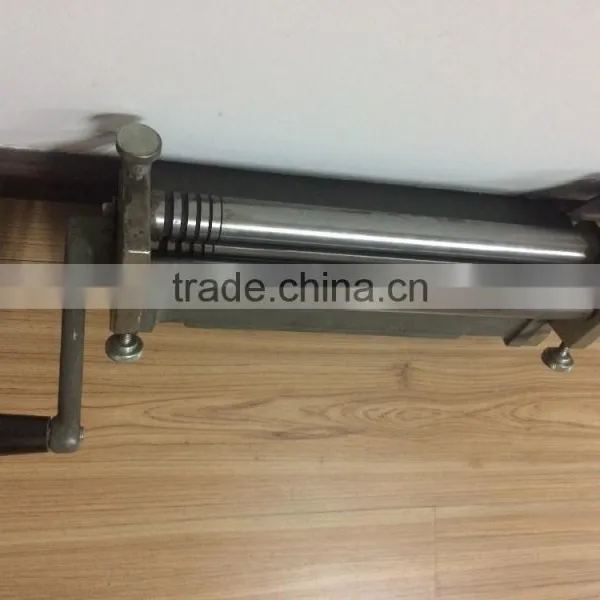

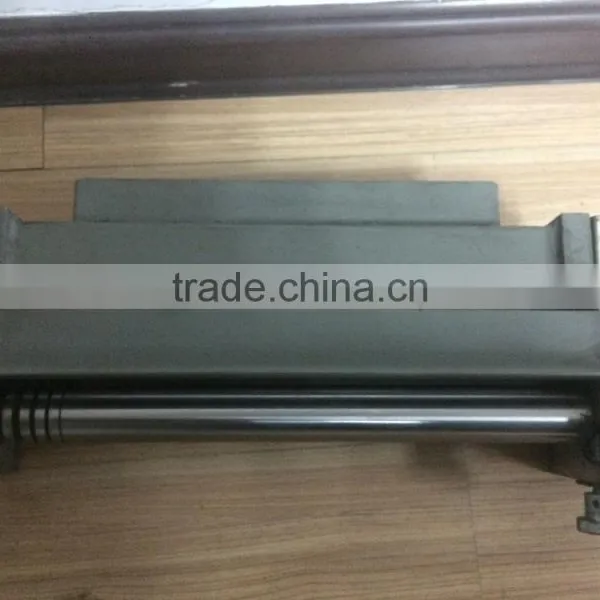

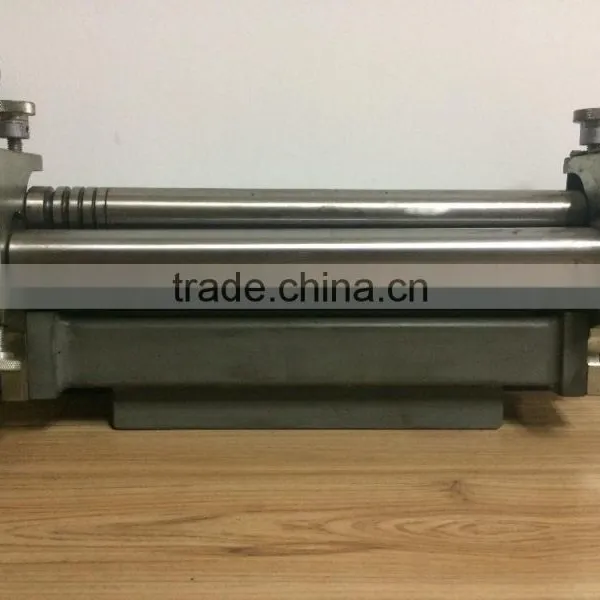

thin sheet plate manual small slip roll machine made in china
thin sheet plate manual small slip roll machine made in china
Product Description
Manual Rolling Machine Main Technical Specification | ||||
| Model | SR12”(G30) | SR12”(Z25) | SR24”(Z38) | SR36” |
| Max Plate Width | 305mm | 305mm | 610mm | 915mm |
| Capacity Mild Steel | 1.5mm | 1.0mm | 1.2mm | 1.2mm |
| Upper Roll dia. | 30mm | 25mm | 38mm | 38mm |
| Packing Size(mm) | 430x230x135 | 470x205x280 | 900x250x300 | 1200x250x300 |
| Packing | Carton | Carton | Carton | Wood box |
| Weight(N/G) | 10.5/11kg | 23/24kg | 40/42kg | |
terested in curving your sheet metal or plate? Our 3 roll benders work by pinching the metal between two rolls and curving it as it comes in contact with a back forming roll. This curves the metal workpiece into a cylindrical form, where it is welded together to produce a cylinder. The upper roll is in a fixed position, the lower roll has adjustable movement to perform the gripping function. These are the "pinch" rolls. The third roll (the forming roll) is also adjustable. With a manually opened or hydraulically moved drop hinge, the end of the top shaft is opened to allow removal of the finished work piece, especially a completed tube shape.

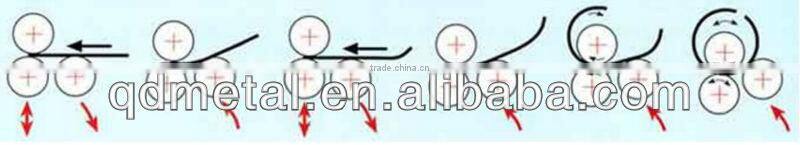

Below is a diagram showing how a plate is formed into a tube .
Why do customer choose us?
1.we use high quality cold-rolled steel plate,we have modern machine to do phosphating and acid-washing;
2.we use imported electrostatic powder coated,environmental protection,corrosion prevention,damp proof;
3.we can develop new styles per customized;
4.we are factory direct price;
