200 Ton Weighbridge/ 200t Weighing Bridge /3x22m Weighbridge

200 ton weighbridge/ 200t weighing bridge /3x22m weighbridge

Product Description

200 ton digital truck scale weighbridge

1. Max.Capacity:200ton

2. Min.Capacity:40kg

3. Platform size: 3*15m, 3*16m, 3*18m, 3*20m,3*22m, 3*24m or according to customer demand

4. Plate thickness:12mm, 14mm,16mm or according to customer demand

5. Accuracy: OIML III

6. Division: 20kg

7. Application:Weighing steel,concrete,mining,recyclying,chemical,grain etc industry

8. Advantage: We have more than 15 years manufacture experience, and excellent technical support, you have nothing to worry when use our products.

Accessories Picture

Digital Indicator:D2008 stainless steel indicator

Features

1.Support custom fill typeset and printing function

2.Isolation and anti-static design prevent load cell from device electric

3.Support E custom made dynamic encryption protocol and K protocol, improve Anti cheating capabilities

4.Support modbus instruction protocol and eight kinds of PC communication protocol

5.Use transformer to power supply

Technical parameter

1.Accuracy Grade III, n=3000

2.Error Partition Coefficient: pi=0.5

3.Division Value:1,2,5,10,20,50,100 available

4.Transmission speed:9600, 19200bps

5.Display Mode:7 bits, 0.8 inch LED digital tube, 7 status indicator

6.Serial communication interface: with standard RS232, baud rate 600-19200 to be chosen

7.Data storage: store 1000 group tare car number, the latest 1500 group weighing record, the latest 300 group imperfect weighing record

8.Indicator power  supply: the power AC110~220V, 50HZ(transformer type 220V, 50HZ)

9.Emergency auxiliary power:DC12V/7Ah free maintenance battery (random charging)

10. Exterior:320x130x230mm, Weight: about 3.6kg (transformer type:4.5kgs)

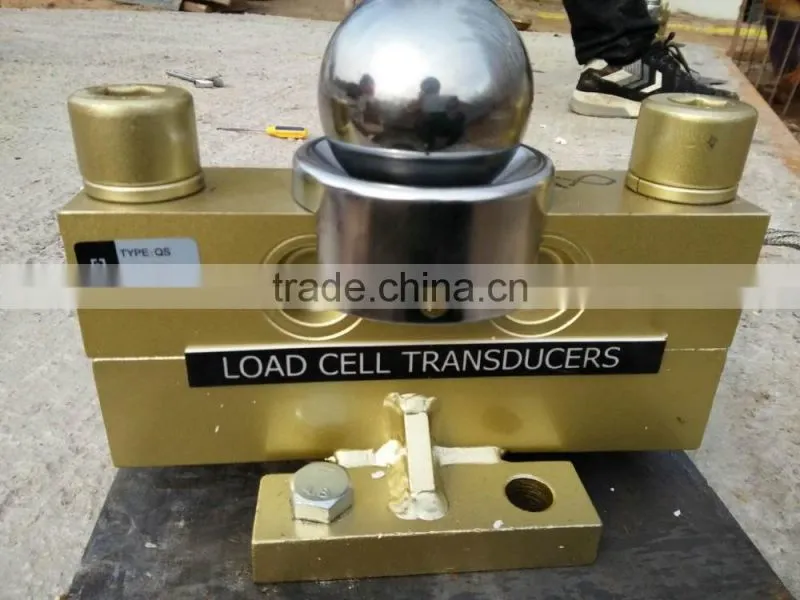

Digital Load cell: QS-30t

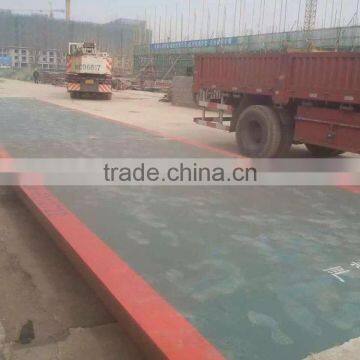

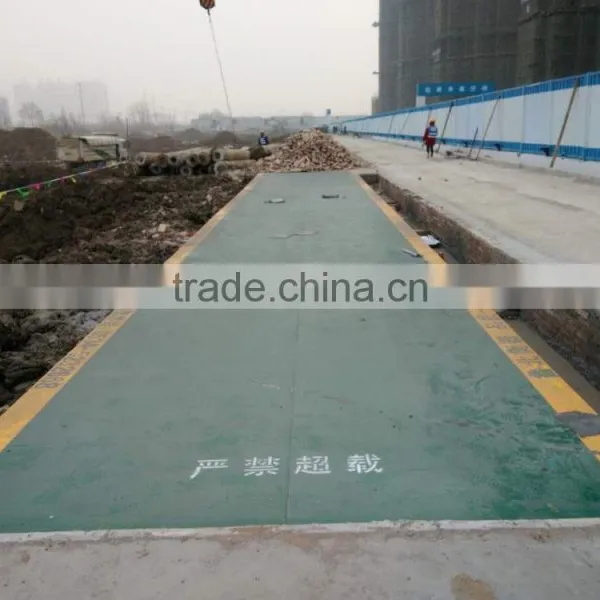

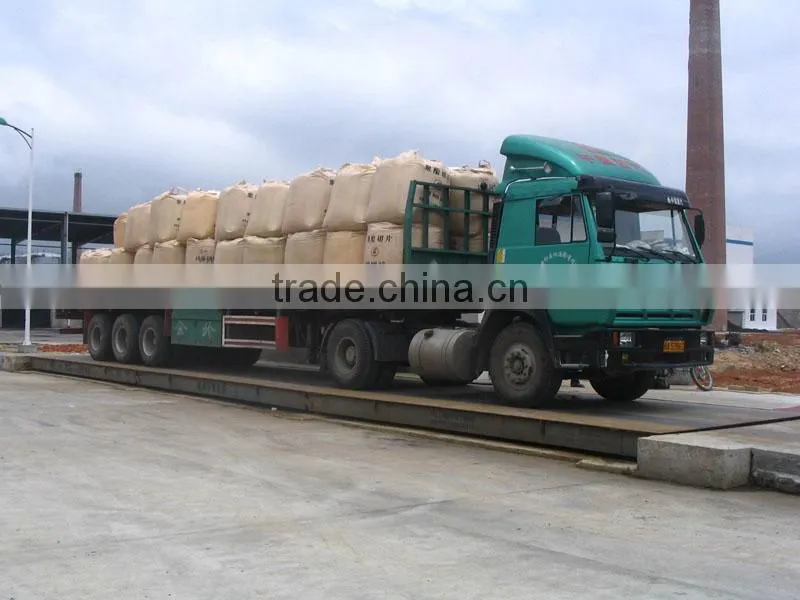

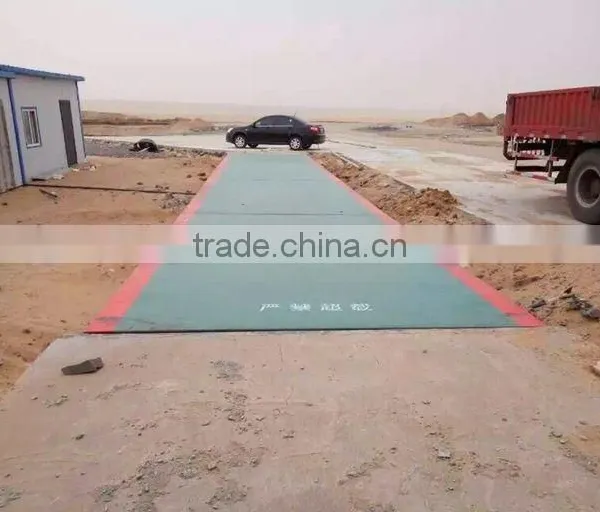

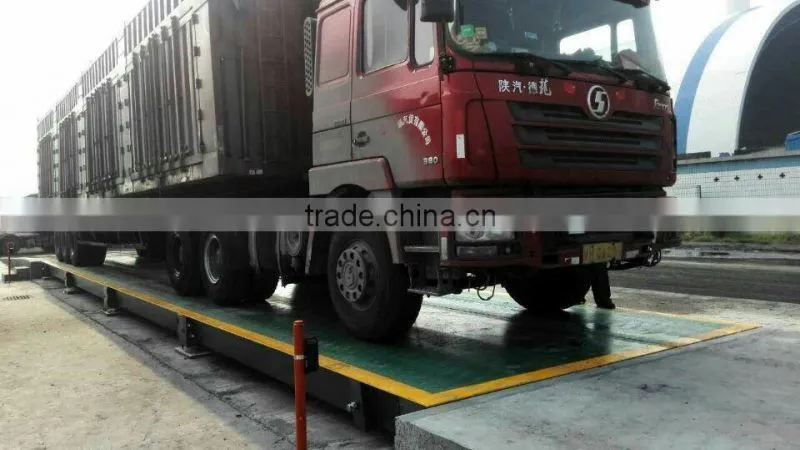

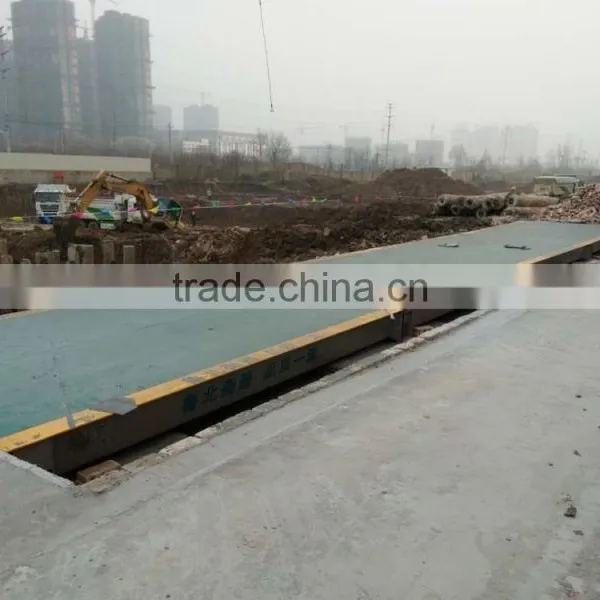

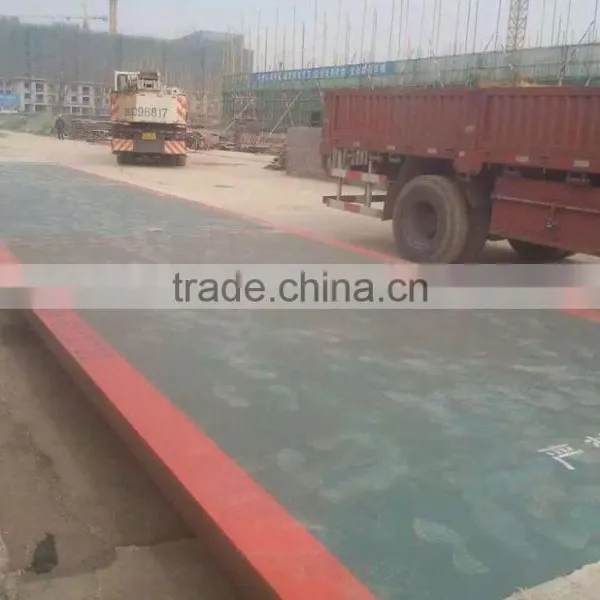

Application spot

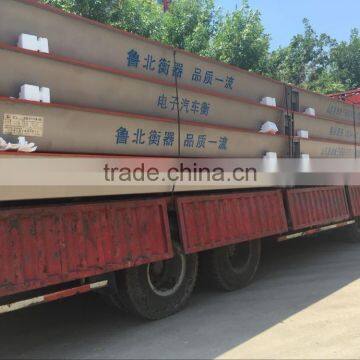

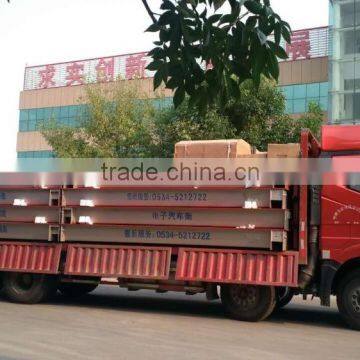

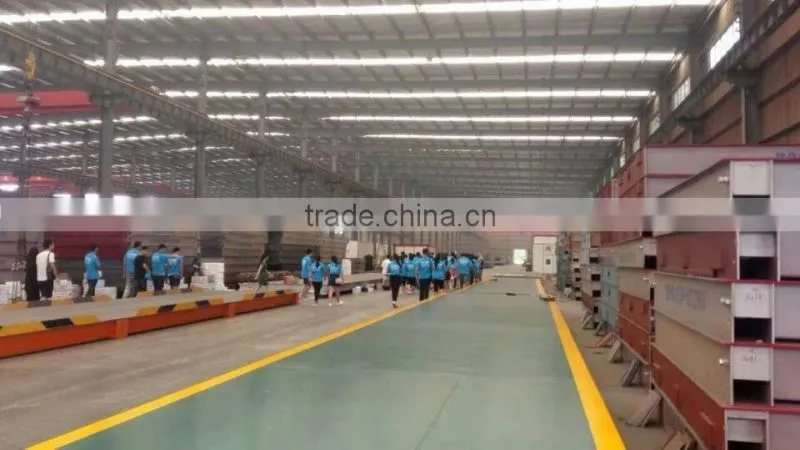

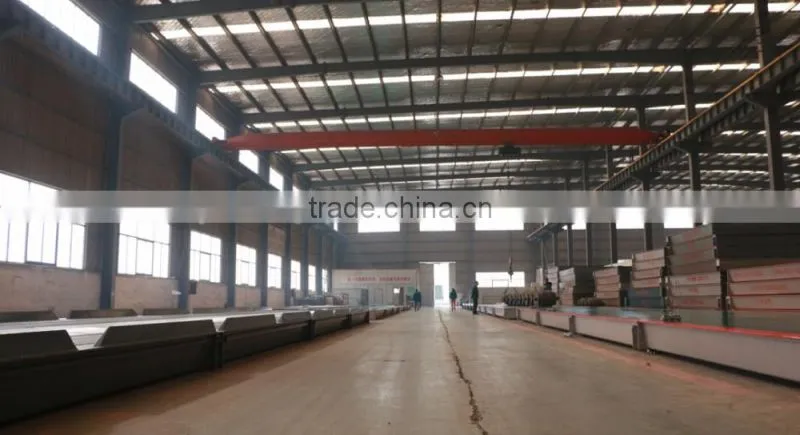

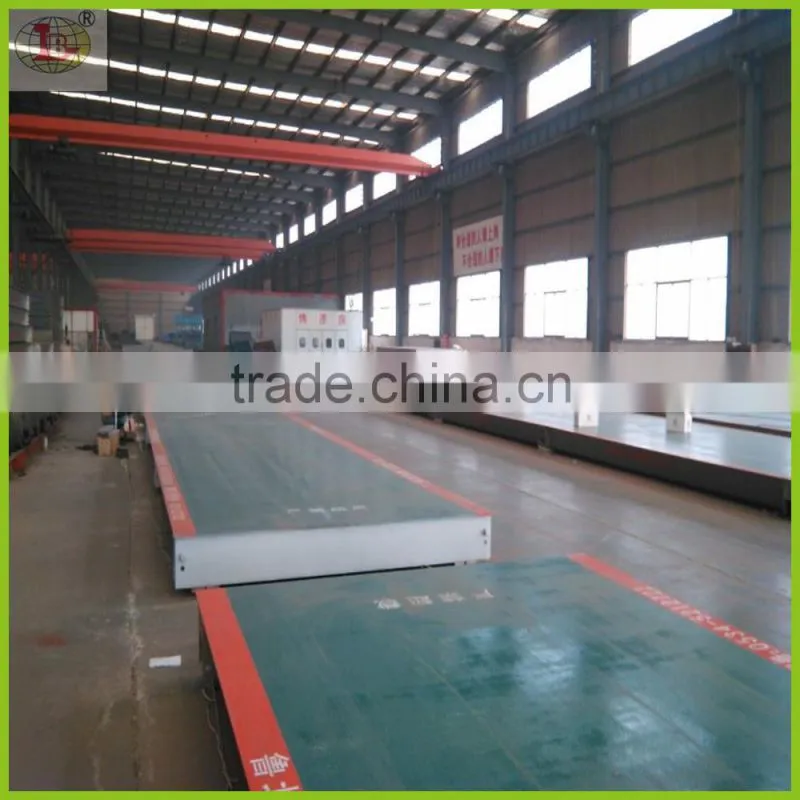

Factory Corner

FAQ:

1) What is advantage of your truck scale/weighbridge?

    Answer:The advantage of Lubei truck scale/weighbridge is designed durable and robust by input enough      steel material without bending after heavy load weighing.

2) What is warranty of your truck scale/weighbridge?

   Answer:3 years for truck scale/weighbridge platform structure,and 1 years for component part.

3) How to install scale?

   Answer:We have detail install manual and video for your scale, also we provide computer or telephone         techical support. If necessary, we also can provide technical engineer service to your company                     with round    trip ticket and accommodation and 100$ subsidy per day need pay by buyer.

4) What should I do after installation?

    Answer:You should drive a truck on scale to testing and commissioning if accuracy.

5) When we need calibrate scale?

    Answer:When you replace new indicator and new load cell,and found the big different error while                   weighing,then it need calibrate again to ensure accuracy weighing.

6) Who should I contact for service (repair, calibration)?

  Answer:You can contact through sales to feedback to Lubei technical center department to get prompt        service for repair and calibration.
