Mechanical Solid-Liquid Separation of Livestock Manure

Product Name:    Mechanical Solid-Liquid Separation of Livestock Manure

Description:

Application:      Mechanical Solid-Liquid Separation of Livestock Manure   is widely used in the separating and dehydration of the livestock manure (duck feces,chicken manure,cow dung or any other livestock's manure and so on)

Advantage:

(1)reduce the CODcr content of the following animal's manure/dung

(2)the dry content of the separated manure can reach 50%

(3)low consumption, small investment, high efficiency

(4)compact construction, main part using iron casting, principal axis and sieve using stainless steel

(5)easy operation and maintenance

(6)the separated manure can make efficient organic fertilizer which can fertilizer flowers or other special industrial crops, improve the organic material of edaphic

(7)Get extra economic benefit by selling organic fertilizer

Enjoy the many benefits advanced liquid solid separators can offer you:

• Increase your productivity
• Reduce your costs
• Operator friendly
• Easy cleaning
• Safe operation





Technique performance:

extruding screw blade: twin blades, special strenthening in case of abrading, stainless steel

sieve model: mesh number 0.5mm, 0.75mm, 1.00mm, stainless steel

handpiece: adjust the dry and wet degree according to the solid matter

drive: 380V, 50HZ, three phase, 4kw, also equiped with distribution box or other accessory

 The equipment is composed of stainless steel mesh, screw packing anger, screw blade, which are all made of high quality 304 stainless steel through special workmanship, having noncorrosive, wearproof and other advantages.

Presently our main product screw and squeeze continuous working solid-liquid separator uses sieve model  (0.5mm,0.75mm,1.0mm) to filter.

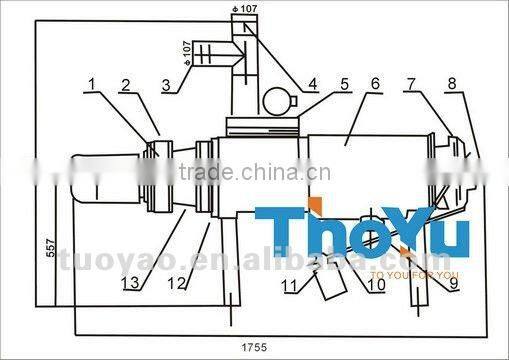

 Model&Parameter:

 Working Principle :

     Mechanical Solid-Liquid Separation of Livestock Manure  uses the assorted non-clogging submerged pump to pull the  animal's manure  water into dewater equipment , then taking packing auger to push the animal's manure water to the front part of the machine gradually, meanwhile enhance the pressure of it, forcing the water being squeezed out of the mesh under the effect of the pressing and filtering, flowing out of drain-.pipe.

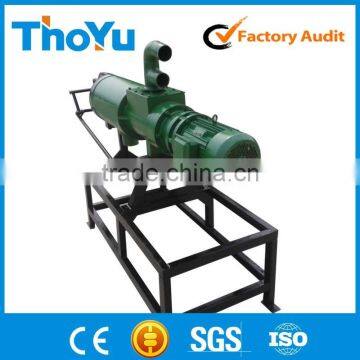

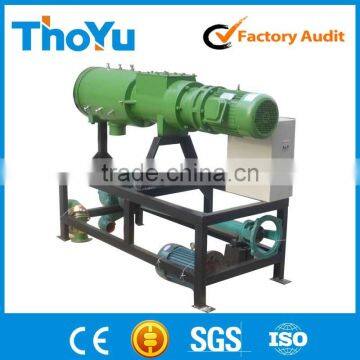

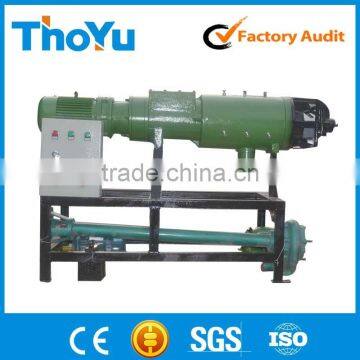

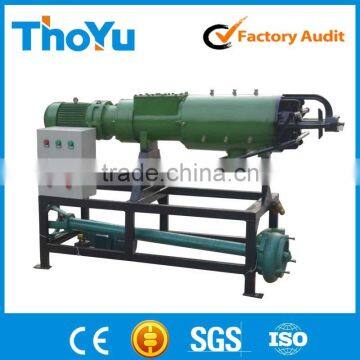

Pictures:
