Specifications
Working durable and efficiency;High harvesting rate/low broken rate;
Sinple design, easy operation.
Components of Potato Harvester---Agriculture Harvester
The Potato Harvest Machine is composed of cutting seeding organization, filed wheels, girders, excavating a shovel, transporting chains, choosing sieve.
Features of potato harvester--- Agriculture Harvester
1. The Potato Harvester can integrally complete the working procedures such as harvesting, excavating, and choosing.
2. Most important thing is the series include the middle drive transmission and the left-side drive transmission, which are totally suitable different types of tractors!
Parameters of Potato harvest machine---Agriculture Harvester
Model |
4U-1 |
4U-1A |
4UZ |
4U-2 |
4U-2A |
4U2B |
4U-3 |
Row number |
Single row |
Single row |
Single row (vibration) |
Double row |
Double row |
Double row (Set pile) |
Double row (Auto loading) |
Row spacing(cm) |
55-80 |
50-60 |
55-80 |
55-80 |
55-80 |
55-80 |
55-80 |
Productivity(mu/hr) |
3-5 |
5-8 |
8-15 |
||||
Total weight(Kg) |
180 |
100 |
160 |
500 |
700 |
800 |
1200 |
Matching power(HP) |
20-35 |
8-15(Walking tractor) |
22-25 |
50 |
50 |
50 |
70 |
Working depth(cm) |
25 |
20 |
25 |
25 |
25 |
25 |
25 |
Working width(cm) |
60 |
60 |
60 |
130 |
160 |
||
REV of power(RPM) |
560/1250 |
1000 |
560/1250 |
560 |
560 |
560 |
560 |
Dimension(cm) |
240*90*90 |
90*70*70 |
120*100*75 |
280*220*100 |
280*220*100 |
280*220*100 |
330*390*310 |
|
Packing dimension (cm) |
210*88*73 |
85*70*65 |
150*90*70 |
220*190*80 |
220*190*80 |
220*190*80 |
320*200*130 |
|
Potato-exposing rate(%) |
≥96% |
||||||
Breakage rate(%) |
≤2% |
||||||
Founction of potatos harvest machine--- Agriculture Harvester
1. Hang the harvester on the tractor which is 22-35hp.
2. Connecting the output pulley of the tractor and the input pulley of the harvester by veer belt at the same time.
3. Rolling the pulley by hands and see if it is blocked. If yes, please do be eliminating the blocks immediately.
4. Make sure the pinch roller has pressed on the belt well in case it loose during the process of elevating.
5. When operate the unequipped machine, please be stable and smooth.
6. Before starting to work, adjusting the height of the round to assure the digging height to be 10-15cm.

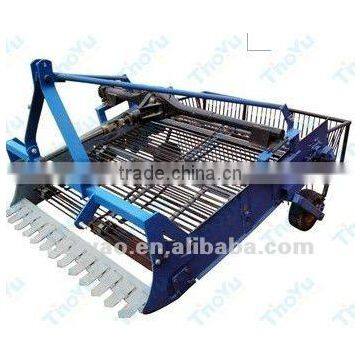

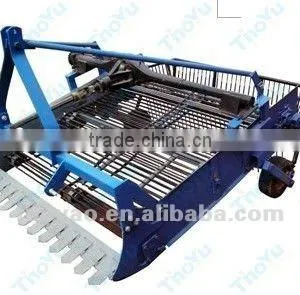

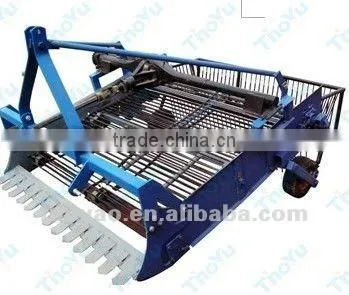

Photos of potatos harvest machine--- Agriculture Harvester
After-sales Service:
All products purchased in our company are guaranteed to keep in good repair for one year.
If quality problems happen in guarantee period, our company will maintain for free.
Additionally, our company provides technical support and fittings for life. After-sales service
isn't restricted by time and we will solve your problems in time. If you are caught in some problems
when using our products, welcome to contact us at any time.
