tire threading machine

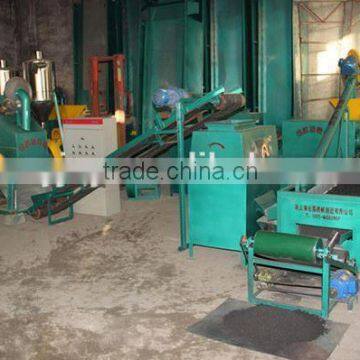

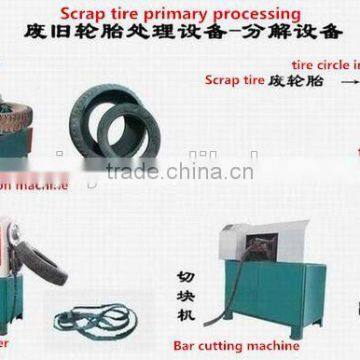

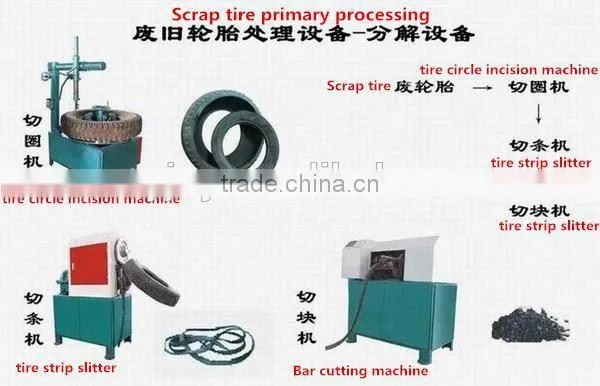

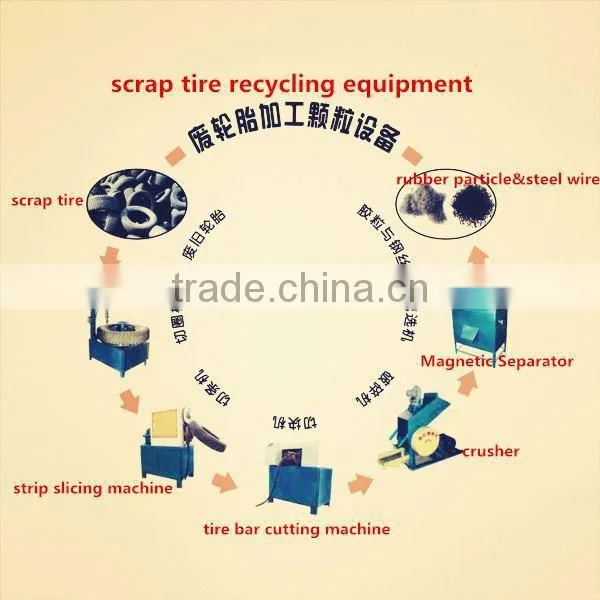

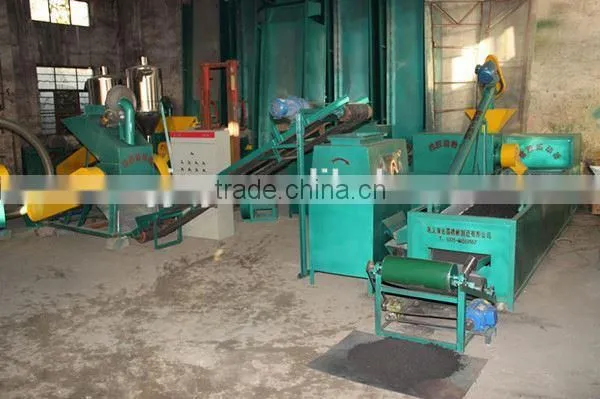

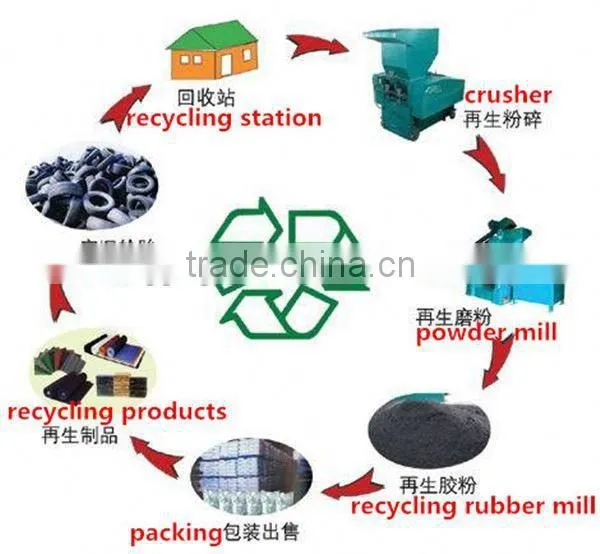

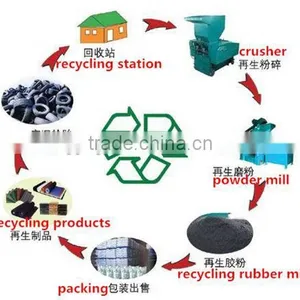

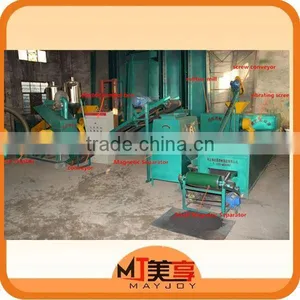

Process flows: waste tires--- circle cutting--- strip cutting--- slicing cutting--- magnetic separating--- separation—packaging—put in storage.
1. Ring cutter
Function: Cut the whole tire tread, sidewall and the inner ring.
Electric power | Processing tire model | Processing capacity | Dimension(mm) | weight |
4KW | 750-1200 tire | 25-30pices/h | 1150*850*1200 | 0.5t |
2. Strips cutter
Function: All kinds of tires, plastic, rubber blanket cut into bars
Electric motor | capacity | Output size | Machine dimension (mm) | weight |
5.5KW | 0.8-1ton/h | 35*35*35mm | 780*550*1210 | 0.6ton |
3. Rim cutter
Function: The machine should be, and supporting the use of tire cutting machine, used to cut strips of plastic blocks 3-5CM
Motor power | capacity | Output size | dimension | weight |
7.5KW | 0.8-1ton/h | 35*35*35mm | 780*550*1210mm | 0.6ton |
4. Steel wire separator
Function: Mouth parts of the tire can circle the effective separation of crude steel and rubber
Model | MJXY -60B |
Roller effective length(mm) | 600 |
Working diameter roller(mm) | 320 |
Maximum magnetic induction (GS) | 3000 |
Cylinders Nos(pcs) | 1 |
Roller rotary speed(rpm) | 66,47,33 |
Produce rate(t/h) | 0.5-1.5 |
selected material size(mm) | 0.05-2.00 |
Motor type and power(kw) | Y801-4 0.75 |
Maximum outline size(mm) | 860×550×900 |
Total weight about (t) | 0.25 |
voltage(v) | 380 |
Fore more information, please do not hesitate to contact us.
