machine to grind tire

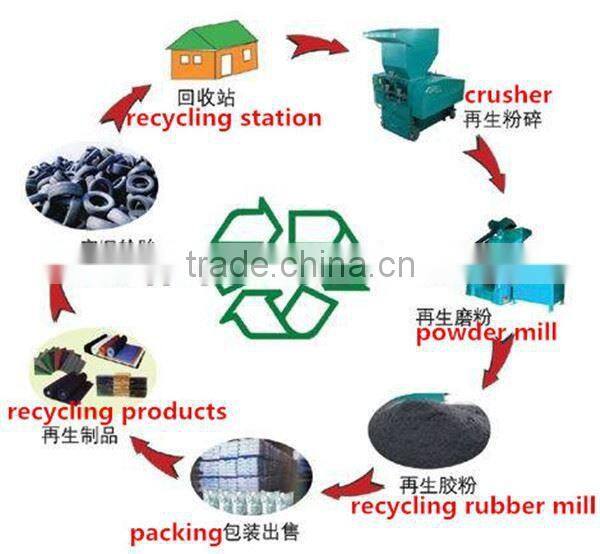

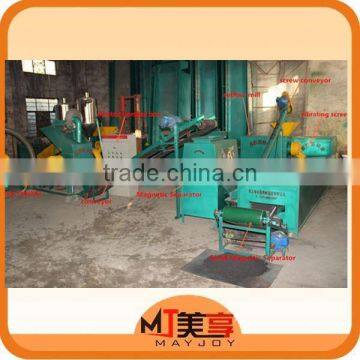

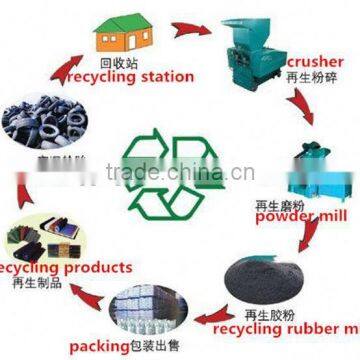

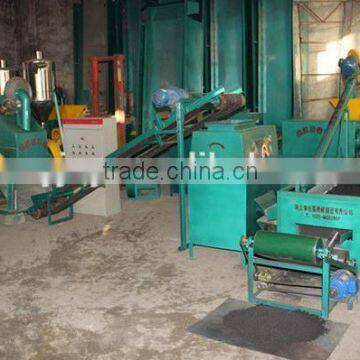

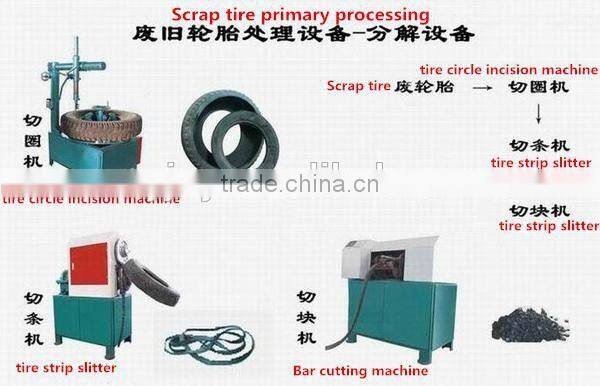

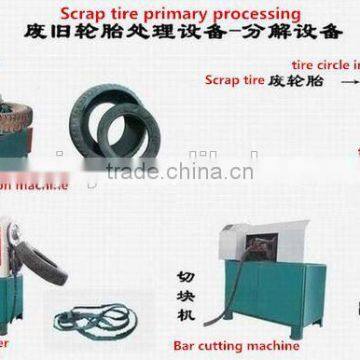

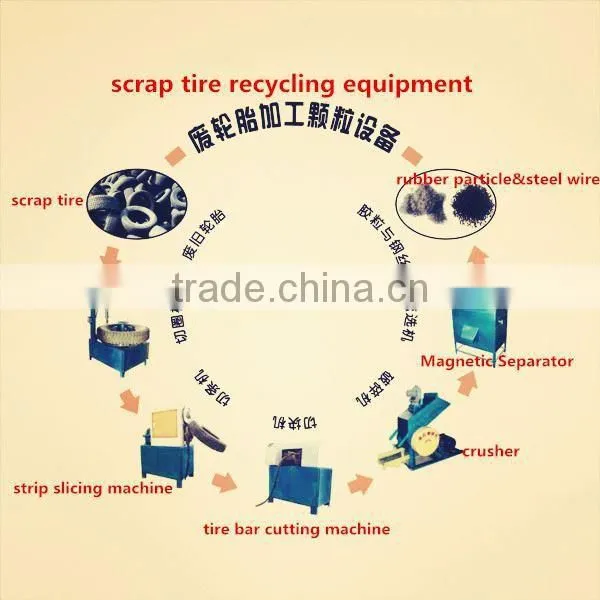

Process flows: waste tires--- circle cutting--- strip cutting--- slicing cutting--- magnetic separating--- separation—packaging—put in storage.

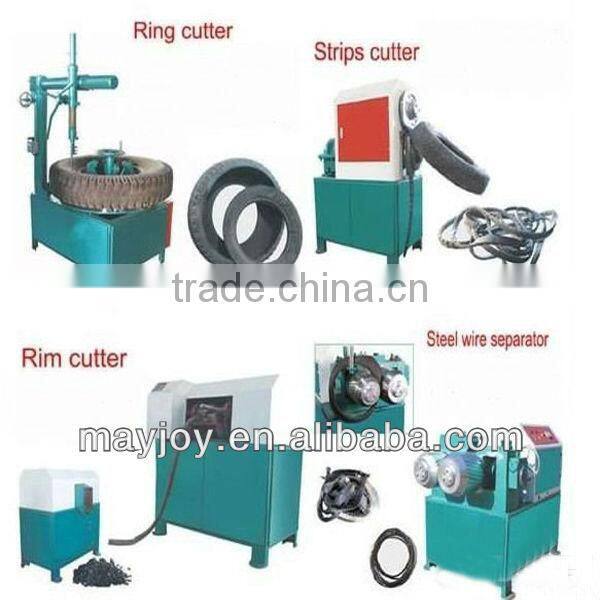

1. Ring cutter
Function: Cut the whole tire tread, sidewall and the inner ring.
Electric power |
Processing tire model |
Processing capacity |
Dimension(mm) |
weight |
4KW |
750-1200 tire |
25-30pices/h |
1150*850*1200 |
0.5t |
2. Strips cutter
Function: All kinds of tires, plastic, rubber blanket cut into bars
Electric motor |
capacity |
Output size |
Machine dimension (mm) |
weight |
5.5KW |
0.8-1ton/h |
35*35*35mm |
780*550*1210 |
0.6ton |
3. Rim cutter
Function: The machine should be, and supporting the use of tire cutting machine, used to cut strips of plastic blocks 3-5CM
Motor power |
capacity |
Output size |
dimension |
weight |
7.5KW |
0.8-1ton/h |
35*35*35mm |
780*550*1210mm |
0.6ton |
4. Steel wire separator
Function: Mouth parts of the tire can circle the effective separation of crude steel and rubber
Model |
MJXY -60B |
Roller effective length(mm) |
600 |
Working diameter roller(mm) |
320 |
Maximum magnetic induction (GS) |
3000 |
Cylinders Nos(pcs) |
1 |
Roller rotary speed(rpm) |
66,47,33 |
Produce rate(t/h) |
0.5-1.5 |
selected material size(mm) |
0.05-2.00 |
Motor type and power(kw) |
Y801-4 0.75 |
Maximum outline size(mm) |
860×550×900 |
Total weight about (t) |
0.25 |
voltage(v) |
380 |
Fore more information, please do not hesitate to contact us.
