Home > Products > Feed/Pellet Machinery > Extruder floating/sinking mini fish feed pellet machine

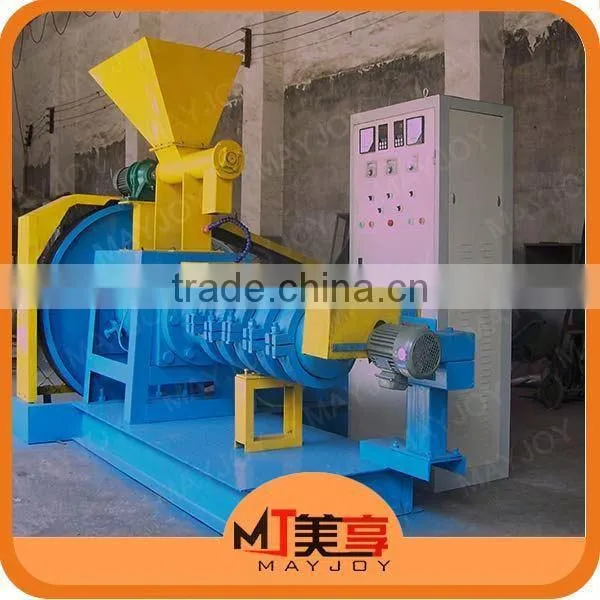

Extruder floating/sinking mini fish feed pellet machine
- 500 Set / Sets per Month
- Every port in China is OK
- T/T Credit Card PayPal
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | MAYJOY |
Model Number: | DGP60-C | Type: | Feed Pellet Machine | Voltage: | 380V |
Power(W): | 90kw | Dimension(L*W*H): | 2900*2650*1800 | Weight: | 3800 kg |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Extruder floating/sinking mini fish feed pellet machine
Introduction of mini fish feed pellet machine
1. International advanced cutting technology, the use of soft cutting forms, achieving stepless, anywhere out of the material can be cut into the required length of the product, is not easy to have a Burr.
2. Innovative design, unique, simple structure, easy to install easy unloading easy to dismantle, easy operation.
3. This mini fish feed pellet machine Screw and threaded with special wear-resistant, heat-resistant alloy steel material and heat treatment, and has the advantages of wear resistance and long service life.
4. Within the unique Turbo-die device, floating fish feed pellet machine ensure that the forage yield and quality and fitted with electric heating devices, improve feed extrusion rate.
5. The series three-phase Motors main motor adopts high quality; ensure that the power is strong.
6. Variable-speed feeding device, easy operation, floating fish feed pellet machine feeding evenly to prevent machine being blocked.
7. Mould replacement is simple, requires a different aperture feed, you need to replace the aperture required for mold.
8. Materials under high temperature and high pressure effective in killing Escherichia coli. Harmful bacteria such as salmonella, ensuring feed health. easy absorption of fish and poultry. General puffed fish feed than powder and granule feed saving 8%--15%.
Materials under high temperature and high pressure effective in killing Escherichia coli. Harmful bacteria such as salmonella, ensuring feed health. easy absorption of fish and poultry. General puffed fish feed than powder and granule feed saving 8%--15%.
Technical parameters for mini fish feed pellet machine
Model | Capacity t/h | Main power kw | Feeder power kw | Diameter of screw mm | Cutting power kw |
DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 |
DGP70-B | 0.18-0.25 | 18.5 | 0.4 | φ70 | 0.4-0.75 |
DGP80-B | 0.3-0.35 | 22/27 | 0.4 | φ80 | 1.5 |
DGP90-B | 0.4-0.45 | 30/37 | 1.1 | φ90 | 1.5 |
DGP120-B | 0.5-0.7 | 55 | 1.1 | φ120 | 2.2 |
DGP135-B | 0.8-1.0 | 75 | 1.1 | φ133 | 2.2 |
DGP160-B | 1.2-1.5 | 90 | 1.5 | φ155 | 2.2 |
DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0 |
Note: Dry way.
Model | Capacity(t/h) | Main power kw | Feeder power kw | Dia of screw mm | Cutting power kw | Conditioning power kw | |
| Biomass pellet | ||||||
DSP60-III |
| 0.25-0.3 | 15 | 0.37 | 60 | 0.75 | 0.37 |
DSP70-III |
| 0.35-0.45 | 18.5 | 0.75 | 70 | 0.75 | 1.5 |
DSP80-III |
| 0.55-0.65 | 22-30 | 0.75 | 80 | 0.75 | 1.5 |
DSP90-III |
| 0.75-0.85 | 37 | 1.1 | 90 | 1.1 | 2.2 |
DSP120-III |
| 1.1-1.3 | 55 | 1.1 | 120 | 1.1 | 2.2 |
DSP135-III |
| 2.0-2.5 | 75 | 1.5 | 135 | 2.2 | 2.2 |
DSP160-III |
| 2.5-4.0 | 90 | 2.2 | 155 | 2.2 | 3.5 |
DSP200-III |
| 4.0-5.0 | 132 | 2.2 | 195 | 3.0 | 4.5 |
Note: Wet way(Must equipped with steam boiler).
More pictures for mini fish feed pellet machine
Final feed pellet
This mini fish feed pellet machine can make animal feed pellet after change the die.
If you interested in mini fish feed pellet machine, feel free to contact me,
