Extruder floating/sinking fish feed pellets maker
- Every port in China is OK
- T/T Credit Card PayPal
You May Like
-
Extruder floating/sinking floating fish feed pellet product line
-
Extruder floating/sinking small floating fish feed pellet mill
-
Extruder floating/sinking ring die fish feed pellet mill
-
Extruder floating/sinking fish feed pellet production line
-
Extruder floating/sinking fish feed pellet maker machine
-
Extruder floating/sinking single screw floating fish feed pellet machine
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | MAYJOY | Model Number | DGP60-C | |
| Type | Feed Pellet Machine | Voltage | 380V | |
| Power(W) | 90kw | Dimension(L*W*H) | 2900*2650*1800 | |
| Weight | 3800 kg | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

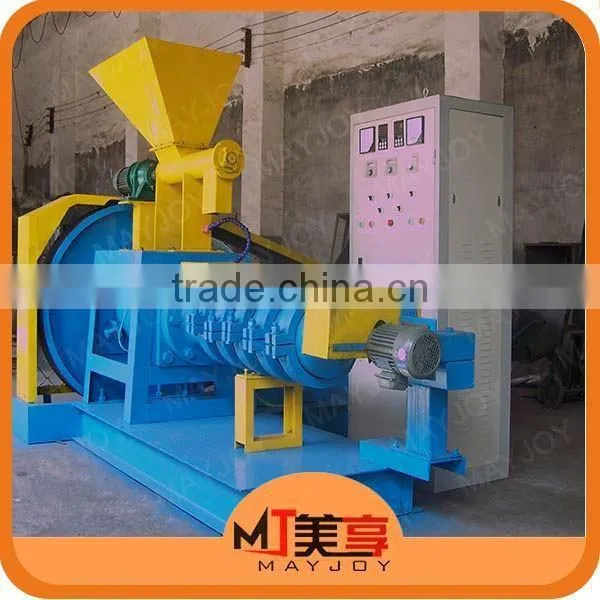

Extruder floating/sinking fish feed pellets maker
Introduction of fish feed pellets maker
1. International advanced cutting technology, the use of soft cutting forms, achieving stepless, anywhere out of the material can be cut into the required length of the product, is not easy to have a Burr.
2. Innovative design, unique, simple structure, easy to install easy unloading easy to dismantle, easy operation.
3. This fish feed pellets maker Screw and threaded with special wear-resistant, heat-resistant alloy steel material and heat treatment, and has the advantages of wear resistance and long service life.
4. Within the unique Turbo-die device, floating fish feed pellet machine ensure that the forage yield and quality and fitted with electric heating devices, improve feed extrusion rate.
5. The series three-phase Motors main motor adopts high quality; ensure that the power is strong.
6. Variable-speed feeding device, easy operation, floating fish feed pellet machine feeding evenly to prevent machine being blocked.
7. Mould replacement is simple, requires a different aperture feed, you need to replace the aperture required for mold.
8. Materials under high temperature and high pressure effective in killing Escherichia coli. Harmful bacteria such as salmonella, ensuring feed health. easy absorption of fish and poultry. General puffed fish feed than powder and granule feed saving 8%--15%.
Materials under high temperature and high pressure effective in killing Escherichia coli. Harmful bacteria such as salmonella, ensuring feed health. easy absorption of fish and poultry. General puffed fish feed than powder and granule feed saving 8%--15%.
Technical parameters for fish feed pellets maker
Model | Capacity t/h | Main power kw | Feeder power kw | Diameter of screw mm | Cutting power kw |
DGP60-C | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 |
DGP70-B | 0.18-0.25 | 18.5 | 0.4 | φ70 | 0.4-0.75 |
DGP80-B | 0.3-0.35 | 22/27 | 0.4 | φ80 | 1.5 |
DGP90-B | 0.4-0.45 | 30/37 | 1.1 | φ90 | 1.5 |
DGP120-B | 0.5-0.7 | 55 | 1.1 | φ120 | 2.2 |
DGP135-B | 0.8-1.0 | 75 | 1.1 | φ133 | 2.2 |
DGP160-B | 1.2-1.5 | 90 | 1.5 | φ155 | 2.2 |
DGP200-B | 1.8-2.0 | 132 | 1.5 | φ195 | 3.0 |
Note: Dry way.
Model | Capacity(t/h) | Main power kw | Feeder power kw | Dia of screw mm | Cutting power kw | Conditioning power kw | |
| Biomass pellet | ||||||
DSP60-III |
| 0.25-0.3 | 15 | 0.37 | 60 | 0.75 | 0.37 |
DSP70-III |
| 0.35-0.45 | 18.5 | 0.75 | 70 | 0.75 | 1.5 |
DSP80-III |
| 0.55-0.65 | 22-30 | 0.75 | 80 | 0.75 | 1.5 |
DSP90-III |
| 0.75-0.85 | 37 | 1.1 | 90 | 1.1 | 2.2 |
DSP120-III |
| 1.1-1.3 | 55 | 1.1 | 120 | 1.1 | 2.2 |
DSP135-III |
| 2.0-2.5 | 75 | 1.5 | 135 | 2.2 | 2.2 |
DSP160-III |
| 2.5-4.0 | 90 | 2.2 | 155 | 2.2 | 3.5 |
DSP200-III |
| 4.0-5.0 | 132 | 2.2 | 195 | 3.0 | 4.5 |
Note: Wet way(Must equipped with steam boiler).
More pictures for fish feed pellets maker
Final feed pellet
This fish feed pellets maker can make animal feed pellet after change the die.
If you interested in fish feed pellets maker, feel free to contact me,
