Steel Grating
Anping Hepeng Hardware Netting Co.,Ltd
1.Company Information
Established: 1983
Area: 20000 square meter
Staff: 256
Sales Amount: 36700000 USD in 2012
Main Export Market: Poland, Russia, Canada, French, England, Hungary, Australia, New Zealand, Ukraine,
The USA, Mexico, The South Africa, and the South American, etc.
Main Products: Wire mesh fence, temporary fence, crowd control barrier, garden fence, 358 fence, fence post
2.Factory Show
3.Product Description
Material
carbon steel or stainless steel
Surface Treatment
there are three types:hot-dipped galvanized ,electro-galvanized and spraying brushing and soaking.anti-acid and alkali corrosion capacity the range PH6 to PH12.5,a stable protective film will be formed on the
zinc surface.it has good anti-corrosive property.
Application
Steel grating used in flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover
drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms
trolley channel, heavy loading area, boiler equipment and heavy equipment area, office buildings, apartments
train stations,department stores, hospitals.
4.Productive Process
5.Specification
(1)The shape of bearing bar: Plain type (may be omitted in the symbol of steel grating)
Serrated type and I-Shape type.

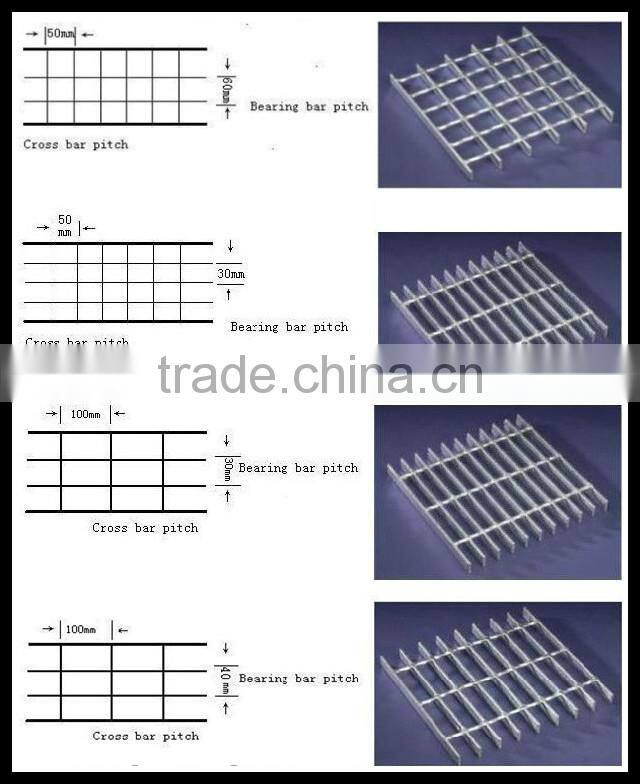

(2) Bearing bar pitches can be 12.5, 15, 20, 30, 30.16, 32.5, 34.3, 40, 60mm, of which 30mm & 40mmare recommended.
(3) Cross bar pitches can be 38, 50, 60,100mm, of which 50mm & 100mm are recommended.

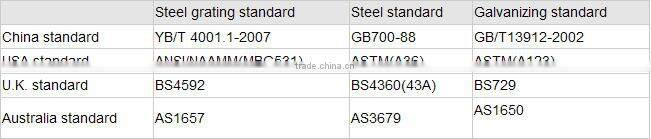

6.Standards of hot dip galvanized steel grating

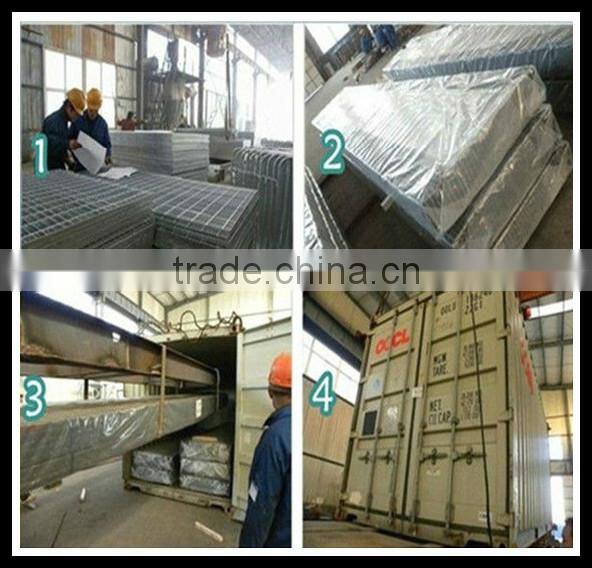

7.Packing
normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides.
there are four or six pieces of M10 long bolt penetrading the gratings and screwing together.it is suitable
for loading and unloading by fork-lift and crane.
