Specifications
perforated metal sheetThickness:0.2mm-10mm
Hole diameter:0.3mm-10mm
Hole distance:1mm-15mm
Length/Width:2m-20m/1m-2.5m

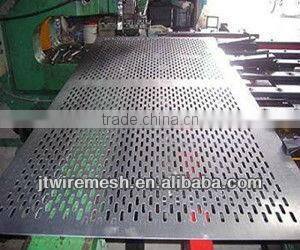

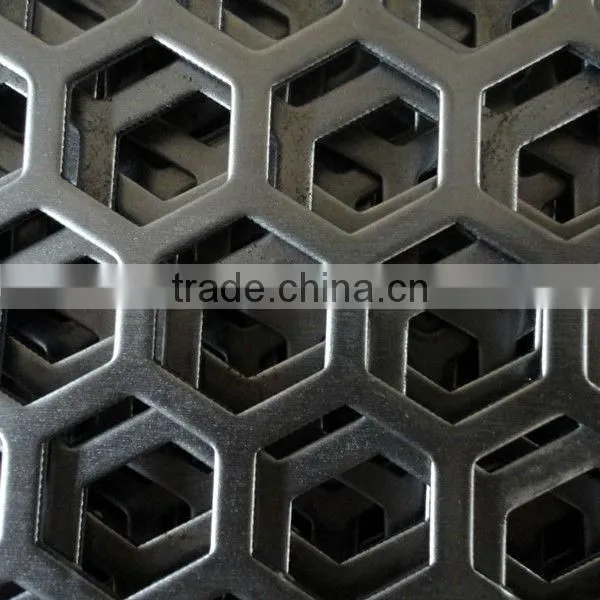

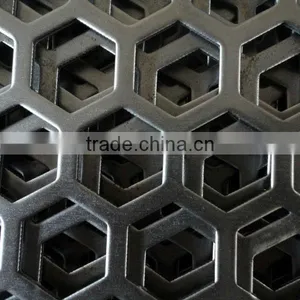

Flexible perforated metal sheet /hexagonal perforated sheets (factory)
Specification:
Material: Stainless steel plate, low carbon steel plate, galvanized steel plate, aluminium plate.
Plate thickness: 0.1mm-10.0mm
Hole diameter: 0.5mm-100mm
Hole shape: Square, round, rectangular, triangle, diamond, hexagonal, flower,etc.
Width/length: 1mX2m, 1.22mX2.44m, 1.22mX2.5m, etc.
Package: normally packed by wooden pallet.
Specifications table of perforated metal sheet:
|
Plate Material |
Thickness of Metal (mm) |
Hole Dia. (mm) |
Pitch (mm) |
Sheet Width (m) |
Sheet Length (m) |
Porosity (%) |
Weight (kg/m2) |
|
Rolling plate |
0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 | |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 | |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 | |
| Flat plate | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.67 | 3.411 | |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26.03 | 3.268 | |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 0.8 | 2.0 | 3.4 | 1 | 2 | 30.78 | 4.465 | |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 | |
| 1.5 | 5.0 | 8.0 | 1 | 2 | 35.39 | 7.843 | |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 | |
|
Stainless steel plate |
0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 | |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 | |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 | |
|
Aluminum plate |
0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 | |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 | |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Remind: we can produce the perforated metal mesh/punching hole mesh according your require.

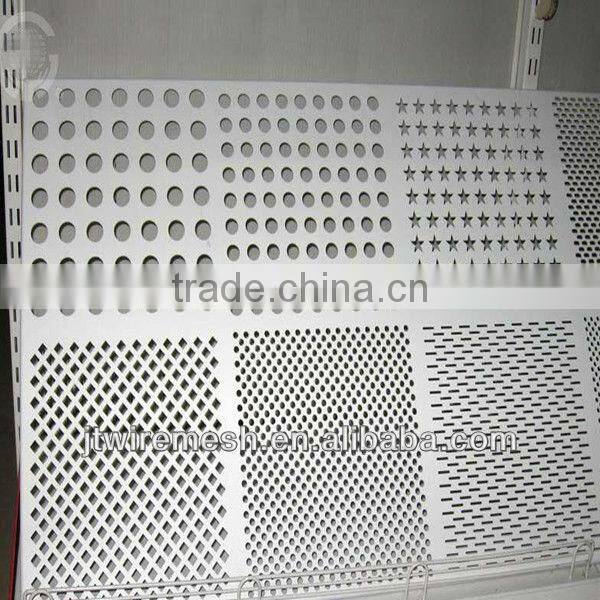

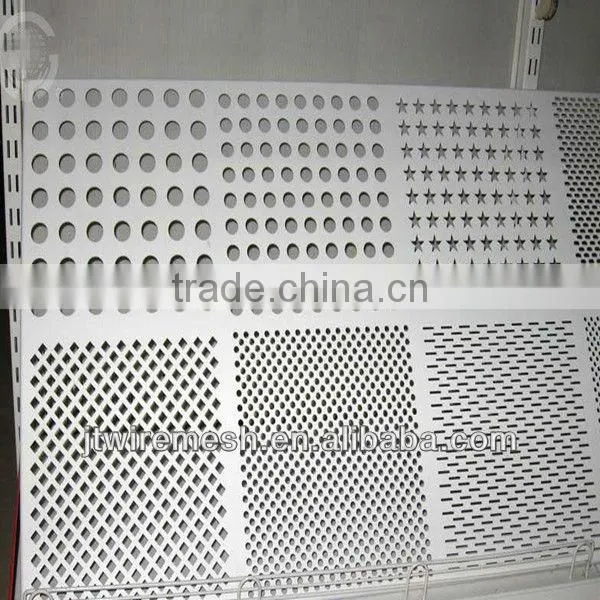

The hole shape:
The application of perforated metal sheet

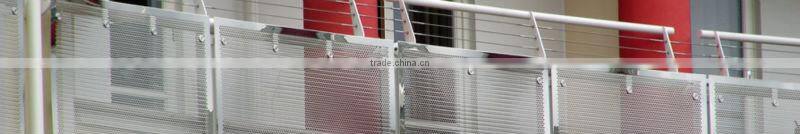

Balustrades/ Perforated panels for balustrades, brise soleil, internal & external cladding.

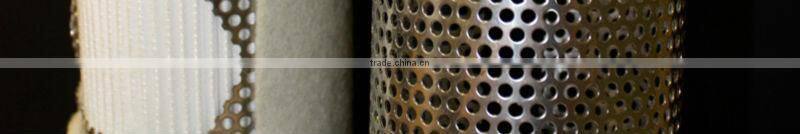

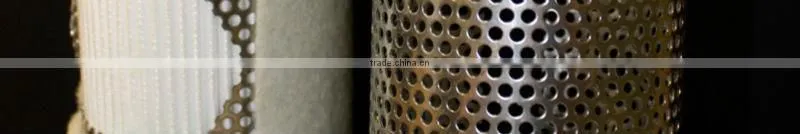

Filtration/ Separation of liquids, solids, air and gases through perforated holes.
Security/ Window guards, shutters, fencing, glass, gates and machinery guards.

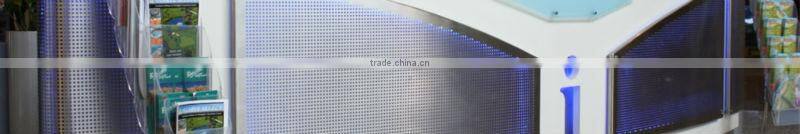

Point of sale/ Racking, shelving and counter displays.

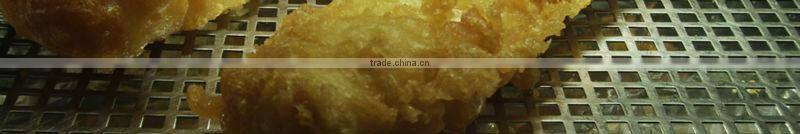

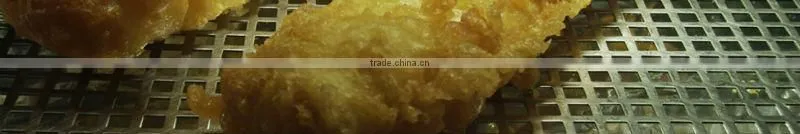

Catering/ Perforated Stainless Steel used in the catering industry.
Sound attenuation/ Acoustic enclosures, floors, walls and ceilings.
