common banded endssteel grating heavy duty mesh steel grating industrial floor grating

FOB Price

USD $2 - $5 / Square Meter

100 Square Meters(Min.Order)

Port Tianjin
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard	AISI, ASTM, BS, DIN, GB, JIS	Grade	low carbon steel
Dimensions	Customers' Requirement	Place of Origin	Hebei, China
Brand Name	JT	Model Number	Q235
Type	Heavy	Application	Steel Walkway And Floor

Product Description

common banded endssteel grating heavy duty mesh steel grating industrial floor grating

Product Description

stainless steel floor grating

1. Breif introduction industrial floor grating

Bar grating, Steel grating,steel grating plate, Expanded metal grating is specially designed with a good percentage of open gaps,and suitable for use in areas requiring good ventilation and emission of light. Its installation is easy and simple, and hence time saving. As the grating is easily cut according to required specifications, that makes the field work simple and quick.

2. Manufacturing process industrial floor grating

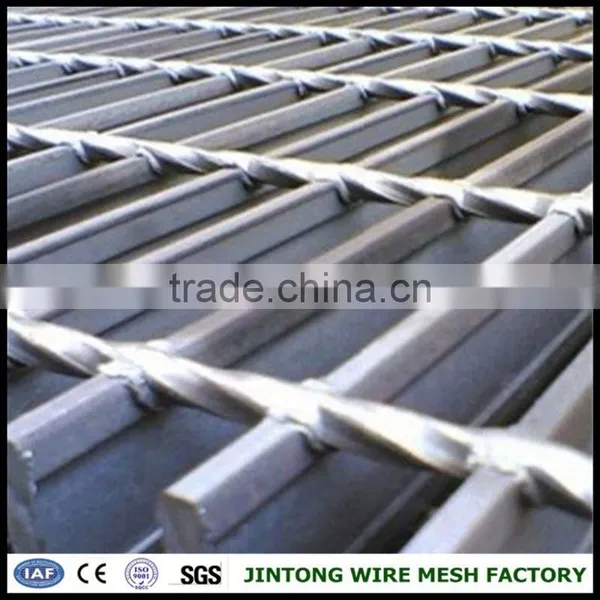

Steel Grating is made by the world first-class Italian ORSOGRIL equipment, which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance. Cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer. So we can produce high quality gratings with firm welding, smooth surface and high strengt.

3. Specifications description of industrial floor grating

stainless steel floor grating

4. Popular specifications for your reference:

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS
8	Application	-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .

3. Types of steel grating

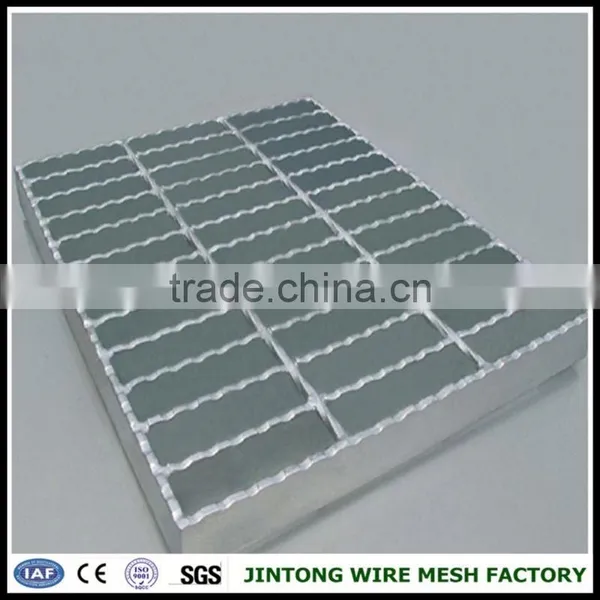

Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating.

stainless steel floor grating

4.Pictures of steel grating

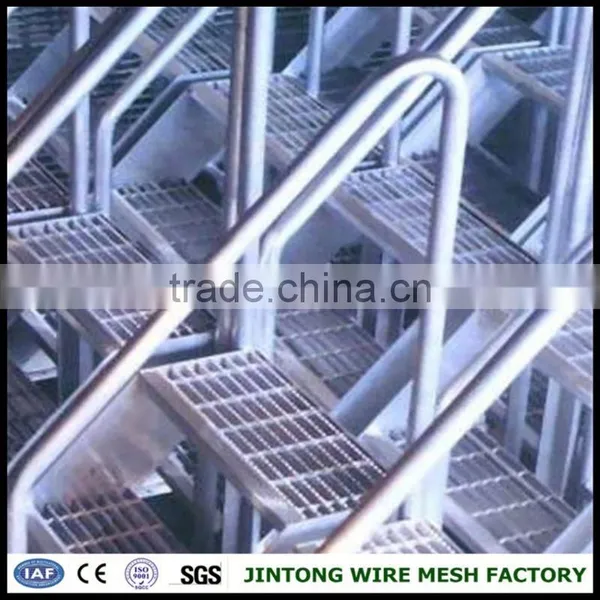

5. Steel grating application

stainless steel floor grating

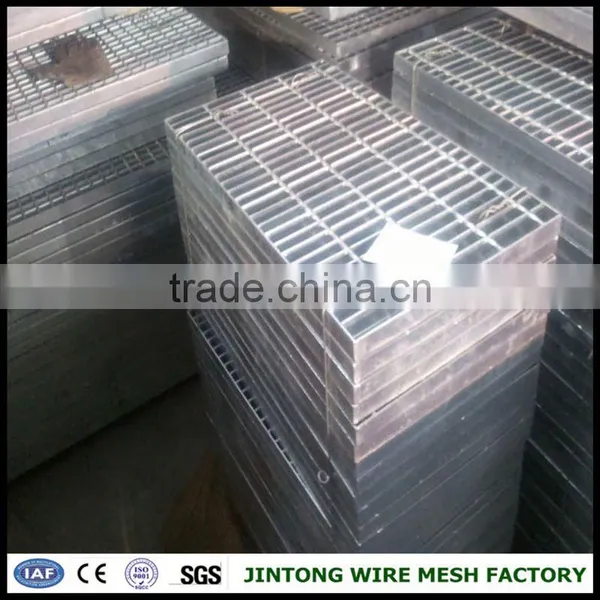

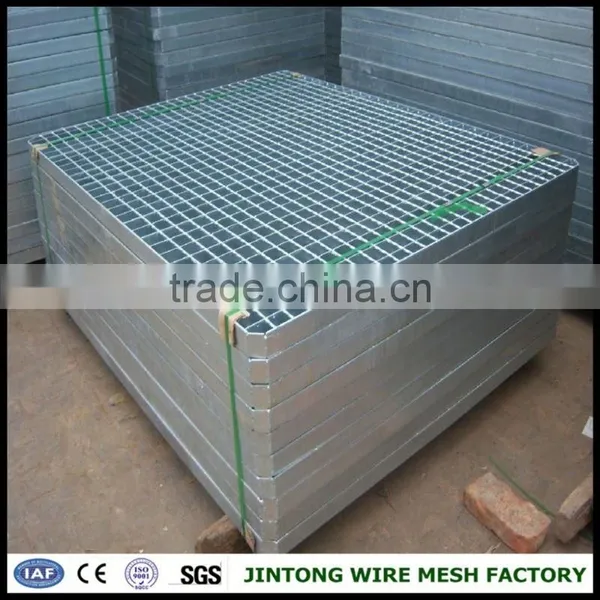

Packaging & Shipping

FAQ

1. Q: Do you provide samples?

A: Yes, we can provide samples for your approval.

2. Q: Can I get some discount?

A: different discount are available for different order quantity.

3. Q: How about delivery time?

A: 1 week for our own design. 15-25days for customized model.

4.Q: What is the payment terms ?

A: T/T, L/C, Western Union all is OK.

30% by T/T in advance , the balance paid before shipping at factory.

5. Q:What is your available port of shipment?

A: TianJin QingDao ShangHai

6. Q: Does your factory supply customized design?

A: OEM and ODM: changing on design , color , Size is acceptable.

7. Q: How can I know the completion of my order?

A: Deposit payment---start production---book shipment---inform customer---load container--- balance payment---send documents
