matting foot grilles steel grates for sale steel gratings standard weight

FOB Price

USD $2 - $5 / Square Meter

100 Square Meters(Min.Order)

Supply Ability 300 Ton / Tons per Month
Port Tianjin
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Standard:	AISI, ASTM, BS, DIN, GB, JIS	Grade:	low carbon steel	Dimensions:	Customers' Requirement
Place of Origin:	Hebei, China	Brand Name:	JT	Model Number:	Q235
Type:	Heavy	Application:	Steel Walkway And Floor

Product Description

matting foot grilles steel grates for sale steel gratings standard weight

Product Description

stainless steel floor grating

1. Breif introduction steel gratings standard weight

Bar grating, Steel grating,steel grating plate, Expanded metal grating is specially designed with a good percentage of open gaps,and suitable for use in areas requiring good ventilation and emission of light. Its installation is easy and simple, and hence time saving. As the grating is easily cut according to required specifications, that makes the field work simple and quick.

2. Manufacturing process steel gratings standard weight

Steel Grating is made by the world first-class Italian ORSOGRIL equipment, which can arrange the bearing bar and cross bar in longitude and latitude order to certain distance. Cross bar is pressed into the bearing bar by high tension resistance weldingring which is controlled by computer. So we can produce high quality gratings with firm welding, smooth surface and high strengt.

3. Specifications description of steel gratings standard weight

stainless steel floor grating

4. Popular specifications for your reference:

No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS
8	Application	-Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; -Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; -Platforms for oil extraction sites, car washing sites and air towers; -Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength .

3. Types of steel grating

Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating.

stainless steel floor grating

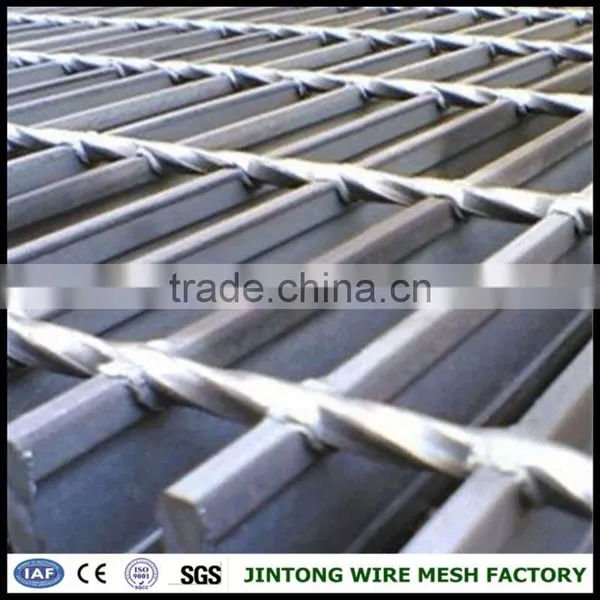

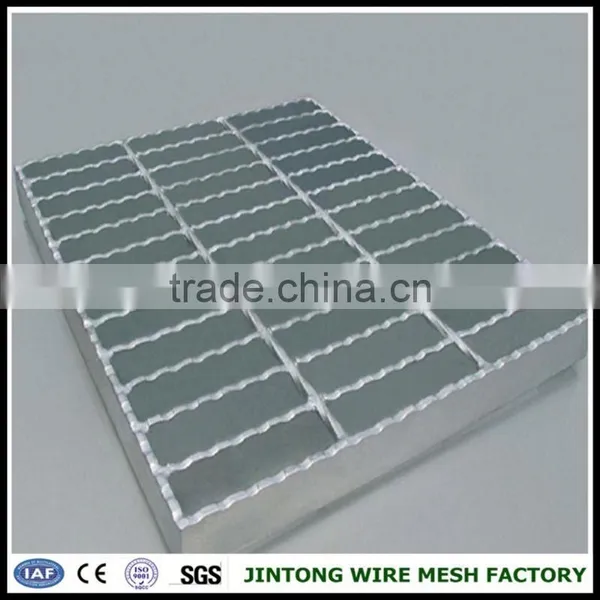

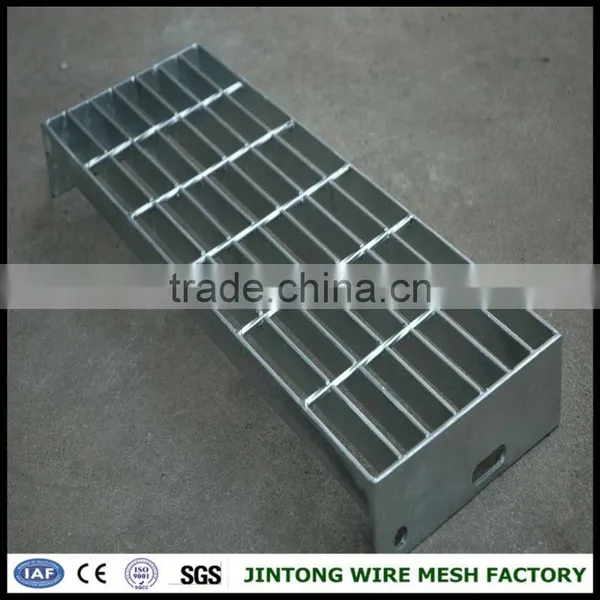

4.Pictures of steel grating

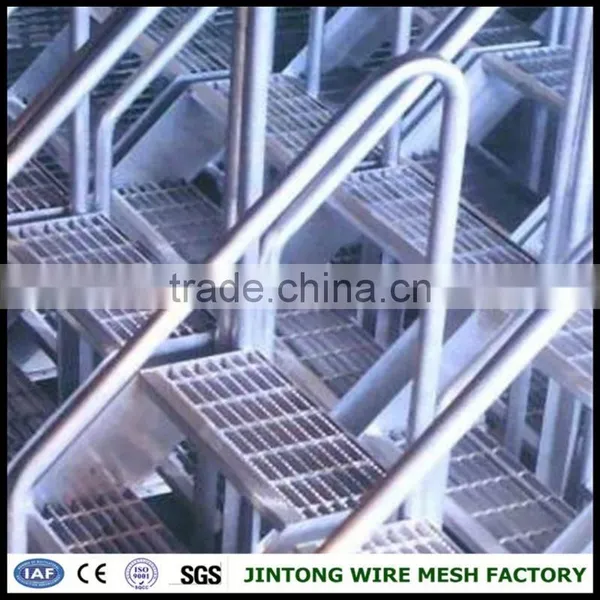

5. Steel grating application

stainless steel floor grating

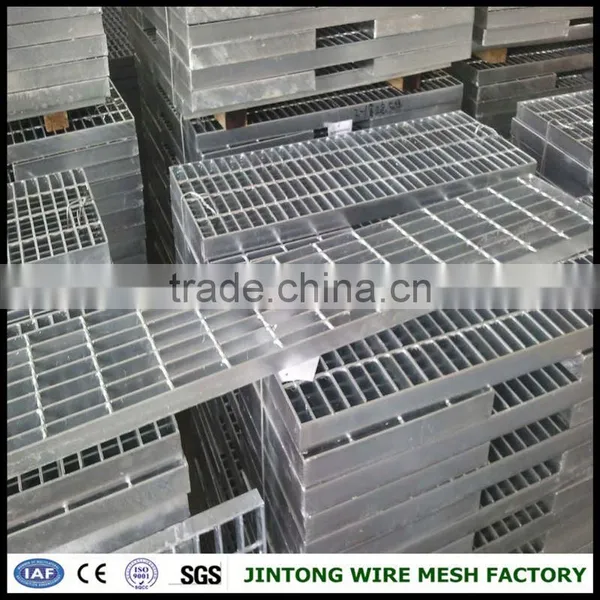

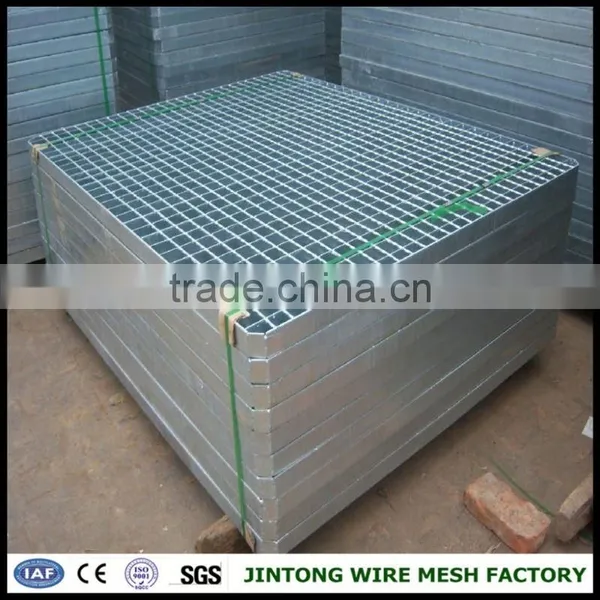

Packaging & Shipping

FAQ

1. Q: Do you provide samples?

A: Yes, we can provide samples for your approval.

2. Q: Can I get some discount?

A: different discount are available for different order quantity.

3. Q: How about delivery time?

A: 1 week for our own design. 15-25days for customized model.

4.Q: What is the payment terms ?

A: T/T, L/C, Western Union all is OK.

30% by T/T in advance , the balance paid before shipping at factory.

5. Q:What is your available port of shipment?

A: TianJin QingDao ShangHai

6. Q: Does your factory supply customized design?

A: OEM and ODM: changing on design , color , Size is acceptable.

7. Q: How can I know the completion of my order?

A: Deposit payment---start production---book shipment---inform customer---load container--- balance payment---send documents

Our Services

Inquiry response: Your inquiries will be replied in 24hours

Sample support: Free samples are available in 3-5days

Quotation: Quotation or recommended program can be provided within a working day.

Inspection: We will finish the products' inspection before shipment and confirm the time of shipment.

Storage: According to your requirement, free storage service can be provided.

Customer Visiting

Following is showing our meeting with customers.

Contact Us

Anping Jintong Wire Mesh Products Co., Ltd.: Contact nameGrace Liu; Phone86-311-66571396; Address2-3-201room,JinXin Manor,KaiFa District,Shijiazhuang City,Hebei Province,China Shijiazhuang,Hebei
