JT Factory Hexagonal Wire Mesh
Hexagonal Wire Netting is also known as Chicken Netting, or Hexagonal Wire
Material: Low Carbon Steel Wire, Stainless Steel Wire.
Characteristics: Firm structure, flat surface, corrosion-resisting and oxidation-resisting.
Hexagonal Wire Mesh Usages:
1. Used for animals like chicken, ducks, rabbits;
2. Used for prevention netting of residence, gardens;
3. Used in petroleum, chemical fiber industry, pipes, boiler, civil constructions.
For example: making net cast, stone cage, insulated net wall, boiler cover, poultry fence, etc.
Assortments Available:
1. Electro Galvanized before Weaving
2. Electro Galvanized After Weaving
3. Hot Dipped Galvanized before Weaving
4. Hot Dipped Galvanized after Weaving
5. PVC Coated Before or After Weaving
6. Stainless Steel Wire
7. Galvanized Drawn Iron Wire
Galvanized Hexagonal Wire Netting
Mesh |
Min.Gal.v. G/SQ.M |
Width |
Wire Gauge (Diameter) BWG |
||
Inch |
mm |
Tolerance(mm) |
|||
3/8" |
10mm |
±1.0 |
0.7mm - 145 |
2' - 1M |
27, 26, 25, 24, 23 |
1/2" |
13mm |
±1.5 |
0.7mm - 95 |
2' - 2M |
25, 24, 23, 22, 21 |
5/8" |
16mm |
±2.0 |
0.7mm - 70 |
2' - 2M |
27, 26, 25, 24, 23, 22 |
3/4" |
20mm |
±3.0 |
0.7mm - 55 |
2' - 2M |
25, 24, 23, 22, 21, 20, 19 |
1" |
25mm |
±3.0 |
0.9mm - 55 |
1' - 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
1-1/4" |
31mm |
±4.0 |
0.9mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
1-1/2" |
40mm |
±5.0 |
1.0mm - 45 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
2" |
50mm |
±6.0 |
1.2mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
2-1/2" |
65mm |
±7.0 |
1.0mm - 30 |
1' - 2M |
21, 20, 19, 18 |
3" |
75mm |
±8.0 |
1.4mm - 30 |
2' - 2M |
20, 19, 18, 17 |
4" |
100mm |
±8.0 |
1.6mm - 30 |
2' - 2M |
19, 18, 17, 16 |
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the
column for your reference; Also it is only for hot dipped Galvanized Netting .
PVC Coated Hexagonal Wire Netting
Mesh |
Wire Gauge (MM) |
Width |
|
Inch |
MM |
- |
- |
1/2" |
13mm |
0.6mm - 1.0mm |
2' - 2M |
3/4" |
19mm |
0.6mm - 1.0mm |
2' - 2M |
1" |
25mm |
0.7mm - 1.3mm |
1' - 2M |
1-1/4" |
30mm |
0.85mm - 1.3mm |
1' - 2M |
1-1/2" |
40mm |
0.85mm - 1.4mm |
1' - 2M |
2" |
50mm |
1.0mm - 1.4mm |
1' - 2M |
We also offer other specifications you need | |||

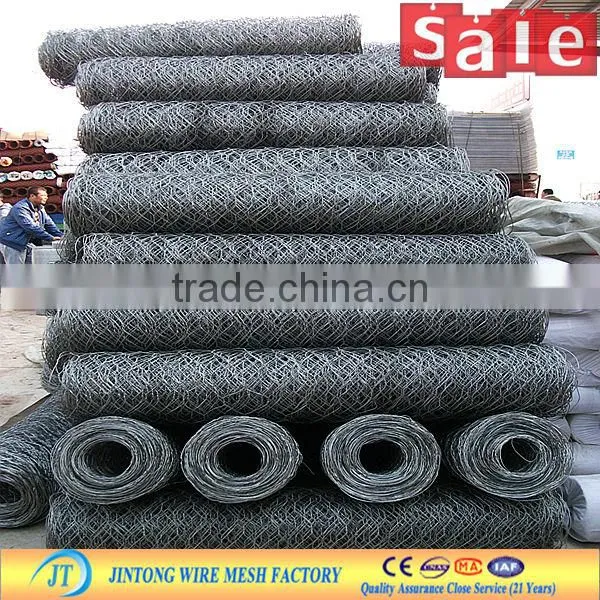

Hexagonal Wire Mesh In Rolls In Stock and Packing:
Hexagonal Wire Netting Making Machines:
