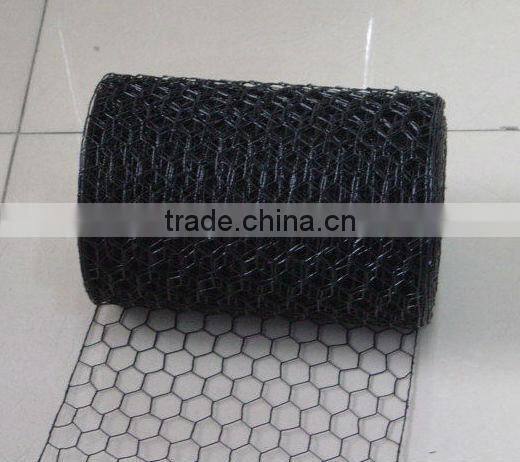

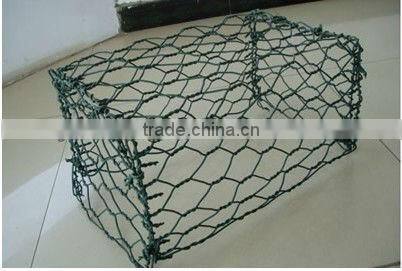

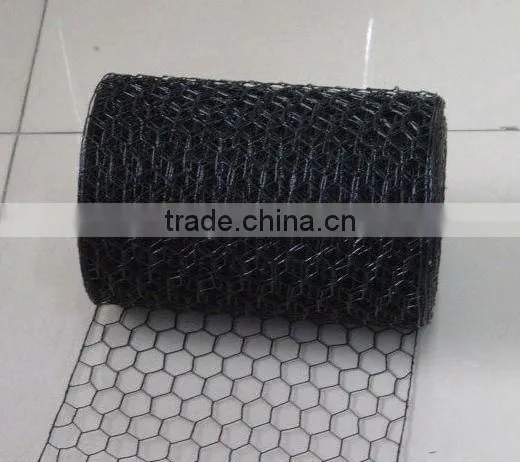

gabion box / hexagonal wire mesh
Material:low carbon steel wire, stainless steel wire
Process:straight twist, reverse twist, doubledirection twist, Weaving before galvanized, weaving after galvanized.Electro galvanized, hot dipped, plastic-coated, stainless steel, PVC coated, etc.
Feature:hard structure, flat surface, corrosion-resisting and oxidation-resisting.
Applications:
used for feeding Chicken, ducks, gooses, rabbits and the fence of zoo,machinery protection, speedway's fencing, stadium' purse net, the evanescence belt protection mesh on the road. If we use the mesh to make container boxlike, then fill the container with riprap, it could be used for protecting and holding out the sea wall, hillside, bridge and other related civil engineering, it is the superior material for flood control.
Specfication:
Hexagonal Wire Netting | |||||||
Mesh |
Min. Gal.v.G/SQ.M |
Width |
Wire Gauge (BWG) |
||||
Inch |
mm |
Tolerance(mm) |
|
|
|
||
3/8" |
10mm |
±1.0 |
0.7mm - 145 |
2' - 1M |
27, 26, 25, 24, 23 |
||
1/2" |
13mm |
±1.5 |
0.7mm - 95 |
2' - 2M |
25, 24, 23, 22, 21 |
||
5/8" |
16mm |
±2.0 |
0.7mm - 70 |
2' - 2M |
27, 26, 25, 24, 23, 22 |
||
3/4" |
20mm |
±3.0 |
0.7mm - 55 |
2' - 2M |
25, 24, 23, 22, 21, 20, 19 |
||
1" |
25mm |
±3.0 |
0.9mm - 55 |
1' - 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
||
1-1/4" |
31mm |
±4.0 |
9mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
||
1-1/2" |
40mm |
±5.0 |
1.0mm - 45 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
||
2" |
50mm |
±6.0 |
1.2mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
||
2-1/2" |
65mm |
±7.0 |
1.0mm - 30 |
1' - 2M |
21, 20, 19, 18 |
||
3" |
75mm |
±8.0 |
1.4mm - 30 |
2' - 2M |
20, 19, 18, 17 |
||
4" |
100mm |
±8.0 |
1.6mm - 30 |
2' - 2M |
19, 18, 17, 16 |
||
