Factory full automatic chicken layer cage welding machine
- 20 Set / Sets per Month
- Xingang port Tianjin
- T/T PayPal
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Hebei, China | Brand Name: | Jintong | Model Number: | JT-1200A B C |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
We can produce kinds of welded wire mesh machines according to our clients.
And we will provide reliable quality and competitive price for our every client.
Welcome to enquiry us and place order to us !

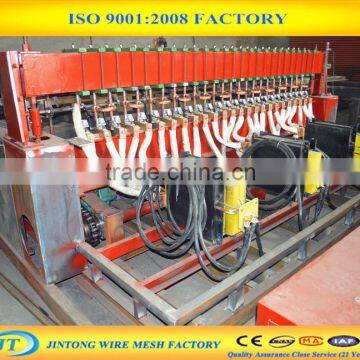

Factory full automatic chicken layer cage welding machine
Wire Diameter | 2-3.5mm | Width of Mesh | 1200mm |
Longitude Wire Space | 50-200mm | Cross Wire Space | 25-200mm |
Welding Electrodes | 16 pcs | Welding Speed | 45 times/min |
Longitude Wire Feeding | From Wire Coils | Cross Wire Feeding | From Wire Coils |
Rated Electrical Power | 60kva*2 pcs | Rated Voltage | 3-phase,380V/220V/415V/440V 50Hz or 60Hz |
Overall Size | 5.5*2.1*1.5mm | Weight | 2500kg |
Machine charateristics:
1. The machine adopts air cylinder pulling mesh and the mesh aperture is accurate. Both sides air cylinder will cut both edges automatically.
2. The longitude wires are feeding from coils. The cross wires are feeding from coils.
3. The cross wires are feeding by servo motor automatically from coils. It can feed different length for cross wires in the same mesh sheet. It can be fed short cross wire to reserve the designed mesh hole.
4. The machine is controlled by PLC&Touch screen and it’s very easy to operate.The welding speed is high
Machine welding electrodes :
Semi finished machine:
Machine motor:
Finished machine:
Who you are?
1. We are JINTONG WIRE MESH FACTORY .
2. Mainly products are: perforated mesh series, farm products series, fencing products series, and machine series, etc.
3. Occupied area:7,000 square meters.
Why choose us?
Professional wire mesh factory since 1992 years.
Reasonable Price with Quality assurance. Timely delivery; Close service.
Sophisticated production equipment.
Professional staff and the management of the production workers Strictly quality control inspection system.
QA/QC Introduction:
We have passed the ISO 9001:2008 in the year of 2011 and also have quality supervision staff to monitor the production process.
- QA/QC Introduction-- JINTONG FACTORY Strictly control quality inspection.
- Quality inspection department work is to inspect quality each day in production workshop.
- We must ensure that every product to attain to the quality requirements of the customers.
- We can pass the third party to test the product quality, and ensure that the quality meet the customers' requirements.
Following are some photos which shown our meeting with customers.
