Jintong price used barbed wire machine for sale
- 20 Set / Sets per Month
- Xingang port Tianjin
- T/T Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- automatic welding machine for stainless steel commerical sink panel and bowl
- Stainless Steel Heavy and large Box Semi-Automatic Polishing Machine Gantry Polishing Machine
- SPECIAL METAL WIRE WEAVING MACHINE
- MODERN WIRE MESH WEAVING MACHINES FROM LANYING FOR BRASS WIRE MESH WEAVING
- LANYING stainless steel woven wire mesh machines
Product Details
Place of Origin: | Hebei, China | Brand Name: | Jintong | Model Number: | used barbed wire machine for sale |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

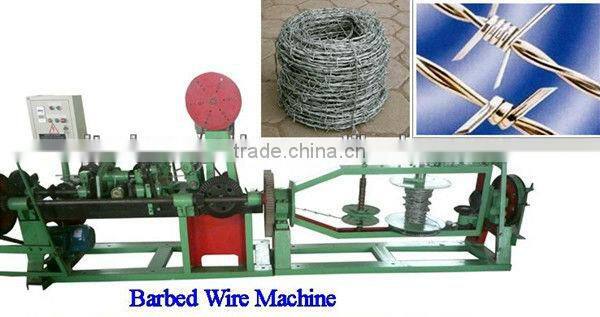

Jintong price used barbed wire machine for sale
CS-A Normal Double twisted Barbed Wire Machine
CS-A double twisted barbed wire machine is designed to produce screens with single or
double-strand barbed steel wire,the rmo-plated with zinc.
The machine is of horizontal design,consisting of two parts,
assembled together at the middle.It is safe and reliable in operation,
capable of turnning out high quality products with consistency.
Item | |
Motor | 3kw |
Rated output | 70kg/h |
Weight | 1500kg |
Overall Dimension | 1900mmx1300mmx980mm |
Wire collection part size | 1800mmx750mmx750mm |
Barb pitch spacing | 76mm 102mm |
Twist | 4 |
Strand Diameter | 1.8-3.0mm |
Wire Diameter | 1.7-2.8mm |
Rotating Speed of Drive shaft | 432r/min |
CS-B single twisted Barbed Wire Machine
CS-B single twisted Barbed Wire Machine is designed to produce screens with single
stranded barbed steel wire ,thermo-plated with zinc. The machine is of horizontal design,
consisting of two parts ,assembled together at the middle. It is safe and reliable in operation, capable of turning out high quality products with consistency.
Item | |
Motor | 2.2kw |
Rated output | 50kg/h |
Weight | 1200kg |
Overall Dimension | 1900mmx1300mmx980mm |
Wire collection part size | 1300mmx800mmx700mm |
Barb pitch spacing | As required |
Twist | 4,6 |
Strand Diameter | 1.6-2.6mm |
Wire Diameter | 1.6-2.2mm |
Rotating Speed of Drive shaft | 357r/min |
CS-C Normal and Reverse Barbed Wire Machine
CS-C Normal and Reverse Barbed Wire Machine Barbed Wire Machine for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists. This way is easy to operate and install as they will not entwist each other.
Item | |
Motor | 2.2kw |
Rated output | 40kg/h |
Weight | 1200kg |
Overall Dimension | 1900mmx1300mmx980mm |
Wire collection part size | 1300mmx800mmx700mm |
Barb pitch spacing | 76mm 102mm |
Twist | 4 |
Strand Diameter | 1.6-2.8mm |
Wire Diameter | 1.6-2.2mm |
Rotating Speed of Drive shaft | 432r/min |
Packing: pallet ,polybag or as your require,woodencase for PLC and other easy damaged parts or as yourspecial request

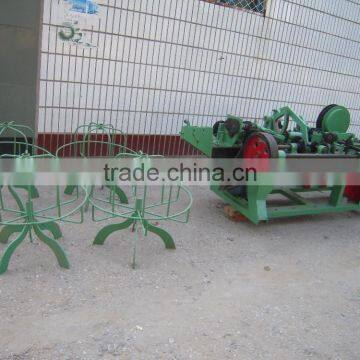

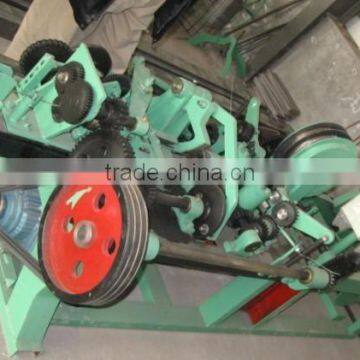

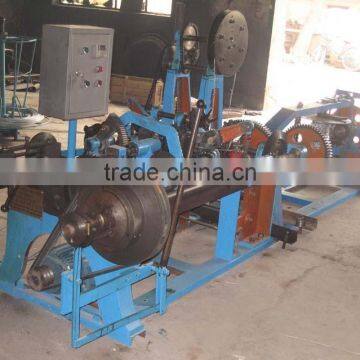

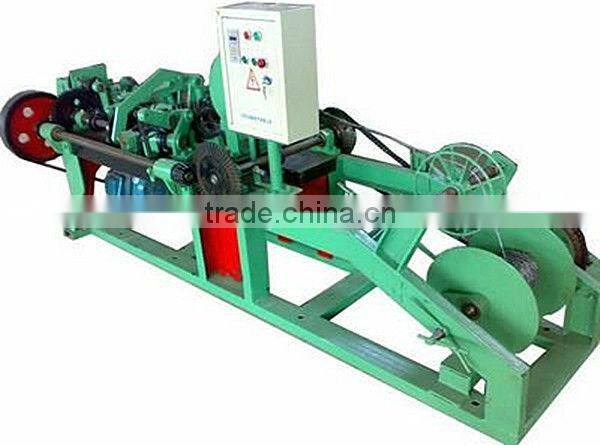

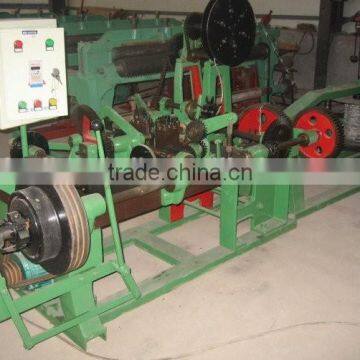

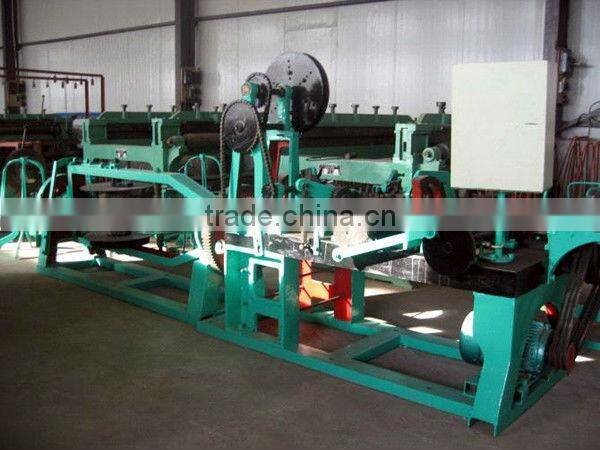

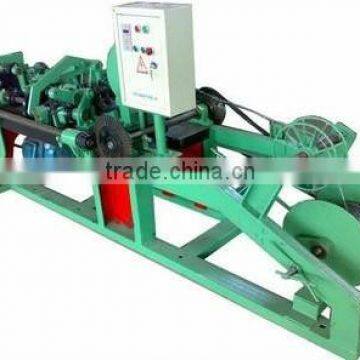

machine photoes as following:

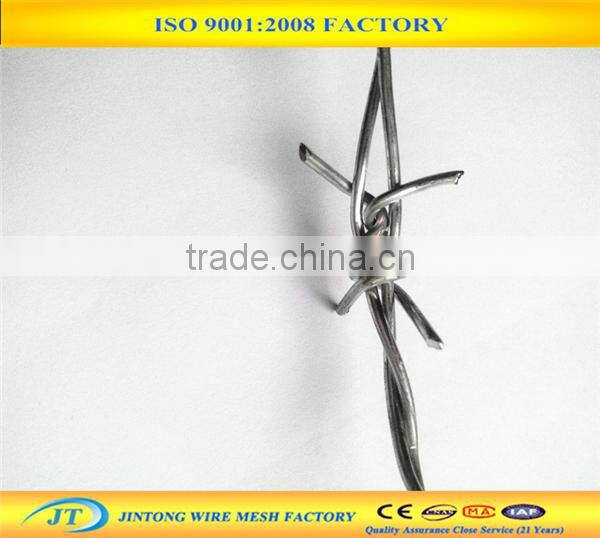

Finished Products--barbed wire
1. Who you are?
Business Type: Manufacturer, Trading Company.
Factory Location: Anping, Hebei, China(Mainland)
Year Established: 1992
Registration No.: 131125000009600
Occupied area: 10,000 square meters
Staff: 95 workers, and 10 professional designers of 20 years experience.
Company Philosophy: Our philosophy is to provide our clients with a wide choice of quality products and unprecedented service. We assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed organization.
Mainly Products: perforated metal, expanded mesh, chain link fence and post, hinge joint fence/field fence, steel post, steel grating, welded mesh, temporary fence panel, razor wire, barbed wire, and various wire mesh machine,etc
2. Our Company View:
Our office and workshop showing
3. Why choose us?
Advantages we have:
A. Experienced slate products supplier;
B. Professional design team and sales department for your service;
C. Alibaba golden supply, Factory directly;
D. 7 days /24 hours service for you, all the question will be dealed within 24 hours.
Benefit you get:
A. Stable quality -- Coming from good material and technic;
B. Lower price -- Not cheapest but the lowest at the same quality
C. Good service -- Satisfactory service before and after sale
D. Delivery time -- 10 -15 days for mass production
4. Quality Control:
We have professional QA /QC to inspect the products quality during every producing process,so that we can ensure high quality for our customers.
- QA/QC Introduction-- JINTONG FACTORY Strictly control quality inspection.
- Quality inspection department work is to inspect quality each day in production workshop.
- We must ensure that every product to attain to the quality requirements of the customers.
- We can pass the third party to test the product quality, and ensure that the quality meet the customers' requirements.
5. FAQ
1). Do you provide samples?
Yes, we can provide most of the product samples.
2). How can I know the completion of my order?
Deposit payment---start production---book shipment---inform customer---load container---balance payment---send documents
3). How can I know whether you are a reliable company?
We have been in this business line since 1992, with too much exporting experience.
We have professional terms for production and sales.
Welcome you to inspect our company--located in Anping County, Hebei province at any time!
- OEM and ODM: changing on design , color , acceptable(welcome )
- develop on artwork and sketch : acceptable
- Delivery time: 1 week for our own design. 15-25days for cusmoized model.
- Payment terms: T/T, L/C, Western Union
- MOQ: 50 rolls can be acceptable for trail order.
