Barbed wire mesh machine
CS-A Normal Double twisted Barbed Wire Machine
CS-A double twisted barbed wire machine is designed to produce screens with single or double-strand barbed steel wire,the rmo-plated with zinc.
The machine is of horizontal design,consisting of two parts,
assembled together at the middle.It is safe and reliable in operation,
capable of turnning out high quality products with consistency.
Item |
|
Motor |
3kw |
Rated output |
70kg/h |
Weight |
1500kg |
Overall Dimension |
1900mmx1300mmx980mm |
Wire collection part size |
1800mmx750mmx750mm |
Barb pitch spacing |
76mm 102mm |
Twist |
4 |
Strand Diameter |
1.8-3.0mm |
Wire Diameter |
1.7-2.8mm |
Rotating Speed of Drive shaft |
432r/min |
CS-B single twisted Barbed Wire Machine
CS-B single twisted Barbed Wire Machine is designed to produce screens with single stranded
barbed steel wire ,thermo-plated with zinc. The machine is of horizontal design,
consisting of two parts ,assembled together at the middle. It is safe and reliable in operation, capableof turning out high quality products with consistency.
Item |
|
Motor |
2.2kw |
Rated output |
50kg/h |
Weight |
1200kg |
Overall Dimension |
1900mmx1300mmx980mm |
Wire collection part size |
1300mmx800mmx700mm |
Barb pitch spacing |
As required |
Twist |
4,6 |
Strand Diameter |
1.6-2.6mm |
Wire Diameter |
1.6-2.2mm |
Rotating Speed of Drive shaft |
357r/min |
CS-C Normal and Reverse Barbed Wire Machine
CS-C Normal and Reverse Barbed Wire Machine Barbed Wire Machine for Two-strand Wire with Two-way Twists can produce the barbed wire with two-way twists. This way is easy to operate and install as they will not entwist each other.
Item |
|
Motor |
2.2kw |
Rated output |
40kg/h |
Weight |
1200kg |
Overall Dimension |
1900mmx1300mmx980mm |
Wire collection part size |
1300mmx800mmx700mm |
Barb pitch spacing |
76mm 102mm |
Twist |
4 |
Strand Diameter |
1.6-2.8mm |
Wire Diameter |
1.6-2.2mm |
Rotating Speed of Drive shaft |
432r/min |
Packing: pallet ,polybag or as your require,woodencase for PLC and other easy damaged parts or as your special request .

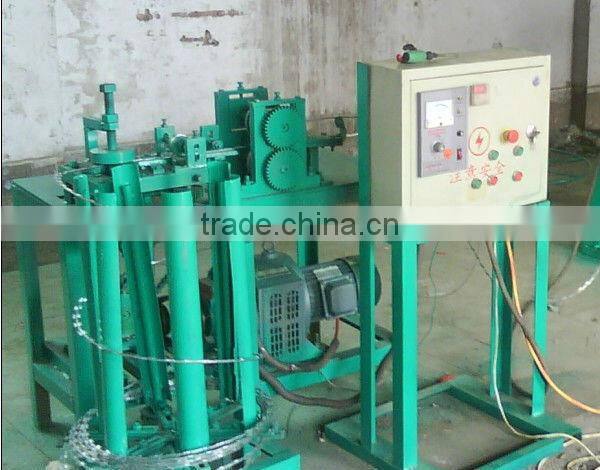

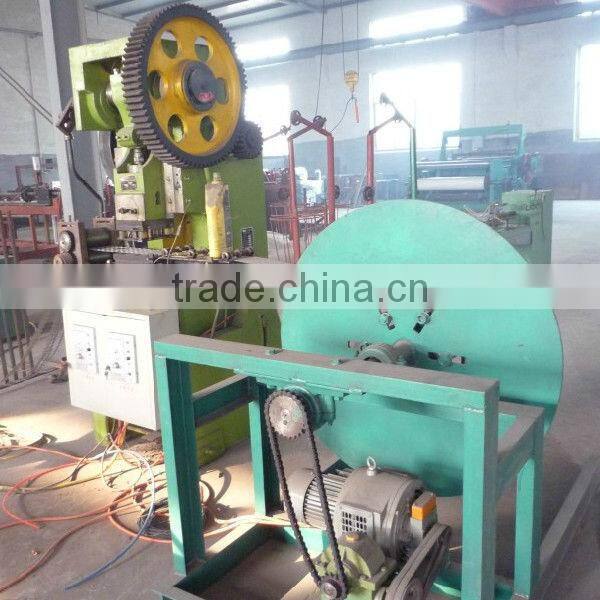

Some pictures of barbed wire mesh machine for reference:
Who you are?
1. We are JINTONG WIRE MESH FACTORY .
2. Mainly products are: perforated mesh series, farm products series, fencing products series, and machine series, etc.
3. Occupied area:7,000 square meters.
Why choose us?
Professional wire mesh factory since 1992 years.
Reasonable Price with Quality assurance. Timely delivery; Close service.
Sophisticated production equipment.
Professional staff and the management of the production workers Strictly quality control inspection system.
QA/QC Introduction:
We have passed the ISO 9001:2008 in the year of 2011 and also have quality supervision staff to monitor the production process.
- QA/QC Introduction-- JINTONG FACTORY Strictly control quality inspection.
- Quality inspection department work is to inspect quality each day in production workshop.
- We must ensure that every product to attain to the quality requirements of the customers.
- We can pass the third party to test the product quality, and ensure that the quality meet the customers' requirements.
