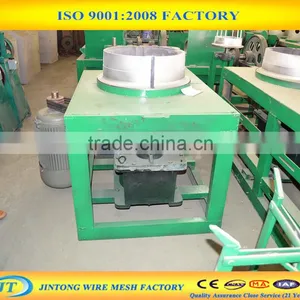

used iron steel wire drawing machine
used iron steel wire drawing machine

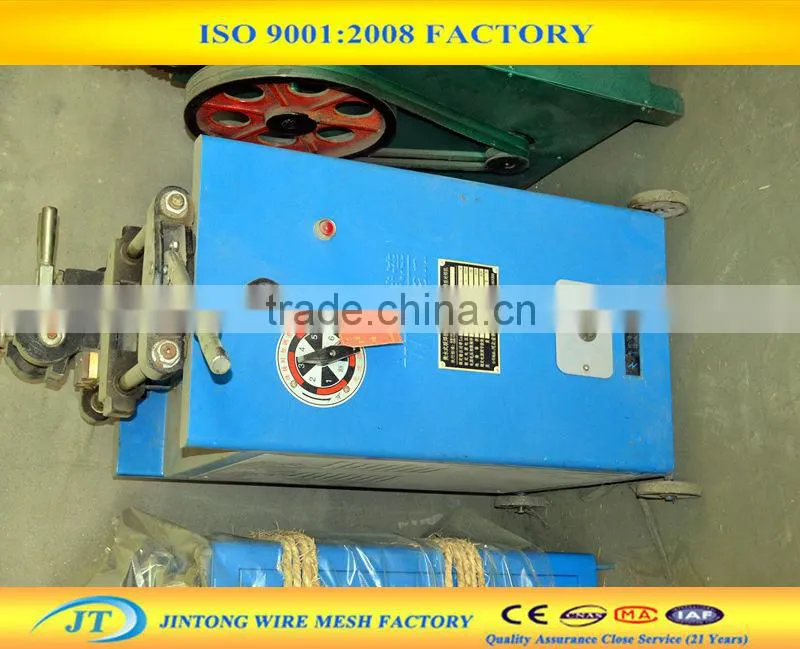

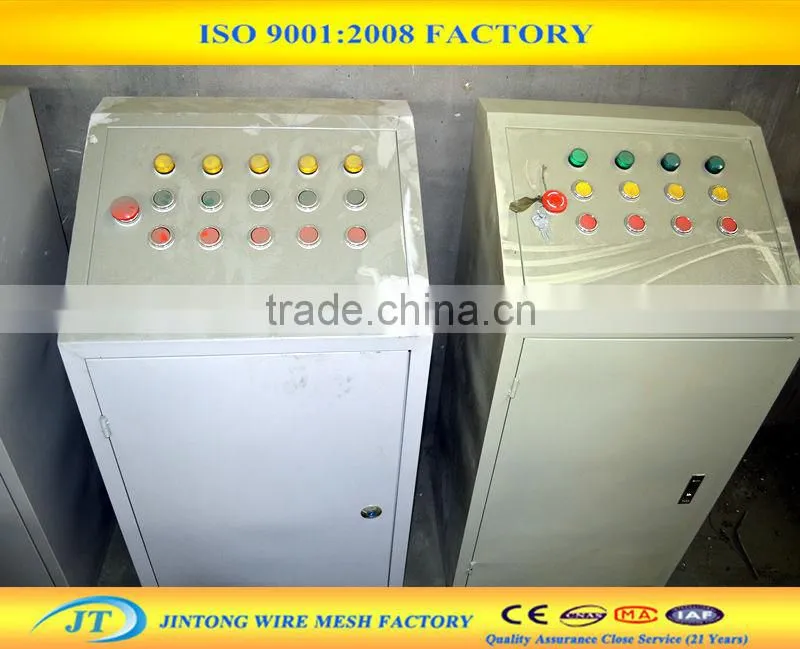

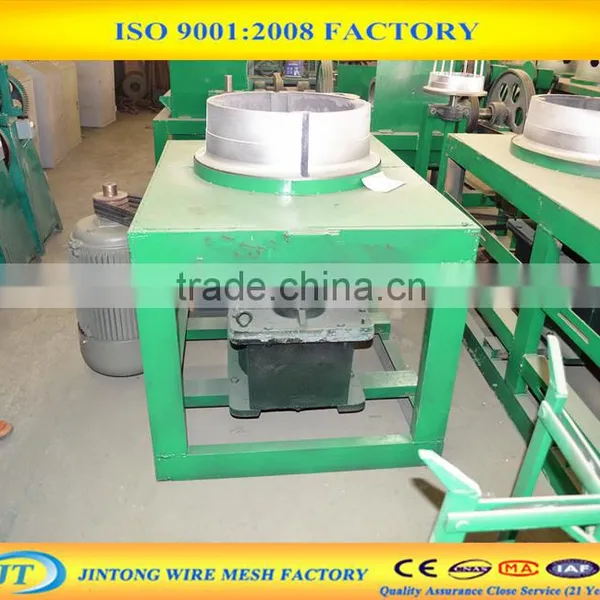

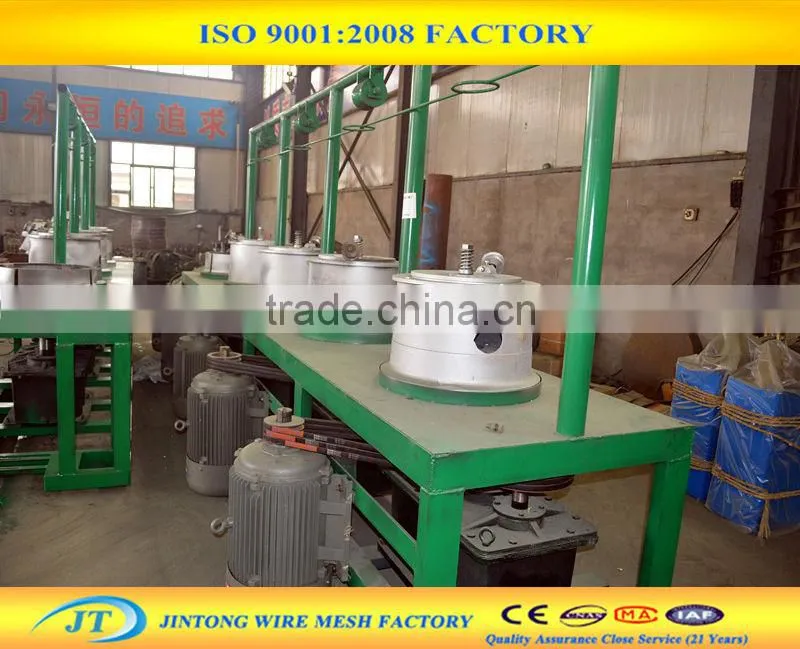

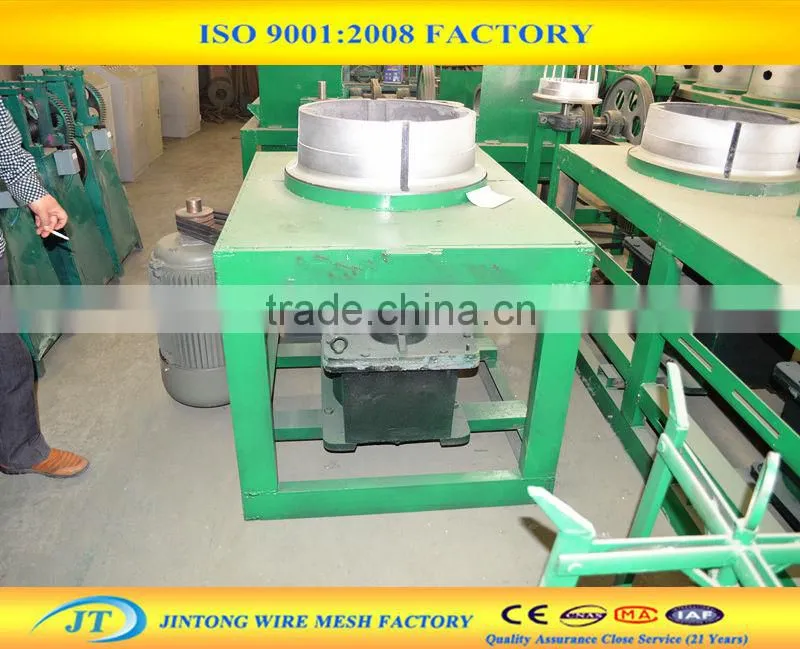

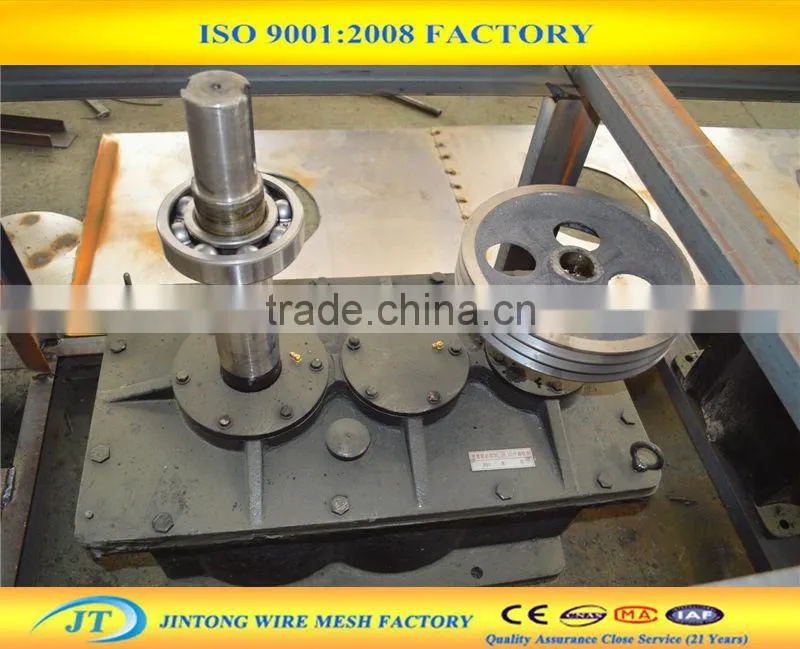

Structure:The drawing equipment consists of main reduction box,die casing,wheel frame,wire brace and electeical control system.The spinning drawing blocks are driven by JZT or Y series motor,with gear couling runs shangeful gear to reduce speed.The drawing blocks are verticaly fixed in sealed box body.The qear are lubricated with oil.
In order to lower residual heat on the surface of the block,the cooling means is installed in interwall of the block.
The machine runs with carwl or llinkage.The safety halt gear is installed by the position of operating block.
1.Low Input High Returns
2.Suitable for Small Facrory ,Family Factory,Individual Workshops, Semiworks etc.
3.Only Needs One Worker.
4.Have been Exported to Russia, India, Saudi Arabia, Turkey, Algeria, Iran, Pakistan, Uzbekistan, Vietnam, Malaysia etc.
5.We have Agents in India and Iran.
6.One of the Most Popular Wire Drawing Machine in our Local.
7 After-sales services: One Year
used iron steel wire drawing machine
Specifictions Model | 800 | 560 | 450 | 350 | |
dia of takeup wheel (mm) | 800 | 560 | 450 | 350 | |
Draw die | 1--8 dies | 1--6 dies | 1--7 dies | 1--6 dies | |
Max.incoming diameter (mm) | 10--14 | 6.5 | 3.4 | 2.5 | |
Outgoing diameter (mm) | 6 | 2 | 1 | 0.75 | |
Total compressibili (%) | / | 78--88.5 | 78 | 78 | |
Average partial compressibility (%) | 25 | 30 | 20 | 21 | |
Drawing speed (m/m) | / | 245 | 346 | 200 | |
Motor power (kw) | 132 | 60-80 | 30-45 | 18.5-22 | |
Overall dimensionssss (mm) | 9730x3340x2020 | 1700x1150x1750 | 1520x810x1700 | 1400x800x1500 | |
Weight (kg) | 4500 | 2000 | 1500 | 1000 |

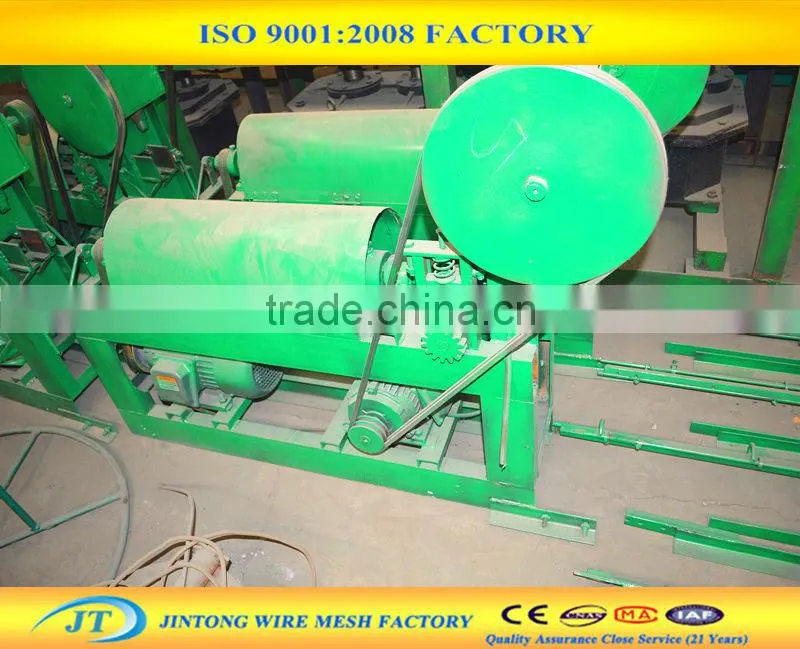

Other Related machine : used iron steel wire drawing machine

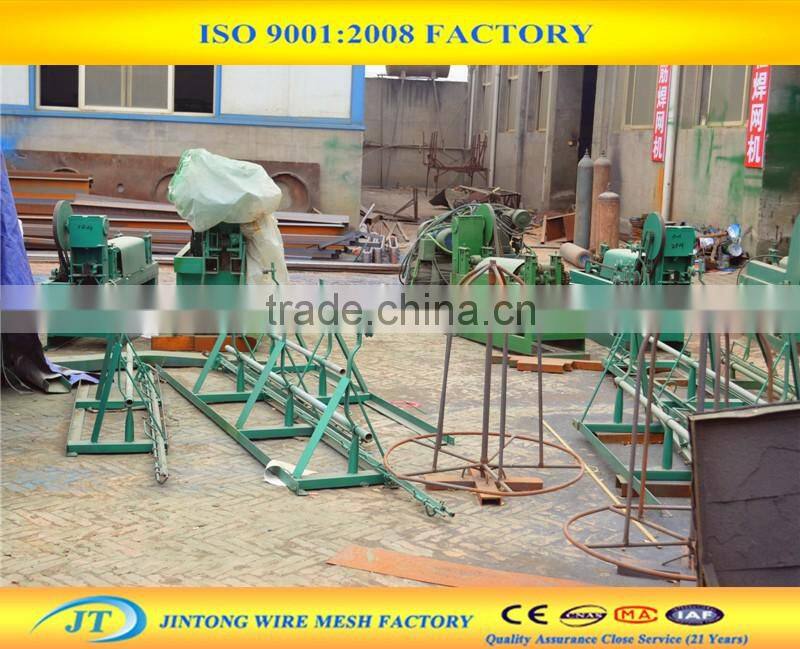

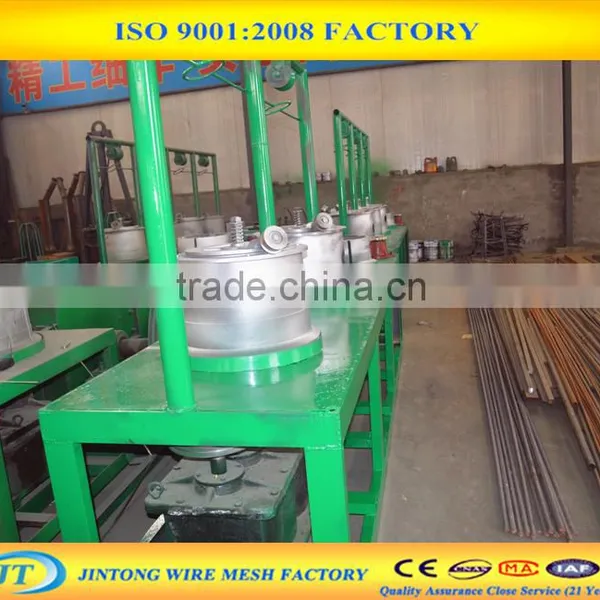

Workshop: used iron steel wire drawing machine

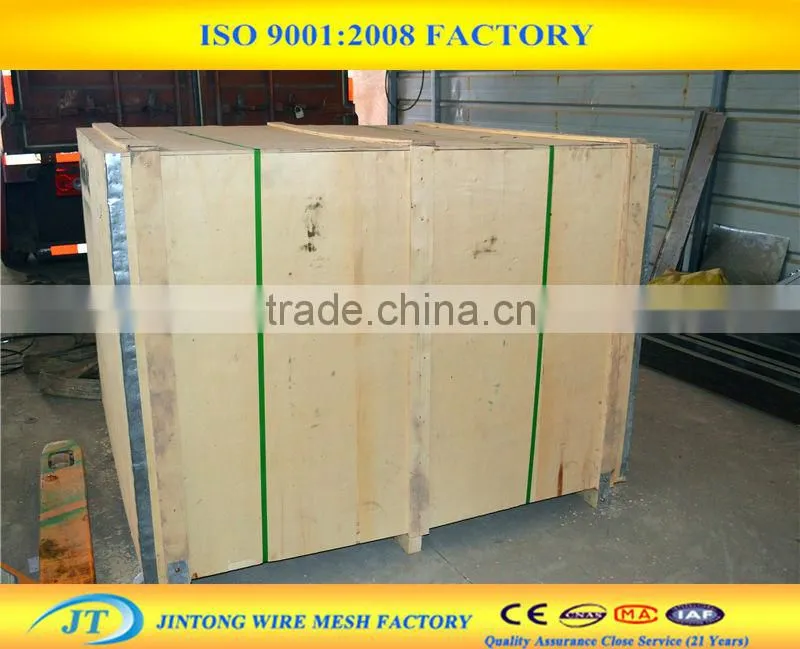

Packing :wooden cases or as the cutomer's reqirement
Shipping time :within 25 days
With the development in production technology, All kinds of wire mesh and wire that we produced have reached
advanced level, the products are exported to Southeast Asia, the Middle East, Canada, the United States and other
countries and regions, Our company rely on the high quality, good reputations, the high quality after sale service,
we get the best reputations from most of our customers.
Following are some photos which shown our meeting with customers.
