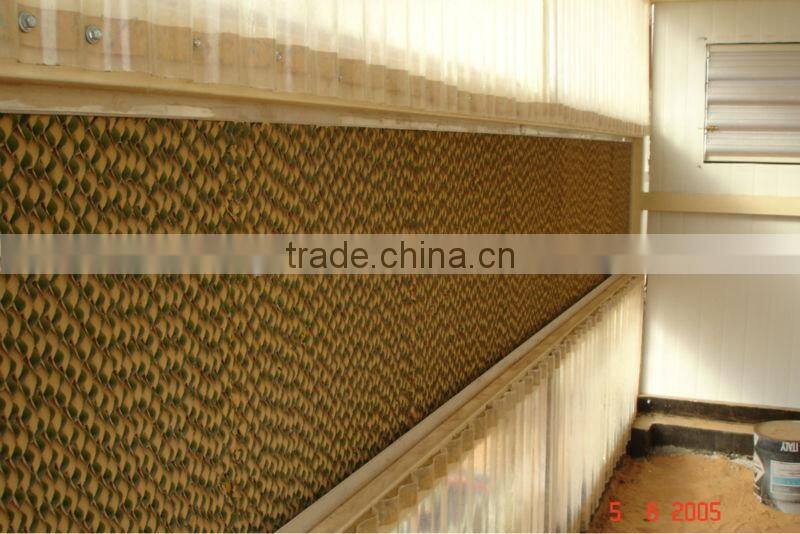

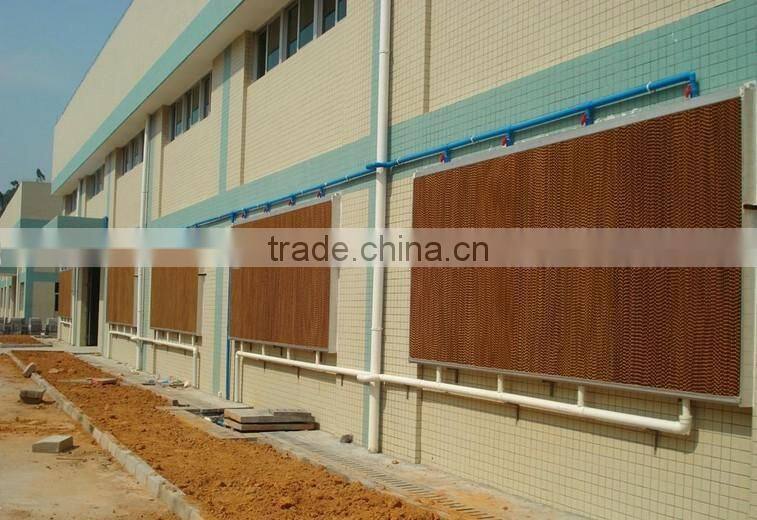

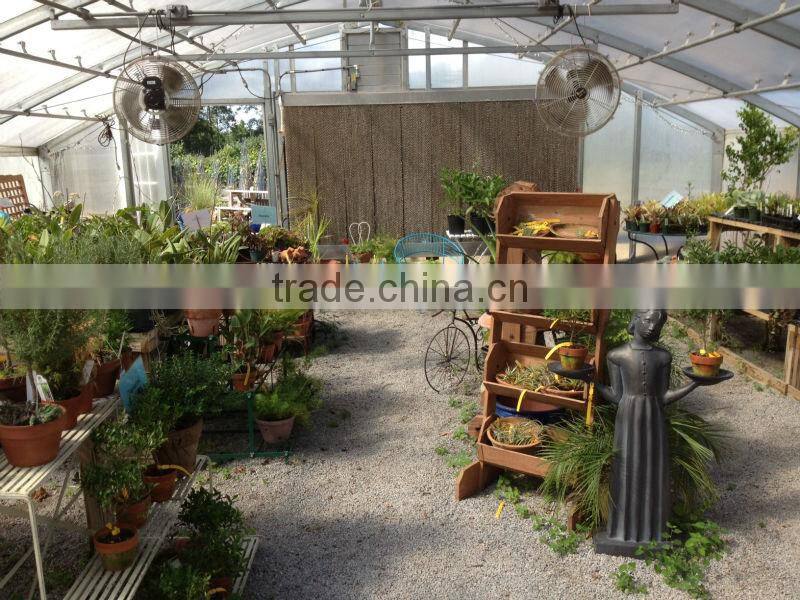

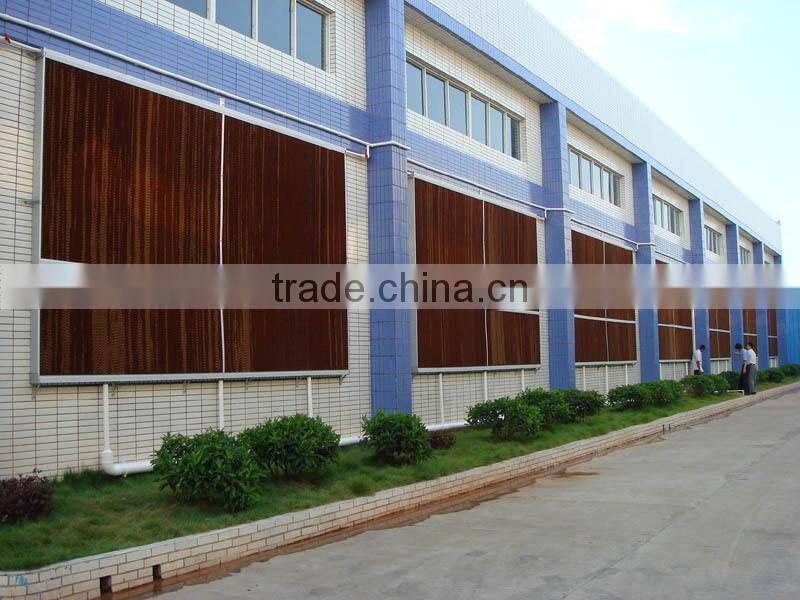

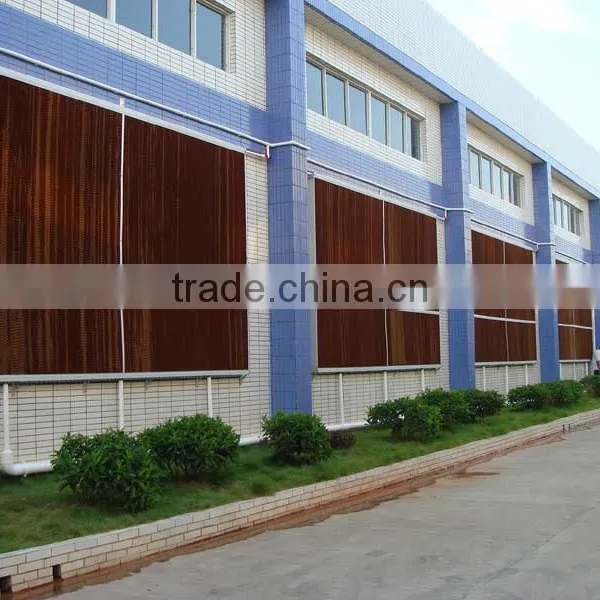

Evaporative cooling pad
1. Innovate Detachable Frame,Facilitate to clean water pipe and exchange the cooling pad;

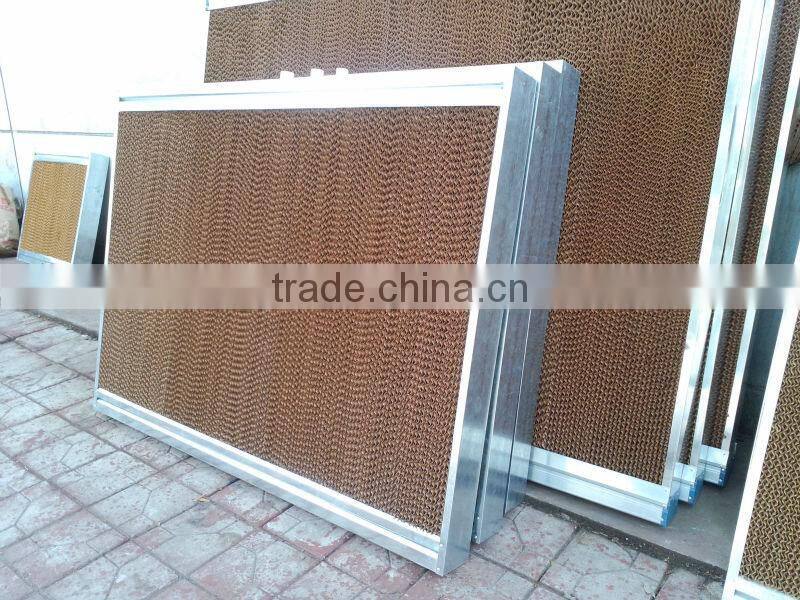

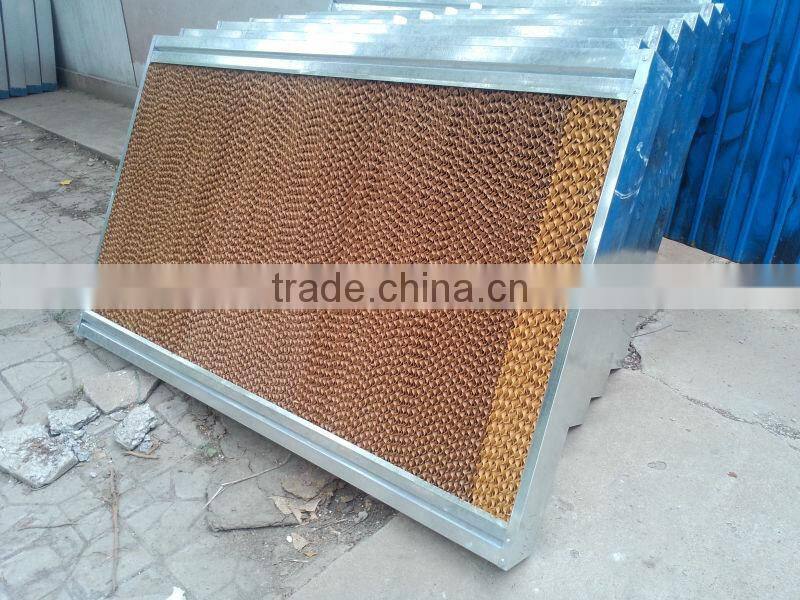

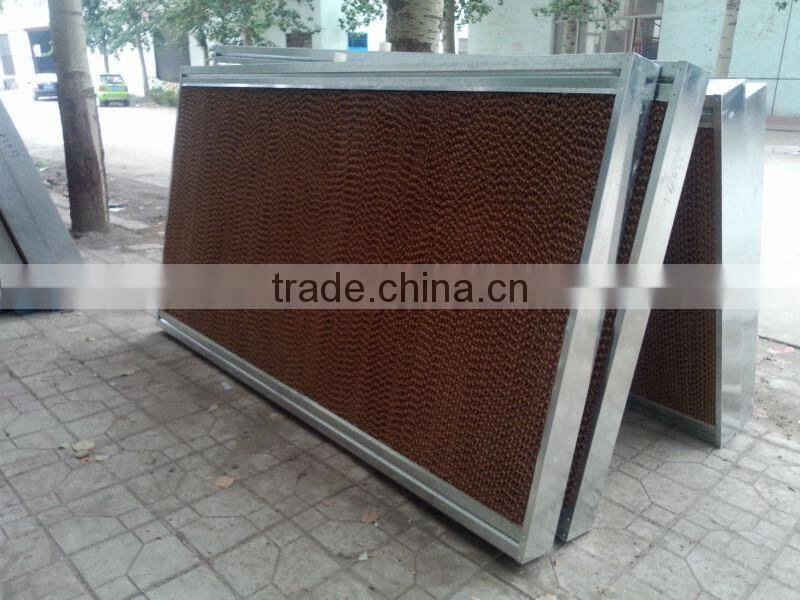

2. Use Aluminum alloy frame,light weight,easy installation;
3. Self-produced Nylon End cover,Ensure high quality,lower cost;
4. Adopt thickness of upper plate of 2mm,1.4mm for bottom plate;
5. Multi colours cooling pad for your choice;
6. There are two others frame material: Stainless steel and Aluminum Alloy.
| Unit | YP7090 | YP5090 | |
| height | mm | 150,018,002,000 | according to customer |
| width | mm | 900,600,300 | according to customer |
| depth | mm | 100,150,200 | according to customer |
| flute height | mm | 7 | 5 |
| flute angle α | ° | 45 | 45 |
| flute angle β | ° | 45 | 45 |
1. Adopt cross-link technology between the new material and the space, with excellent performance, such as high absorbability, high water-resistant, anti-mildew, long service life, big surface evaporative ratio, cooling efficiency can reach above 80%.
2. The product contains surface active agent, natural water absorbability, fast pervasion, lasting effectiveness. A drop of water can diffuse in 4-5 seconds. Height of absorb: 60-70mm/5 minutes, 200mm/1.5 hours, can achieve international standard.
3. Products don’t contain Phenol or any other chemical substances which is easy to get skin allergy. It’s non-toxic, non-harmless in the installation. Which is known as safety, energy saving, environmental protection and economic applicable.
4.A range of colors: brown color, green color, green and brown cross color, one side black- coated color (washable) and so on.
Note: Please claim the colour to us when you order.
5.Reasonable design: Link the clamp plate with top plate by screw fasting. So, when the cooling pad needs to be changed, only open the clamp plate can make it.
PS: Top plate adopt the thicker Aluminum plate, thickness is 2mm.
6. Close-up to the clamp plate, which can be detached on its own to change the cooling pad.
7. The end cover adopt high intensity Nylon instead of ABS plastic, with the thickness of 4mm, This innovation effectively avoid the damage both in the transportation or installation.
8. This installation support can be sold individually. So, if you need this, please notify us in advance.
