(Manufacturer) Nfc Writer 13.56MHz RFID Antenna for Rfid System (rfid Attendence/jewellery System)(ISO15693)

(Manufacturer) Nfc Writer 13.56MHz RFID Antenna for Rfid System (rfid Attendence/jewellery System)(ISO15693) thumbnail-1
(Manufacturer) Nfc Writer 13.56MHz RFID Antenna for Rfid System (rfid Attendence/jewellery System)(ISO15693) photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyintech/OEM
Model Number:
HYH4W1T
Contact Supplier Request Quote Chat Now
Hyin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyintech/OEM
Model Number HYH4W1T
(Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)

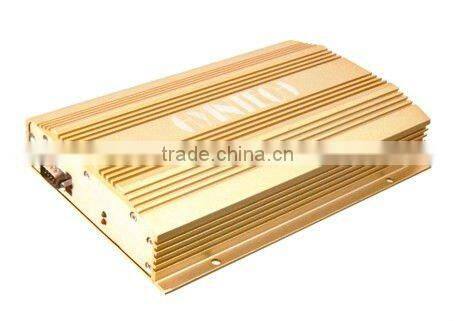

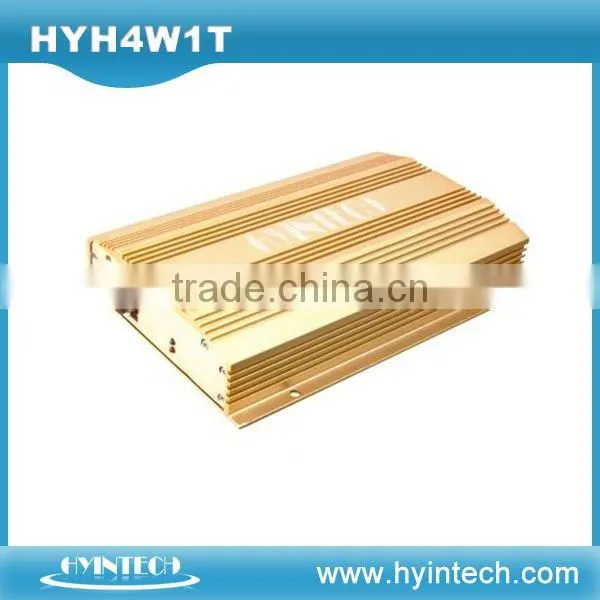

HYH4W1T Long Distance HF Tag Reader&Writer



(Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)

Size:215mmx138mmx39mm

OEM, No Logo on Product is Available

 More detail, please visit our website and check this link
/en/products_2.asp?id=9

GENERAL DESCRIPTION

 HYH4W1T is a high performance ISO15693 protocol HF tag reader. It is designed upon fully self-intellectual property. Based on proprietary efficient anti-collision algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.

FEATURES

l        Self-intellectual property;

l        Support mainstream ISO15693 protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM);

l        RF output power over 4W;

l        Advanced anti-collision algorithm. High identification rate with tag processing speed 80pcs/s;

l        SMA RF interface to support standard 50ohm RFID antenna. Reading distance up to 120cm;

l        Support TRANSPARENT COMMAND and SCAN-MODE;

l        Support optional DPPM and WPPM;

l        Support multiple readers network;

l        Low power dissipation;

l        Provide DLL and demonstration software to facilitate development

INTERFACE DESCRIPTION

(Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)

1.Power Supply Socket J1



 (Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)

2.SMA Antenna Socket J2

3.Communication Socket J3

Standard DB9 Female Socket to be directly connected to the host.

(Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)



CHARACTERISTICS

lAbsolute Maximum Rating



 (Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)

lElectrical and Mechanical Specification

Under TA=25°C,VCC=+12.6V unless specified



ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

11.6

12.6

15

V

Current Dissipation

IC



0.8

1.2

A

Frequency

FREQ



13.56



MHz

Effective Distance*

DIS

0

900

1000

mm

G_IN1 Input Level

VIH

VIL

3.5

2.6

2.3



1.55

V

V

G_OUT1, G_OUT2

Output Current

±IO





5

mA

G_OUT1,G_OUT2

Output Level

VOH(IO=-5mA)

VOL(IO=5mA)

3.95





0.73

V



Relay

Rated Load

CLOAD





0.5A at 125VAC

1A at 24VDC



Operating Voltage







125VAC

60VDC

V

Operating Current







1

A

Size

L x W x H



215 x 138 x 39



mm

*Effective distance depends on antenna, tag and working environment.

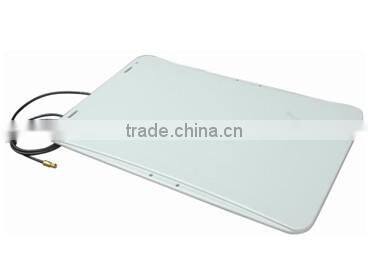

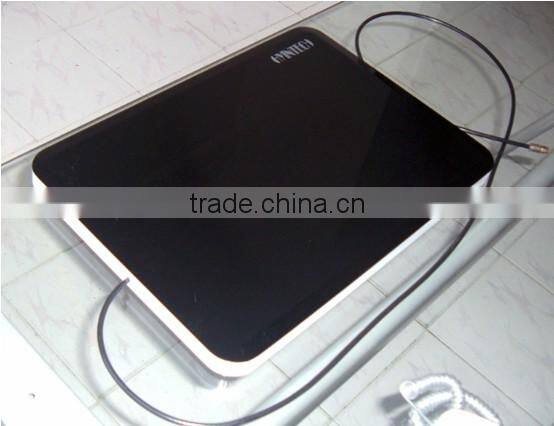

HF Reader&Writer Antenna



HYP3242                                       HYP5031

(Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)(Manufacturer) nfc writer 13.56MHz RFID Antenna for rfid system (rfid Attendence/jewellery system)(ISO15693)

Size:28mmx320mmx420mm                        Size:500mmx310mmx31mm



OEM, No Logo on Product is Available



More detail, please check this link

/en/products_2.asp?id=6
  /en/products_2.asp?id=7
