Home > Computer Products > Palm Computer, Pocket PC & PDA > Uhf Industrial Long Distance [(HYINTECH)] Uhf Industrial Long Distance Rfid&barcode Handheld Reader&software

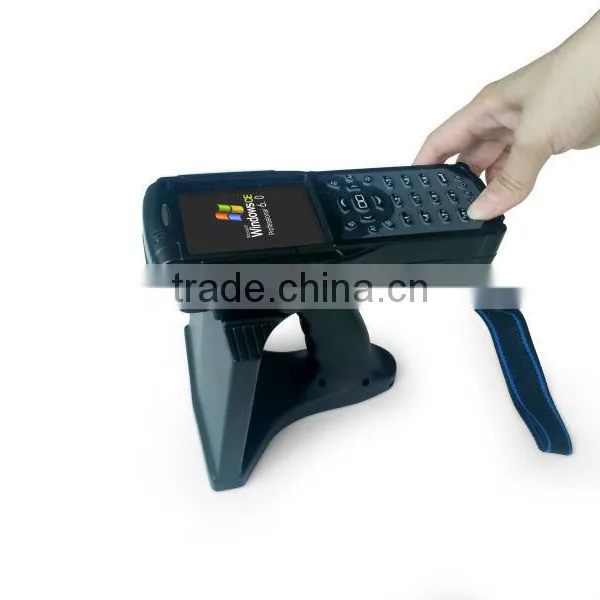

Uhf Industrial Long Distance [(HYINTECH)] Uhf Industrial Long Distance Rfid&barcode Handheld Reader&software
![Uhf Industrial Long Distance [(HYINTECH)] Uhf Industrial Long Distance Rfid&barcode Handheld Reader&software thumbnail-1](https://img11.fr-trading.com/2/1_842_56142_800_600.jpg)
![Uhf Industrial Long Distance [(HYINTECH)] Uhf Industrial Long Distance Rfid&barcode Handheld Reader&software photo-1](https://img11.fr-trading.com/3/1_842_56142_800_600.jpg)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Operating System:
Other, Win CE, Win CE 6.0
Processor Type:
Samsung
Style:
Handheld Computer
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
![Long Distance Rfid Pda [(HYINTECH))] Long Distance Rfid Pda](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
Long Distance Rfid Pda [(HYINTECH))] Long Distance Rfid PdaNegotiableMOQ: 1 -
Portable Long Distance Rfid Handheld [(HYINTECH))] Portable Long Distance Rfid HandheldNegotiableMOQ: 1
-
Antique Library Steps /\ Antique Library StepsNegotiableMOQ: 1
-
Antique Library Chairs \/\ Antique Library ChairsNegotiableMOQ: 1
-
Library Ladder \/\ Library LadderNegotiableMOQ: 1
Operating System
Other, Win CE, Win CE 6.0
Processor Type
Samsung
Style
Handheld Computer
Screen Size
3.2, 3.5"
Brand Name
HYINTECH
Model Number
HY2800
Place of Origin
Guangdong, China
HY3800W/S Industrial Handheld Reader
Video download link
/en/download.asp?pid=1&cid=23
Introduction
Compact structure design, multi internal plastic buffer
Super Power Battery 7.4V,2500MAH/3.7V,5000MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.
Stable PXA3XX CPU,efficiency data processing
Readable under sun-shine 3.5 inch LCD
Multi-Thread WinCE 6.0 R3 System
Hardware extendable functions
High capability Barcode scanner engine, Designed for 10 years using.
Sensitive RFID (LF/HF/UHF) Module
Wifi ( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional
Support further software development, SDK(Software Development Kit ) Provided
Specification
Model Number | HY3800S | , |
CPU | PXA3XX (624MHZ) | |
| OS | Windows CE 6.0 R3 (Lauguage Customizable) | |
| Memory | RAM | 128MB |
| F-ROM | 128MB/256MB | |
Barcode Scan engine | Scanner | 1D /2D Laser Barcode Scanner |
| Module | Opticon /Moto | |
Scan Speed | 100 times per second +-2 times | |
| Scan Distance | 60-650mm | |
| Angle | 54±5 | |
| Width | 60-360mm At Max Reading Distance | |
| Resolution | 0.127-1.00mm | |
| Code | UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded; | |
| RFID | LF 125KHZ | Max Reading 10cm |
| LF 134.2KHZ | Max Reading 10cm | |
| HF 13.56MHZ | Max Reading 40cm | |
| UHF 860-928M | HY3800W Max Reading above 10 Meter | |
| HY3800S Max Reading above 4 Meter | ||
| LCD | Type | TFT-LED QVGA Touch Screen |
| Resolution | QVGA(240X320)Readable Under Sun Shine | |
| Size | 3.5 inch | |
| Input | Soft Keyboard | English, Chinese Input(Multi Language Customizable) |
| Hard Keyboard | 30 Key | |
| ScanKey | At the Middle | |
| Function Modules | Standard | WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5 |
| Optional | Internal LF/HF/UHF RFID Reader | |
| Optional | Internal GPRS/3G WCDMA | |
| Optional | Internal GPS Signal 48,Accuration 2.5m,Speed below 0.01m/s | |
| Optional | Internal LF/HF/UHF RFID Reader | |
| Optional | Internal GPRS/3G WCDMA | |
| Power | Main Power | 7.4V,2600mah/3.7V 5200mah Li-ion |
| RTC Battery | Chargeable Button battery | |
| Standby | 10 days | |
| Working | Above 20 hours, depends on specific situation | |
| Extension | Micro SD/TF Slot | Industrial Standard |
| Industrial Standard | IP65 | |
| Size | Human Engineering Design | 190(L)×78(W)×40(T) mm |
| Weight | 430g( Including Battery) | |
| Working Environment | Operation Temp. | -15~+50°C |
| Storable Temp. | -20~+60°C | |
| Working Wet | 5-95% | |
| Storage Wet | 5-95% | |
| Anti-Drop | 4 inch(1.2Meters)Multi Drop |
IP65 WIN CE 6.0 RFID&Barcode Handheld Reader
,,
