uhf rfid handheld10m uhf reading range and 40cm HF reading range handheld reader with software
- 0 per Month
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HYINTECH | Model Number: | HY3800W |
Product Description
HY3800WIndustrial Handheld Computer With Handle
Video download link
/en/download.asp?pid=1&cid=23
Introduction
Compact structure design, multi internal plastic buffer.
Super Power Battery 7.4V,2600MAH/3.7V,5200MAH, Long Working Time. Sustain consecutive Working above 20 hours (depends on specific situation), 10 days standby. Extended battery life.
Stable PXA3XX CPU,efficiency data processing.
Readable under sun-shine 3.5 inch LCD.
Multi-Thread WinCE 6.0 R3 System.
Hardware extendable functions.
High capability Barcode(1D/2D) scanner engine, Designed for 10 years using.
Sensitive RFID (/HF/UHF) Module.
Wifi ( Standard), GPRS/3G(optional),GPS/Optional, Camera/Optional.
Support further software development, SDK(Software Development Kit ) Provided.
Specification
CPU |
| PXA3XX (624MHZ) |
OS |
| Windows CE 6.0 R3 (Language Customizable) |
Memory | RAM | 128MB |
F-ROM | 128MB/256MB | |
Barcode Scan engine | Scanner | 1D /2D Laser Barcode Scanner |
Module | Opticon /Moto | |
Scan Speed | 100 times per second +-2 times | |
Scan Distance | 60-650mm | |
Angle | 54±5 | |
Width | 60-360mm At Max Reading Distance | |
Resolution | 0.127-1.00mm | |
Code | UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded; | |
RFID | HF 13.56MHZ | Max Reading 40cm |
UHF 860-928M | Max Reading above 10m | |
LCD | Type | TFT-LED QVGA Touch Screen |
Resolution | QVGA(240X320)Readable Under Sun Shine | |
Size | 3.5 inch | |
Input | Soft Keyboard | English, Chinese Input(Multi Language Customizable) |
Hard Keyboard | 30 Key | |
ScanKey | At the Middle | |
Function Modules | Standard | WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5 |
Optional | BT V2.1+EDR | |
Optional | Internal 3M camera | |
Optional | Internal GPS Signal 48,Accuration 2.5m,Speed below 0.01m/s | |
Optional | Internal LF/HF/UHF RFID Reader | |
Optional | Internal GPRS/3G WCDMA | |
Power | Main Power | 7.4V,2600mah/3.7V 5200mah Li-ion |
RTC Battery | Chargeable Button battery | |
Standby | 10 days | |
Working | Above 20 hours, depends on specific situation | |
Extension |
| Micro SD/TF Slot |
Size | Human Engineering Design | 190(L)×100(W)×120(T) mm |
Weight |
| 700g( Including Battery) |
Working Environment | Operation Temp. | -15~+50°C |
Storable Temp. | -20~+60°C | |
Working Wet | 5-95% | |
Storage Wet | 5-95% |

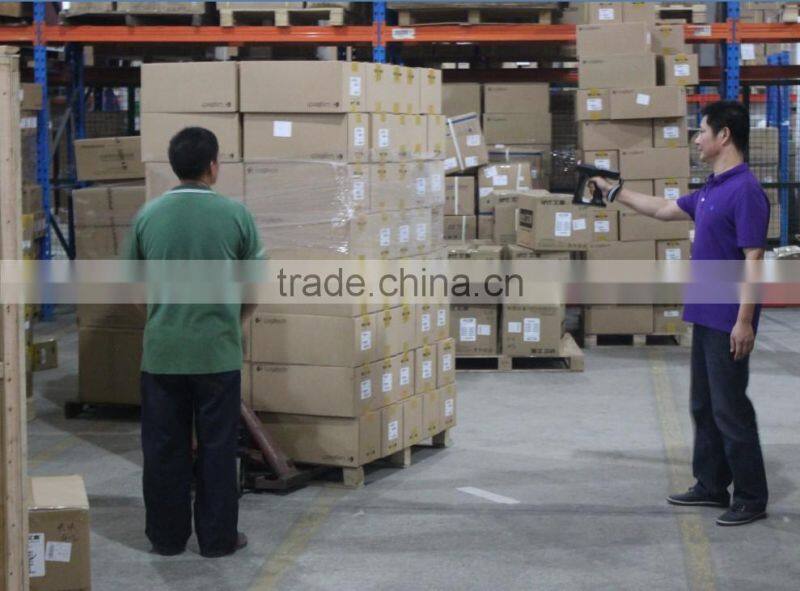

10M Long Reading Distance For RFID Warehouse Management System
