Uhf Rfid 8dbi Reader

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Hyintech
Model Number	HYB609

Product Description

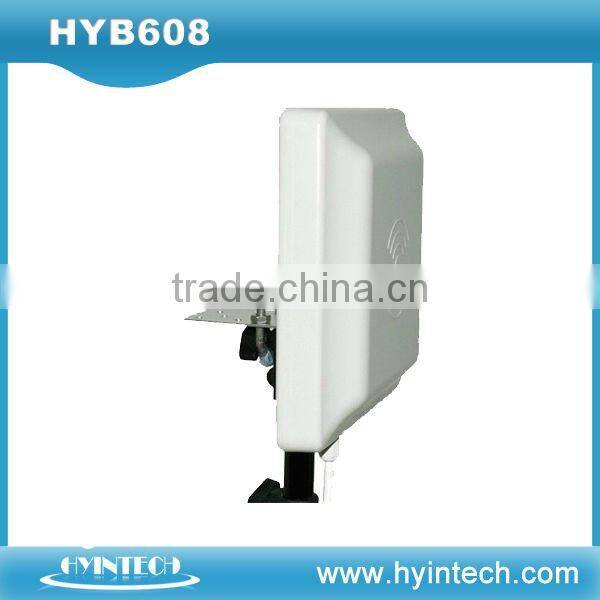

UHF RFID Integrated Reader

HYB609

General Description

HYB608 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

l Self-intellectual property;

l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

l 860~928MHz frequency band(frequency customization optional);

l FHSS or Fix Frequency transmission;

l RF output power up to 30dbm(adjustable);

l 8dbi antenna optional with Reading distance up to 8 meters;

l Support auto-running, interactive and trigger-activating work mode;

l Low power dissipation with single +9 DC power supply;

l Support RS232, RS485, Wiegand interface;

* Effective distance depends on antenna, tag and environment.

CHARACTERISTICS

l Absolute Maximum Rating

ITEM	SYMBOL	VALUE	UNIT
Power Supply	VCC	16	V
Operating Temp.	T_OPR	-10~+55	°C
Storage Temp.	T_STR	-20~+75	°C

l Electrical and Mechanical Specification

Under T_A=25°C,VCC=+9V unless specified

ITEM	SYMBOL	MIN	TYP	MAX	UNIT
Power Supply	VCC	8	9	12	V
Current Dissipation	I_C		350	650	mA
Frequency	F_REQ	860		928	MHz

Interface

Item	Comment
Red	+9V
Black	GND
Yellow	Wiegand DATA0
Blue	Wiegand DATA1
Purple	RS485 R+
Orange	RS485 R-
Brown	GND
White	RS232 RXD
Green	RS232 TXD
Grey	Trigger input(TTL level)
