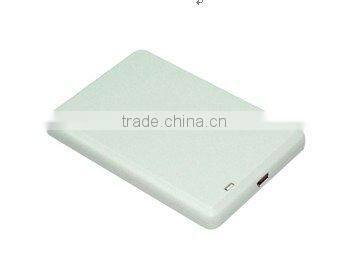

HYB505U

RFID UHF Reader&Writer

HYB505U is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

FEATURES

        Self-intellectual property;

        Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

        860~928MHz frequency band(frequency customization optional);

       FHSS or Fix Frequency transmission;

        RF output power up to 10dbm(adjustable);

       No external power source needed;

       Built-in antenna with effect distance up to 200mm^*;

      Support USB1.1 interface with VSP(Virtual Serial Port) or HID mode;

      Slim outline;

      Provide SDK and demo software to facilitate further development.

* Effective distance depends on protocol, tag and environment.

CHARACTERISTICS

l        Absolute Maximum Rating

l        Electrical and Mechanical Specification

Under T_A=25°C,VCC=+5V unless specified

* Effective distance depends on protocol, tag and environment.
