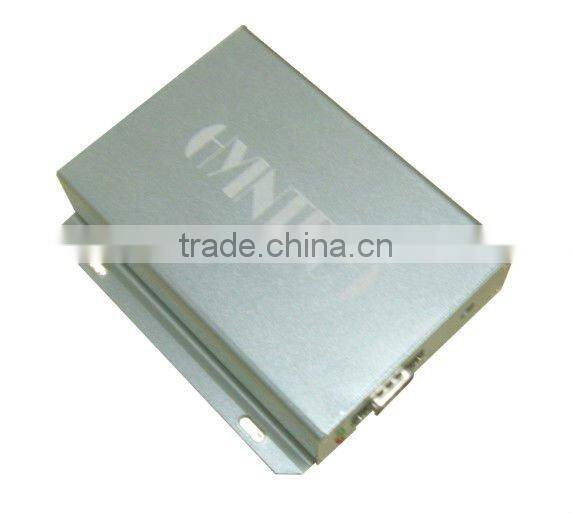

RFID HF tag Mid Distance Reader Writer high identification ( 2 Antenna Port) desktop reader
- 10000 Set / Sets per Month
- shenzhen
- T/T Credit Card
- RFID HF Tag Reader Writer High Identification Rate ISO15693 RS232
- rfid shelf management book tracking system with software solution
- Anti-thief Jewelry tag
- rfid library management system ISO15693/ISO14443A hf adhesive book tag
- HF RFID Antenna 13.56mhz pannel antenna ISO15693 access control card reader
- HF rfid adhesive jewelry anti-theft tag security tag
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Hyintech | Model Number: | HYH1W2T |
Product Description
HYH1W2T
HF Tag Reader
HYH1W1T is a high performance ISO15693 protocol HF tag reader. It is designed upon fully self-intellectual property. Based on proprietary efficient anti-collision algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support mainstream ISO15693 protocol tag
l Advanced anti-collision algorithm. High identification rate with tag processing speed 30~50pcs/s);
l SMA RF interface to support standard 50ohm RFID antenna. Effective distance up to 70cm;
l Support TRANSPARENT COMMAND;
l Support SCAN MODE;
l Support optional DPPM and WPPM;
l Low power dissipation with single +12 DC power supply;
l RF output power over 1W;
l Provide RS232 or RS485 communication port;
l 8 bits reader address facilitating multiple readers network;
l Built-in Relay
CHARACTERISTICS
l Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
G_IN1,G_OUT1,G_OUT2 I/O Voltage | VIO | 7 | V |
Operating Temp. | TOPR | -25~+60 | °C |
Storage Temp. | TSTR | -25~+80 | °C |
l Electrical and Mechanical Specification
Under TA=25°C,VCC=+12V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT | |
Power Supply | VCC | 11.5 | 12 | 15 | V | |
Current Dissipation | IC |
| 350 | 450 | mA | |
Frequency | FREQ |
| 13.56 |
| MHz | |
Effective Distance* | DIS | 0 | 700 | 850 | mm | |
G_IN1 Input Level | VIH VIL | 3.5 | 2.6 2.3 |
1.55 | V V | |
G_OUT1, G_OUT2 Output Current | ±IO |
|
| 5 | mA | |
G_OUT1,G_OUT2 Output Level | VOH(IO=-5mA) VOL(IO=5mA) | 3.95 |
|
0.73 | V
| |
Relay | Rated Load | CLOAD |
|
| 0.5A at 125VAC 1A at 24VDC |
|
Operating Voltage |
|
|
| 125VAC 60VDC | V | |
Operating Current |
|
|
| 1 | A | |
Size | L x W x H |
| 116 x 104 x 27 |
| mm |
*Effective distance depends on antenna, tag and working environment.
