HF RFID GATE READER

HYL50C

Specification

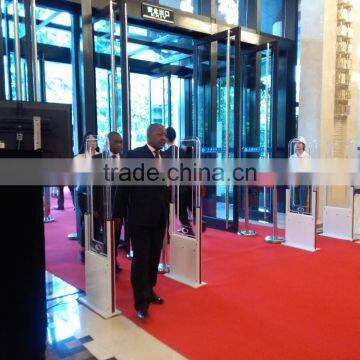

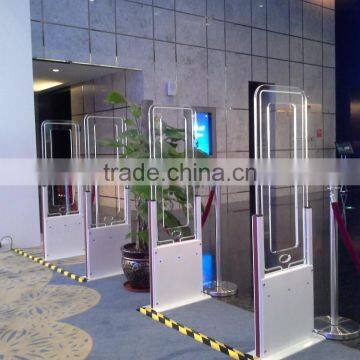

HYINTECH Automatic Attendance System is barrier-free and automatically check-in device designed for conference, exhibition and other events. This system is integrated with HYINTECH high-performance reader and infrared sensor, can rapidly and accurately identify personnel in/out with or without cards. It can identify ISO/IEC15693 and ISO18000-3 tags. The widest identification distance can be up to 120 cm (exact distance depends on tag and working environment ).

Main Features

Ø         Working Frequency: 13.56Mhz

Ø         Compatible Protocol: ISO15693 and ISO18000-3 protocol

Ø         Passage Width: 70~120cm (adjustable according to user’s demands)

Ø         Radio Frequency Power: 3~8W(adjustable)

Ø         With noise detection function to detect electromagnetic interference around

Ø         Integrated infrared sensor cutting analysis, can rapidly and accurately identify personnel in/out with

         or without cards and to prevent their followers

Ø         Communication Interface: Ethernet and RS232 port.

Ø         Built-in sound and light alarm/prompt function.

Ø         Power Supply: AC 100~240V

Ø         Transparent acrylic design, looks beautiful and elegant

Key Parameters
