Rfid hf 120cm Reading Distance Reader

Rfid hf 120cm Reading Distance Reader thumbnail-1
Rfid hf 120cm Reading Distance Reader photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hyintech
Model Number:
HYH4W1T
Contact Supplier Request Quote Chat Now
Hyin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Hyintech
Model Number HYH4W1T
Product Description





HF tag reader

HYH4W1T

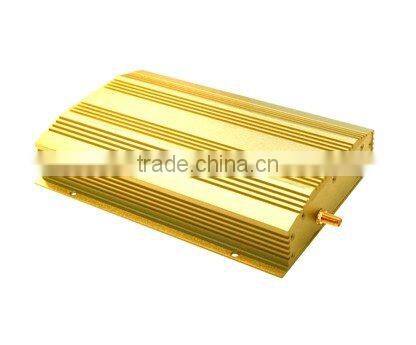

rfid hf 120cm Reading distance reader
GENERAL DESCRIPTION

    HYH4W1T is a high performance ISO15693 protocol HF tag reader. It is designed upon fully self-intellectual property. Based on proprietary efficient anti-collision algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.



FEATURES

l        Self-intellectual property;

l        Support mainstream ISO15693 protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM…);

l        RF output power over 4W;

l        Advanced anti-collision algorithm. High identification rate with tag processing speed 80pcs/s);

l        SMA RF interface to support standard 50ohm RFID antenna. Reading distance up to 120cm;

l        Support TRANSPARENT COMMAND and SCAN-MODE;

l        Support optional DPPM and WPPM;

l        Support multiple readers network;

l        Low power dissipation;

l        Provide DLL and demonstration software to facilitate development.





INTERFACE

l        Electrical and Mechanical Specification

Under TA=25°C,VCC=+12.6V unless specified



ITEM

SYMBOL

MIN

TYP

MAX

UNIT

Power Supply

VCC

11.6

12.6

15

V

Current Dissipation

IC



0.8

1.2

A

Frequency

FREQ



13.56



MHz

Effective Distance*

DIS

0

900

1000

mm

G_IN1 Input Level

VIH

VIL

3.5

2.6

2.3



1.55

V

V

G_OUT1, G_OUT2

Output Current

±IO





5

mA

G_OUT1,G_OUT2

Output Level

VOH(IO=-5mA)

VOL(IO=5mA)

3.95





0.73

V



Relay

Rated Load

CLOAD





0.5A at 125VAC

1A at 24VDC



Operating Voltage







125VAC

60VDC

V

Operating Current







1

A

Size

L x W x H



215 x 138 x 39



mm

*Effective distance depends on antenna, tag and working environment.
