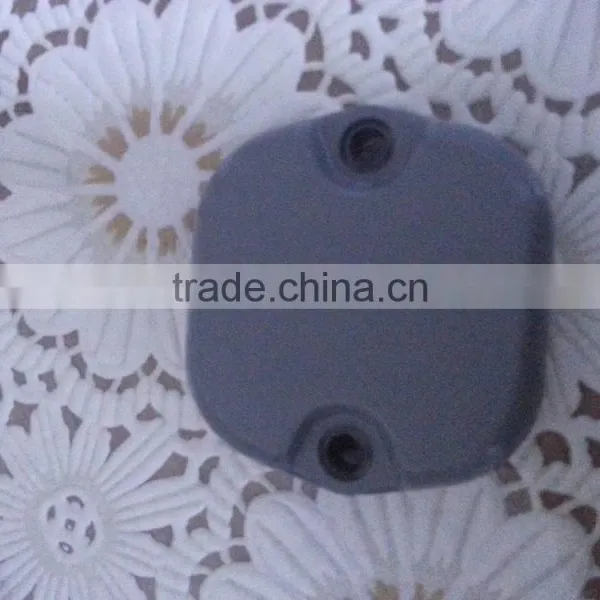

All Directions Reading UHF Rfid Metal Card

US$ 1 - 1.5 MOQ: 1000 Pieces

Key Specifications

Brand Name:

HCT

Model Number:

LQ750

Hongchangtag Tech-Sci Development Inc.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing Shenzhen or HongKong

Delivery Detail:

Delivery time depends on order quantity.

Brand Name HCT

Model Number LQ750

Based on a rugged construction, square footprint and high durability, the LQ 750 is ideally suited to RTI applications in

1. Automotive supply chain.

2. Logistics and Postal

3. Manufacturing tote tracking

RF Specifications
Protocol	EPC Class 1 Gen2
Frequency Range (MHz)	860-930MHZ (GS)
Read Range (Fixed reader)	1.Up to 10m (global)
Read Range (Handheld reader)	Up to 5m(global)
Material Compatibility	Optimized for metal
IC Type (chip)	Alien H3
Memory	EPC - 96bit User - 512bits TID - 64bits
Note 1. Quoted performance achieved using standard testing methodology. Read range will vary with Reader hardware and output power. 2. EPC and User memory are reprogrammable, TID is locked at point of manufacture
Physical Specifications
Encasement	Durable paint
Size (mm)	52.5x 45 x 14(mm)(+/-1.0) /2.1 x 1.8 x 0.55.(in) (+/- 0.04)
Weight	34.5g
Environmental Specifications
Operating Temperature	–40 ° to +85 °C
Long term Max Temperature	exposure - (days, weeks, years) +85 °C
Short term Max Temperature	exposure - (minutes,hours) +105 °C
IP Rating	IP68,Submersion proof to 3000m depth
Shock and Vibration	MIL STD 810-F
Impact2	25kg from 1m
Attachment	Permanent liquid adhesive (not included),Film adhesive(optional)
Warranty	3 year
