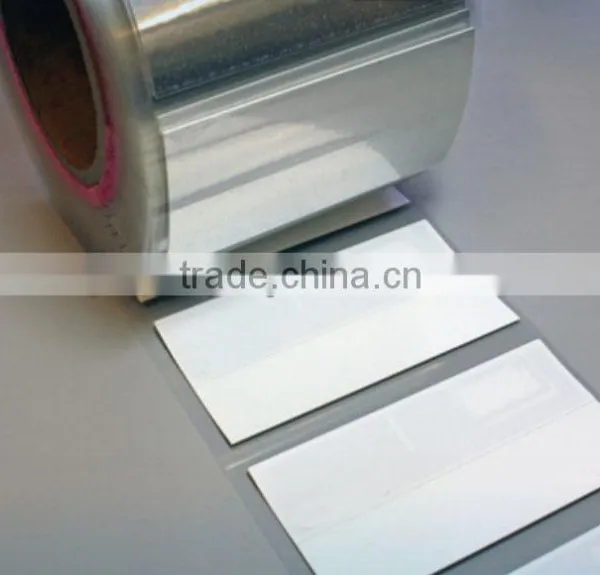

Help CenterUHF RFID Tag Working on Metal and Liquid
Related Products
RF Specifications | |
Protocol |
EPC Class 1 Gen2 |
Frequency Range (MHz) |
866-868MHZ 902-928MHZ |
Read Range (Fixed reader) |
1.Up to 4m (13.1ft) |
Read Range (Handheld reader) |
Up to 2.0m (6.5ft) |
Material Compatibility |
Optimized for Metal and Liquid |
IC Type (chip) |
Impinj Monza 4QT |
|
Memory
|
EPC - 96bit User - 512bits TID - 64bits |
|
Note 1. Quoted performance achieved using standard testing methodology. Read range will vary with Reader hardware and output power. 2. EPC and User memory are reprogrammable, TID is locked at point of manufacture | |
Physical Specifications | |
Encasement |
Synthetic Label |
Size (mm) |
103 x 28x 0.8(mm)( +/- 0.5 ) 4.1 x 1.1 x 0.03 (in) (+/-0.02) |
Weight |
2.8g |
Environmental Specifications | |
Operating Temperature |
–20 ° to +65 °C |
Long term Max Temperature |
exposure - (days, weeks, years) +65 °C |
Short term Max Temperature |
exposure - (minutes, hours) +85 °C |
IP Rating |
IP68 |
Attachment |
Self-adhesive (standard) |
Printer Certifications |
Toshiba and Zebra |
Warranty |
1 year |
