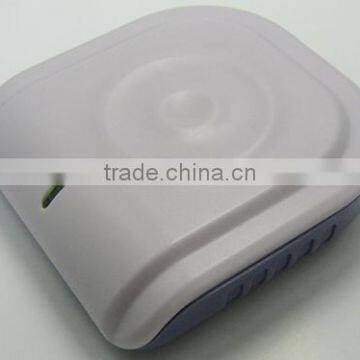

HF RFID desktop reader with WIFI

FOB Price

USD $38 - $53 / Set

1 Set(Min.Order)

Product Details

Place of Origin:

Beijing, China

Brand Name:

HCT

Model Number:

HCT-HFR-10800

work frequency 13.56Mhz
support ISO14443 or ISO15693, can read mifare s50, s70, mifare desfire, USB. Ethernet interface

R/W chip	MFRC500,MFRC400,MFRC531,MFRC632(optional)
Standard	ISO/IEC 14443-A,ISO/IEC 14443-B,ISO15693
Frequency	13.56MHz/125KHZ
Model	HCT-HFR-10800A supporting ISO14443A only HCT-HFR-10800B supporting ISO15693 only HCT-HFR-10800C supporting ISO14443A/B+ISO15693 HCT-LFR-10800D supporting 125KHZ read only
Speed	106Kbit/s
Baud Rate	9600-115200(configurable, default rate 9600)
Power supply	DC 5V(±5%)
Current	<100mA
Operating range	30-100mm(depend on card antenna size and chip)
Interface	standard port is USB/RS232/PS2(TCP/IP+WIFI is optional)
Expend I/O port	N/A
Indication light	1 DUAL LED,1 BUZ
Working temperature	-10°C ~ +70°C
Store temperature	-20°C ~ +80°C
Max. humidity	Relative humidity 0 ~ 95%
Size	100mm × 100mm × 30mm
Develop support	Provid SDK ,DEMO infree

Hongchangtag Tech-Sci Development Inc.: Contact nameKelly Xu; AddressRoom 402, Unit 1, No. 10 Building, 5th Zone, Longxiyuan, Huilongguan Town
