VHF/UHF 1- 5W Long Range Radio Modem With RS232, RS485 Interface

Product Description:

 FC-301/D is a synthesized 5-watt FM transceiver module which is designed for data as well as voice (with selectable pre-emphasis, squelch, and audio amplifier). Two-point modulation for good low-frequency response used in the radio makes it a good choice to work with 9600 baud data modem. Compact size and multi-voltage DC connection capability gives the module flexibility in use.

Key Feature:

Technical Specifications:

• Frequency band: 136-174MHz,400-470MHz
• Operation voltage: DC12.5V
• Transmit 5 Watts RF Power :< 1.5A
• Transmit 1 Watt RF Power:<0.8A
• RX current: 40mA
• RF output power:  1W - 5W Programmable
• Channel Spacings:25KHz,12.5KHz programmable
• Modulation type :16K0F3E ,8K5F3E
• Intermediate Frequency: 45.1MHz&455KHz
• Number of Channels:16
• Frequency Source :Synthesizer
• Operation Rating:Intermittent   5:5:90 ( TX: RX: Standby)
• Storage:from  -40°C to +80°C
• Operating:from  -30°C to +60°C
• Dimension: 120*60*20mm(Length * width * height)

Applications:

 Industrial telemetry & wireless remote control

Gas and oil flow monitoring

Electricity, water, and gas utilities

Earthquake, weather, environmental protection and urban lighting control

Vehicle tracking and asset tracking systems

Water monitoring, waste water management and irrigation control

Railway, police, army automation system

Aerial defense and fire alarm system

Wireless Paging system

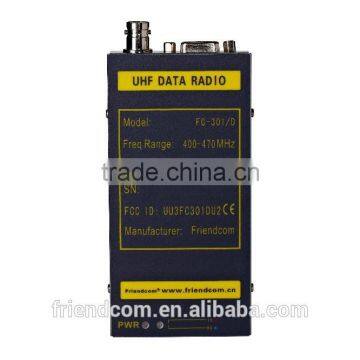

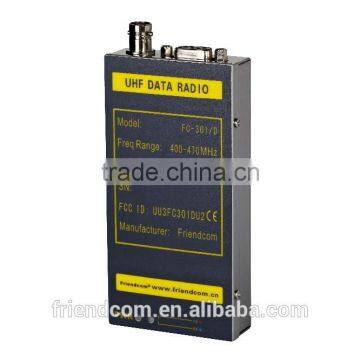

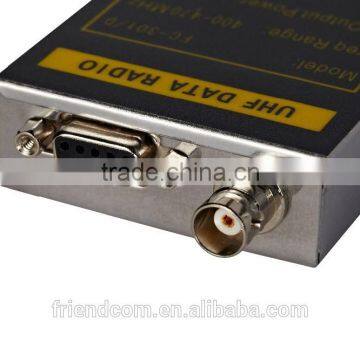

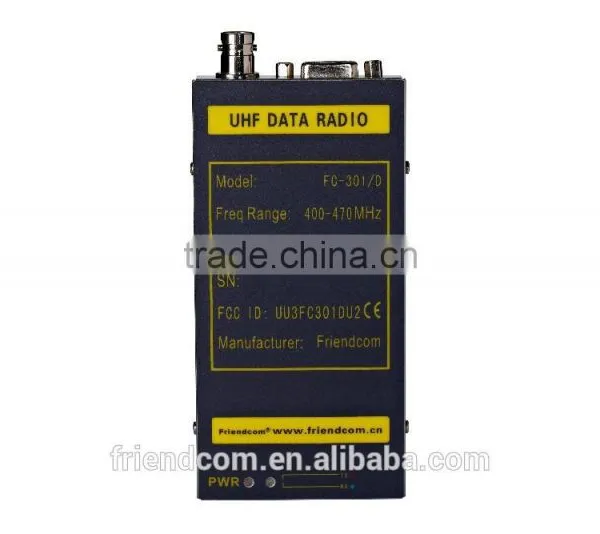

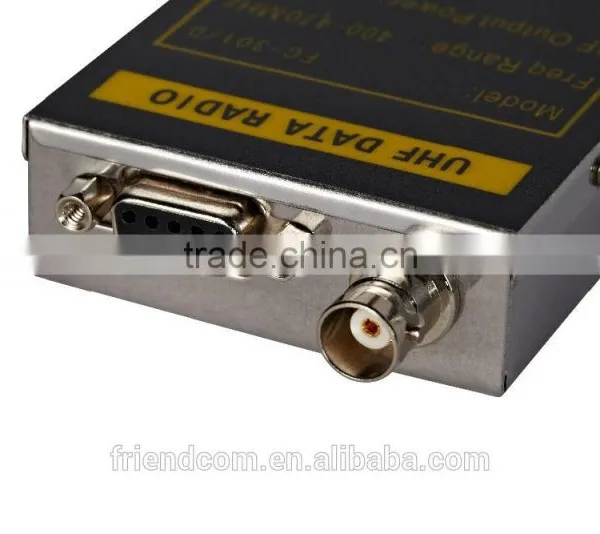

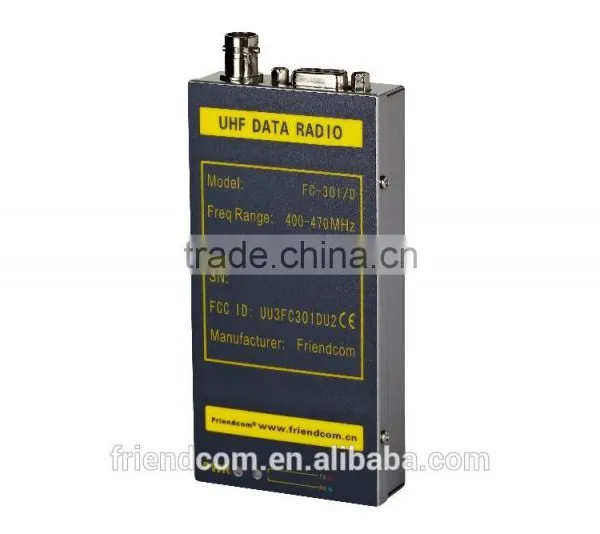

Data Modem of FC-301/D:

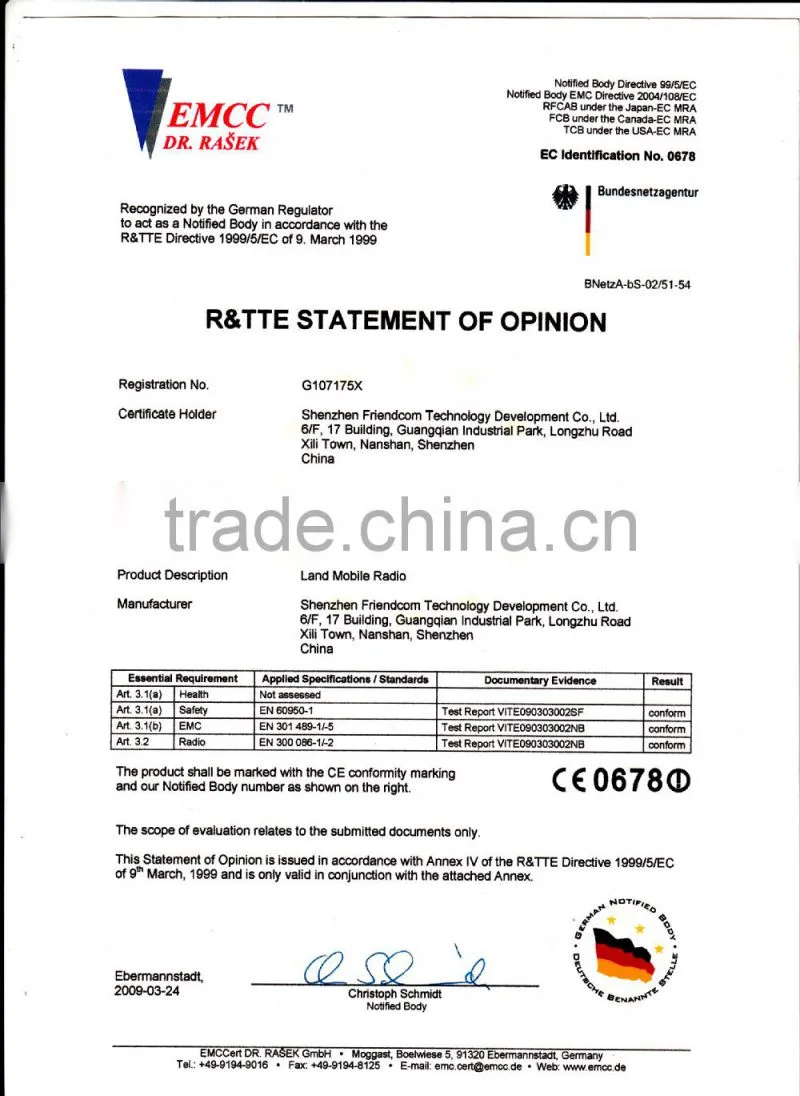

CE & FCC certification
