5-25W Wireless FM Data Link Vehicle Tracking System Radio Modem

Product information

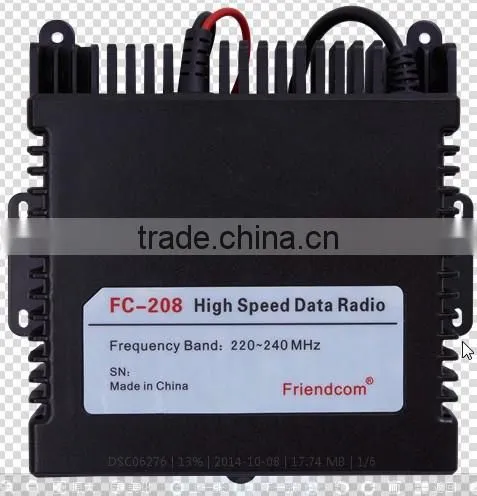

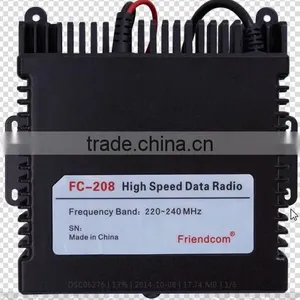

FC-208 is a low cost professional wireless communication FM data radio developed by Friendcom Technology. It works in band 230 MHz (223.025MHz~235MHz) and has a fast TX startup time. Two-points modulation is applied in the radio. Optional embedded data modem based on CMX969 can easily implement point to point, or point to multi-points wireless data transmission systems such as electricity load monitor and control, distribution automation or remote metering. FC-208 can be used as a Base radio working together with FC-206 as the Slave radio, and form a private radio network.

Key Features

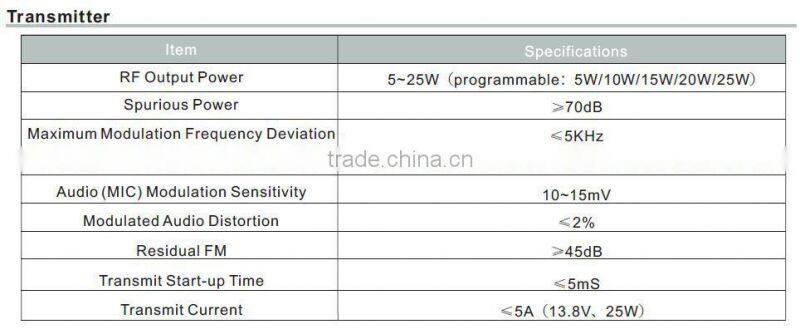

 • 5-25W RF power programmable
 • Data transmission dedicated band (223.025-235MHz), preset on 99 channels with half duplex programmed,      and be selectable by software
 • Working temperature: -40℃~+70℃, meet industrial demand
 • Transmission protection and can be set up for continuous transmission.
 • TX startup time < 5ms. Fast RX/TX switch time.
 • Provide internal, external modem interfaces. Highest date rate at19.2Kbps
 • Built-in modem using forward error correction, interleaving / de-interleaving, error rate

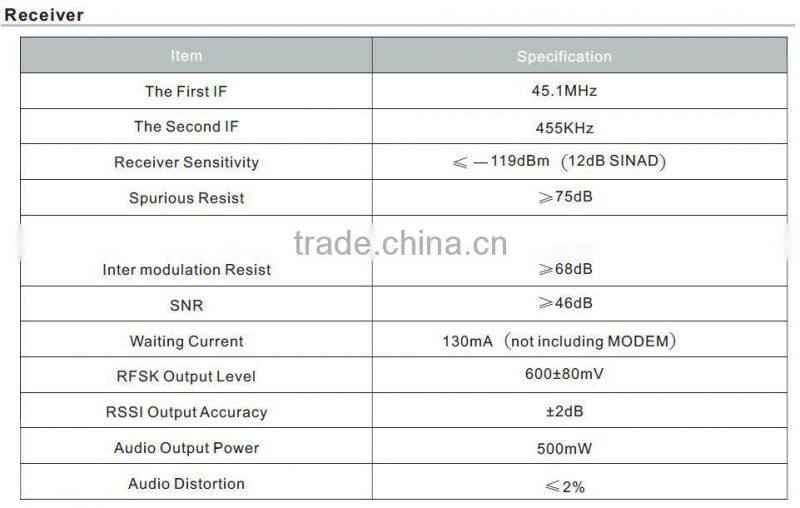

 • High receiver sensitivity, low data error rate
 • Solid die-cast aluminum housing

 • Strong anti-interference ability, long communication distance
 • Operates from 12V to 16V, wide operating voltage
