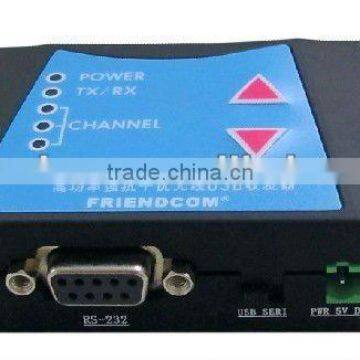

USB and RS232 Wireless Transceiver Module

Specifications

Product Description:

FC-22X series data radio module is based on narrow-band RFIC. The RF output power from 25W to 10mW is available. It has features of high sensitivity and good anti-interference capability. It can easily implement point to point or point to multi-point long-distance data communication.

Specification :

1) Frequency band: 433MHz(default),868MHz,915MHz
2) 3FSK
3) Channel: 8, customized for more channels.
4) RF Power: 500mW
5) Receiver sensitivity:  -122dBm@1200bps,-120dBm@2400bps
6) Transmit current:<450mA/USB,<450mA/RS232
7) Receive current:<45mA/USB,<45mA/RS232
8) Channel Spacing: 25kHz
9) Interface: RS-232,USB,Baud rate: 1200-19200bps.
10) RF data rate: 1200-19200bps
11) Power Supply: 5.0±0.5V DC
12) Temperature: -30°C ~ 80°C
13) Size: 87mm x 56mm x 27mm
14) Weight:70g

Applications:

•      Wireless AMR system
•      Wireless data collection
•      Industrial control and telemetry
•      Wireless queuing system
•      Wireless weighting scales
•      Security monitor and alarm

•      LED sign automatic display
