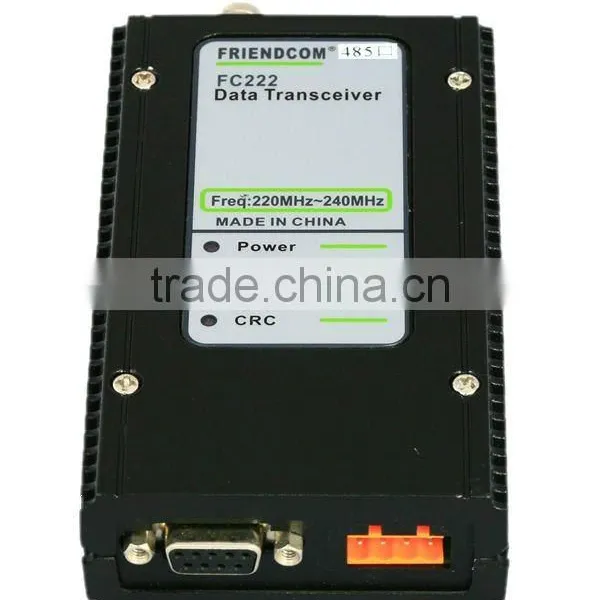

Embedded Modem Narrow-band High Speed Data Radio FC-222

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Model Number:

FC-222

Shenzhen Friendcom Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Model Number FC-222

Specifications

Narrow-band Based
High data rate, High sensitivity, Low cost
reliable for telemetry and industry control

Narrow-band High speed Data Radio embedded Data Modem

Ⅰ. Features

Frequency: 223MHz-235MHz.
Multi-Channels: The standardconfiguration of FC-222 provides 41 channels, CH121-CH161.
Modulation mode: 3FSK, high-efficiency
High Sensitivity: Adopt high performance narrow-band RF IC chip.
Bandwidth: 5KHz,12.5KHz,18.75KHz and 25KHz optional.
RF power: 1W, 2W, 3W, 4W, 5W, 6W optional.
Different TX/RX frequency Technology: FC-222 can transmit and receive signal at different frequency respectively. TX/RX channels can be reversed.
Safe and Reliable data transmission: M series encryption and CRC32 check adopted to ensure safety and reliability of data on air.
Data interface optional: RS-232, RS-485 and TTL.
Data rate optional: 1200bps, 2400bps, 4800bps, 9600bps,19200bps.
Software upgrade: The radio’s software can be upgraded via serial port. User can require the latest version of the radio software from Friendcom.

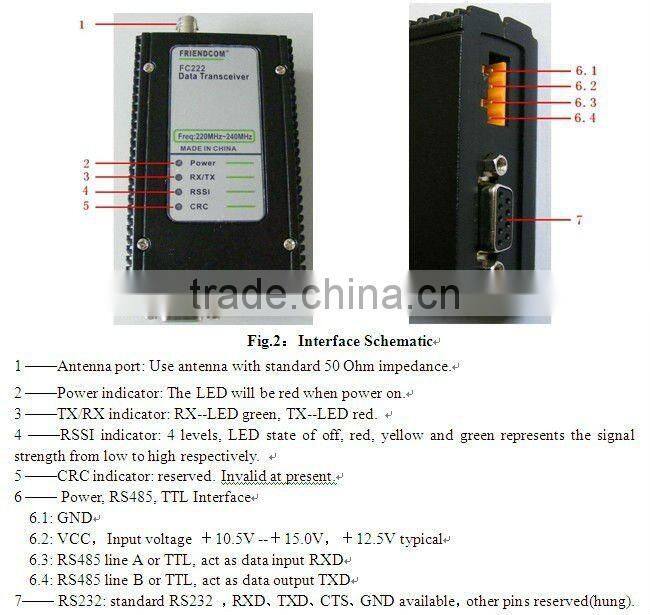

Ⅱ. Interface Description

Ⅱ. Technique Specification

No.	Item	Technical Specification	Remark
1	Work Frequency	223MHz -235MHz
2	RF output power	5.5W±0.5W
3	Modulation	3FSK
4	Channel spacing	25KHz
5	RX Sensitivity	Better than -118dBm(1200bps)
6	Transmit current	≤1.6A
7	Receive current	≤100mA
8	Standby current	≤80mA
9	RF data rate	1200/2400/4800/9600/19200bps	Set by user
10	Port data rate	600/1200/2400/4800/9600/19200/bps	Set by user
11	Port data format	8E1/8N1/8O1	Set by user
12	Power supply	10.5V~15V,Nominal voltage +13.8V	DC
13	Spurious Emissions (Radiated)	-65dB
14	Operating Temperature	-40°C~85°C
15	Humidity	10%~90% RH,
16	Dimension	106mm×54mm×18mm
17	Weight	150g
18	Antenna Base	BNC connector, female
