FC-RF103 433MHz Small Size Low Power FM Transmitter Module

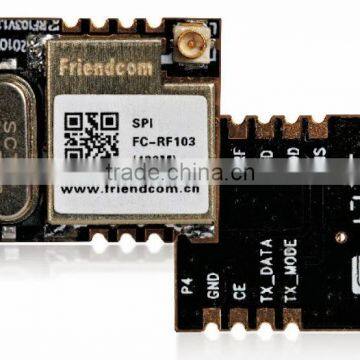

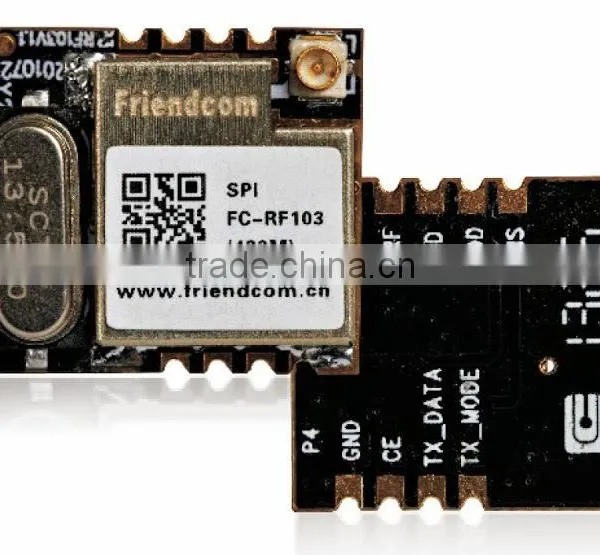

FC-RF103 433MHz Small Size Low Power FM Transmitter Module photo-1
US$ 1 - 5 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Friendcom
Model Number:
FC-RF103
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Friendcom
Model Number FC-RF103
Product Description



FC-RF103 is 420MHz to 440MHz low-cost mini-size Transmitter module. It has optionalmodulation FSK or ASK. It is recommended to work with FC-RF104 RF Receiver which enable the simple implementation of a data link at up to 20 kbps at distances up to 250 meters within 16 mA Low Power Comsuption.



Technical Specifications

Work frequency: 420MHz~440MHz
Center frequency : 433.92MHz
Work voltage: DC 3V (2.2--3.6V)
Transmit current: 16mA@10dbm
Sleep current: <1uA
RF power: Max 10dBm
RF data rate:: Max 20kbps
Modulation: FSK / ASK
Programming interface: SPI
Dimension: 17.6×16.1×5mm (L×W×H)
Work Temperature: -40℃--+85℃
Storage Temperature: -55℃--+125℃

Typical Applications

Remote control
Wireless sensor
Garage door opener
TPM (Tire Pressure Monitor)
Wireless toy
Packaging & Shipping



Packages are generally dispatched within 3 days after receipt of payment and are shipped via DHL with tracking and drop-off without signature. If you prefer delivery by DHL Extra with required signature, an additional cost will be applied, so please contact us before choosing this method. Whichever shipment choice you make, we will provide you with a link to track your package online.

Shipping fees include handling and packing fees as well as postage costs. Handling fees are fixed, whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed separately, and shipping fees will apply to each of them. Your package will be dispatched at your own risk, but special care is taken to protect fragile objects.

The images shown are for your reference only and some parts may be little difference. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction! Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

Boxes are amply sized and your items are well-protected
