433Mhz Mini RF Transceiver Module 20dBm(max) With SPI

Shenzhen Friendcom Technology Development Co., Ltd.
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI thumbnail-1
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI thumbnail-2
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI thumbnail-3
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI thumbnail-4
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI thumbnail-5
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI photo-1
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI photo-2
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI photo-3
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI photo-4
433Mhz Mini RF Transceiver Module 20dBm(max) With SPI photo-5
US$ 3 - 10 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Friendcom
Model Number:
FC-RF1023
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Friendcom
Model Number FC-RF1023

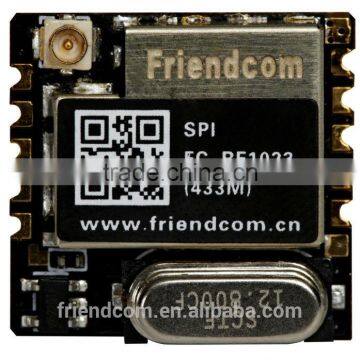

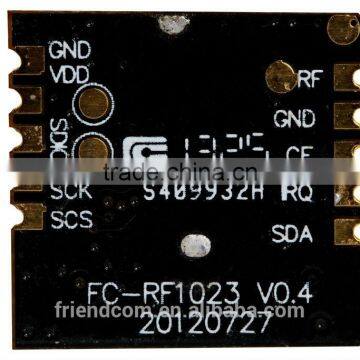

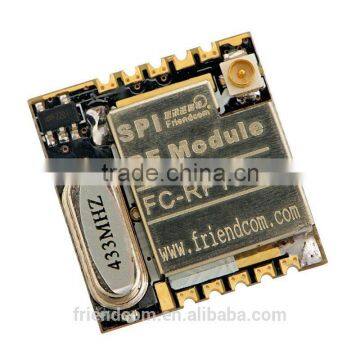

FC-RF1023RF Transceiver is a compact surface-mounted half-duplex FSK module. It is a low-cost small-size wireless module with SPI and IIC for embedded applications. MCU can read the data via IIC to configure the module easily, which shortens the development period and reduces cost effectively. The RF data rate can reach 250kbps. The module with optional FEC, CRC, Manchester encoding and data whiten can realize stable and reliable data transmission in busy ISM band. The module is completely shielded and designed for operation under the European and US radio regulations for license-free use.





Main Applications:



  1. Intelligent home control system
  2. Wireless RFID tag
  3. Wireless sensor
  4. POS terminal
  5. Industrial data transmission
  6. Automatic data collection system
  7. Wireless remote control
  8. Wireless AMR for water, gas and hot, electricity and other meters.

Technical Specifications:



ItemsParameters
Frequency band315MHz / 433MHz /470MHz / 868MHz / 915MHz optional
Operation voltageDC3V(2.2--3.6V)
TX current90mA @ 20dBm
RX current14mA
Sleep current1uA
RF output powermaximum 20dBm(0dBm,5dBm,10dBm,15dBm, 20dBm programmable)
RF data rate250kbps
Receiver sensitivity-120dBm@2Kbps Dev = 8K
 -116dBm@10Kbps   Dev = 12.5K
 -110dBm@50kbps   Dev = 18.75K
 -107dBm@100Kbps   Dev = 37.5K
 -104dBm@150Kbps    Dev = 56.25K
Modulation modeFSK
Program interfacesSPI and IIC digital interface
Dimension18.6×17.55×5mm(Length X width X height)
Operation temperature -40°C--+85°C
Storage temperature -55 °C,+125 °C



 433Mhz Mini RF Transceiver Module 20dBm(max) with SPI

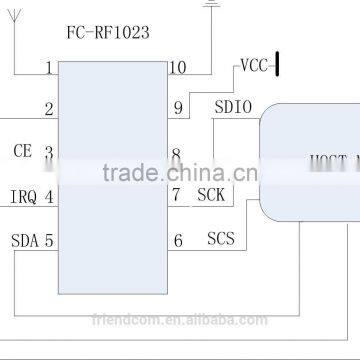

Typical Application Circuit

433Mhz Mini RF Transceiver Module 20dBm(max) with SPI
