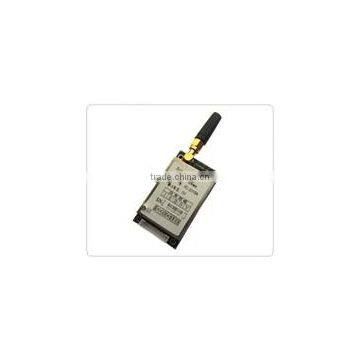

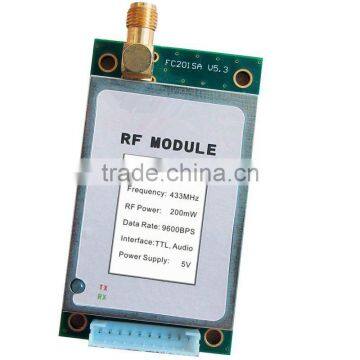

433Mhz UHF RF Transceiver Audio/Data Module FC-201SA
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Friendcom
Model Number:
FC-201SA
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
433Mhz Wireless Transmitter and Receiver /RS232/RS485NegotiableMOQ: 2 Pieces -
Wireless Radio Modem Data/Voice Transceiver ModuleNegotiableMOQ: 2 Pieces
-
VHF/UHF Audio/Data RF Module Wireless TransceiverNegotiableMOQ: 2 Pieces
-
433Mhz Mini RF Transceiver Module 20dBm(max) With SPIUS$ 3 - 10MOQ: 3 Pieces
-
Narrow-band High Speed Wireless Transceiver Long RangeNegotiableMOQ: 2 Pieces
Place of Origin
Guangdong, China
Brand Name
Friendcom
Model Number
FC-201SA
Specifications
Data/Audio transmission available25kHz(9600Bps)/12.5kHz(4800Bps)
RS-232/RS-485 UART/TTL interface
RSSI & SQ output available
Technical Specifications
| Items | Parameters |
| Frequency band | 144~148MHz,487.00~491.00MHz, 430.00~440MHz |
| Frequency Stability | ±2.5ppm |
| Modulation | MSK |
| Sensitivity | ≤-119dBm(BER<10E-3) |
| Channel spacing | 25KHz/12.5KHZ |
| RF Data Rate | 1,200~9,600bps |
| RF output Power | 300/200mW Optional |
| Channels | 16 |
| Power supply | 5.0 ±0.5VDC |
| Operation temperature | –30°C to +65°C |
| Interface | RS-232, RS-485, UART/TTL Optional |
| Interface Data Rate | 1,200 ~ 9,600bps optional |
| Transmitting Current | ≤200mA |
| Standby Current | ≤40mA |
| Dimensions | 61.5×36×12mm |
| Weight | 30g |
| Antenna Impedance | 50 Ohm |
| Antenna Port | SMA connector, female |
