27dbm Wireless Module With 1km Range

Specifications

Product Description:

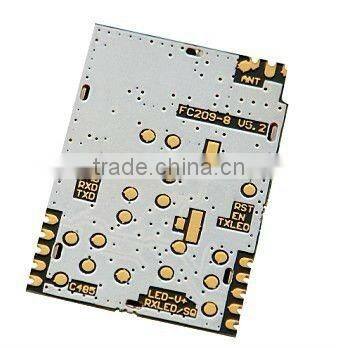

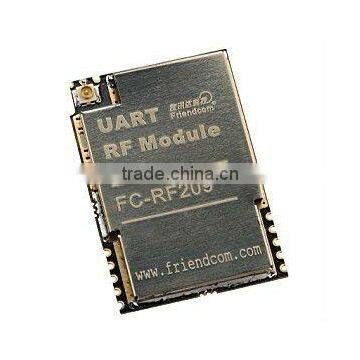

FC-RF209 RF Transceiver is a compact surface-mounted half-duplex module for ISM band operation.It is a multi-channel low-cost wireless UART module for embedded applications. The module is completely shielded and designed for operation under the European and US radio regulations for license-free use.

Technical Specifications:

•       Frequency band: 315MHz / 433MHz /470MHz / 868MHz / 915MHz optional
•       Operation voltage: DC5V(3.3--6V)
•       TX current: 320mA
•       RX current: 27mA
•       Sleep current: 0.1uA
•       RF output power: 500mW
•       RF data rate:1200/2400/4800/9600/19200/38400bps
•       Port data rate:1200/2400/4800/9600/19200/38400bps
•       Receiver sensitivity:  -110dbm/38400bps, -122dbm/1200bps
•       Modulation mode: 2FSK
•       Dimension: 41*22*3.2mm(Length * width * height)

Applications:

• Intelligent home control system
• Wireless sensor
• Radio modems
• POS terminals
• Bar code scanners
• Telemetry stations
• Fleet management
• Automatic data collection system
• Wireless remote control
• Wireless quening system
