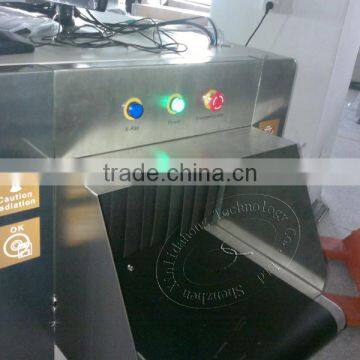

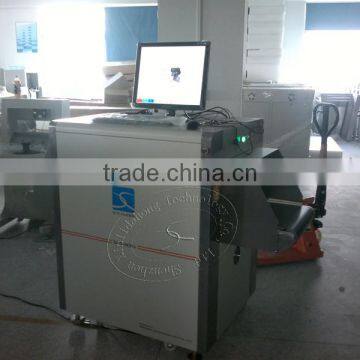

Help CenterSmall Tunnel Airport X-ray Machine ,x-ray Baggage Scanner
Related Products
-
Airport Security X-ray Baggage&luggage Scanner Scanner XLD-8065 Security SystemUS$ 13,900 - 16,500MOQ: 1 Set -
New and Hot-selling X-ray Baggager Scanner (XLD-6550)US$ 300,000 - 400,000MOQ: 1 Piece
-
Airport Security X-ray Baggage Scanner XLD-10080US$ 18,500 - 21,000MOQ: 5 Sets
-
X-ray Luggage Scanner With Network Interface XLD100100NegotiableMOQ: 1 Set
-
X-ray Baggage Sanner Machine XLD-5030ANegotiableMOQ: 1 Set

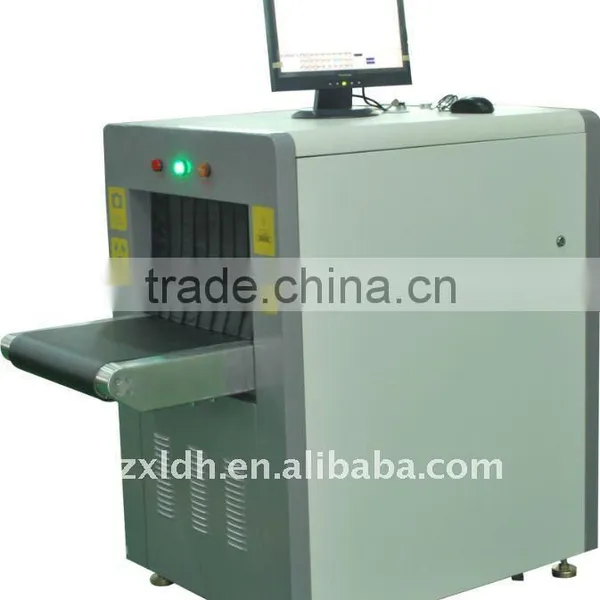

X-ray machine XLD-5030A
Technical Parameter:
Tunnel size: 500(w)×300(h)mm
conveyor speed: 0.22 m/s
conveyor max load: 20 kg
single inspection dosage < 1.5µgy
wire resolution: 0.1mm metal line
steel penetration: 8mm armor plate
film safety: for iso 1600
maximum leakage radiation <0.3µgy/h
X-ray generator:
Orientation: vertically upward
Tube current: 0.4~0.5ma(adjustable)
Anode voltage: 80 kv(adjustable)
Angle: 60°
FEATURE:

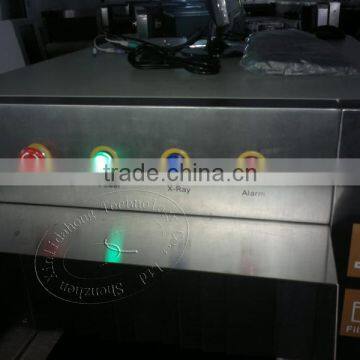

1. Alarm by sounds & light:Alarm by sounds and light when conform to condition.
2. Network interfaceCould be connect local area network and support multi-terminal check baggage at same times
3. Safety rayTransmit ray under automatic control, avoids the miss
4. Image monitoring for user-friendlyThe monitor use fold, rotary system, operators adjusts the monitor position willfully according to own need, reduces wearily.
5. Simple operation by mouseWithout keyboard and work table, control by mouse, save space.
6. Turn off by a key controlTurn off the machine only need one steprevolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
7. Eagle-eyeCould be expediently observing enlargement area.
8. Estimate malfunction by selfAutomatic estimate malfunction and prompt message, helpful for the maintenance.
