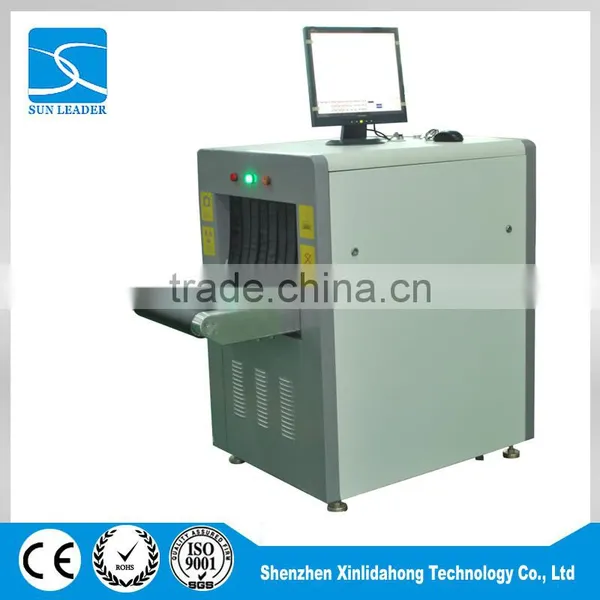

item; XLD-5030A X-ray machine /X-ray inspection machine /detector machine
TECHNICAL DATE
TUNNEL SIZE;505W*305HMM
CONVEYOR SPEED;0.16M/S
CONVEYOR MAX LOAD;10KG
SINGLE INSPECTION DOSAGE;<0.1m/r
IDENTIFICATION;DA 0.1MMM METAL WIRE
PENETRATION;5MM STEEL BOARD
FILM SATETY;FOR ISO 1600
MAX LEAKAGE RADIATION ; <0.1M R/H STANDARD FOR SAFETY AND INTERNATION TEST
X-RAY GENERATOR
TUBE VOLTAGE; 70KV
ORIENTATION ;VERITICALLLY UPWARD
IMAGE SYSTEM ; X-RAY SENSOR L TYPE PHOTO -DIODE ARRAY DETECTOR 12BIT
MONITOR; HIGH RESOLUTION 15 INCH LCD DISPLAY STANDARD FOR MPRII AND TC003 TEST
COLOR ; 24BIT REAL COLORS
CRAY IMAGE ; 4096
IMAGE IDENTIFICATION ;1024*768
OPERATION TEMPERATURE;0C-45C20%-95%
STORAGE TEMPERATURE; -.-20C-60C20%-95%
SYSTER POWER ; 220VAC(+-10%)50+-3Hz
power wastage ; 0.5kva
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001 certificate.
