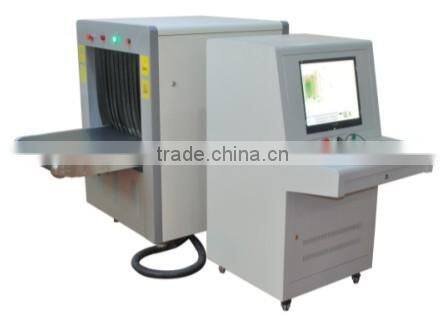

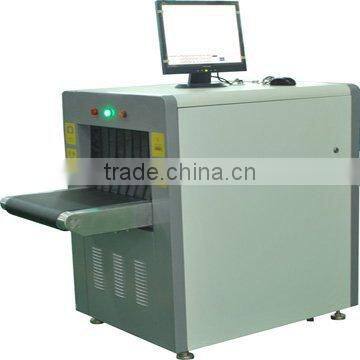

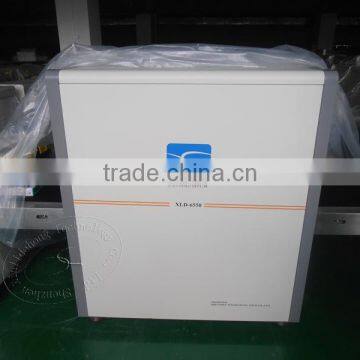

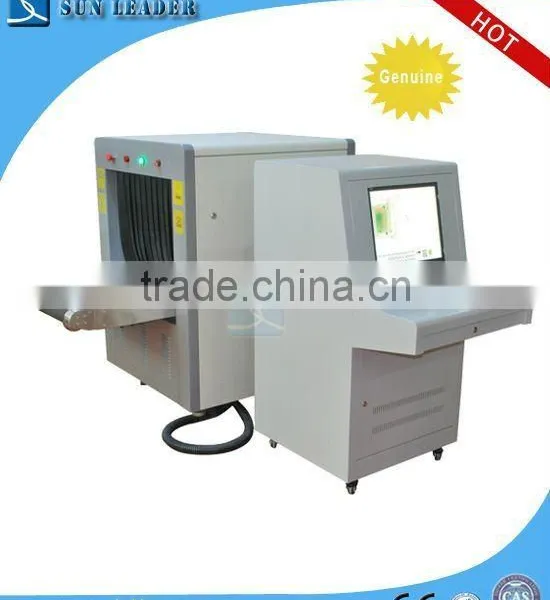

Model XLD-6550 x-ray baggage scanner
Product Feature
1 Alarm by sounds & light
Alarm by sounds and light when conform to condition
2 Network interface
Could be connect local area network and support multi-terminal check baggage at same times
3 Safety ray
Transmit ray under automatic control, avoids the miss.
4 Simple operation by mouse
Without keyboard and work table, control by mouse, save space.
5 Turn off by a key control
Turn off the machine only need one step revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler.
6 Eagle-eye Could be expediently observing enlargement area.
7 Estimate malfunction by self
Automatic estimate malfunction and prompt message, helpful for the maintenance.
TECHNICAL DATA
Tunnel Size: 650(W)×500(H)mm
Conveyor Speed: 0.22 m/s 1
Conveyor Max Load: 100 kg
Single inspection dosage < 1.5µGy
Wire Resolution: 0.1mm metal line
Steel Penetration: 30MM armor plate
Film Safety: For ISO 1600
Maximum leakage radiation <0.3µGY/H
X-RAY GENERATOR
Orientation: Vertically Upward
Tube Current: 0.4~1.2MA(adjustable)
Anode Voltage: 100~160 KV(adjustable)
Angle: 80°
Generator cooling/working periods Sealed oil bath with forced air/100%
IMAGE PERFORMANCE SYSTEM
X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT
MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY
COLOR QUALITY: 24 BIT REAL COLORS
EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT
SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT
HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY
LOW PENETRATE STRENGTH DISPLAY:INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY
MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT
BRIGHTENING/DIMMING:INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE
IMAGE RECURRENCE:DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM
IMAGE RESTORATION:RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR
IMAGE STORING:REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS
