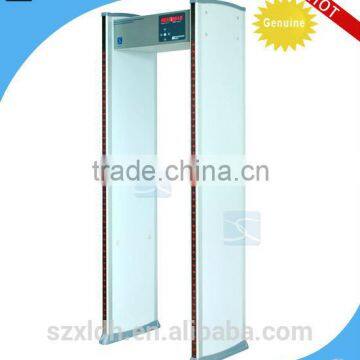

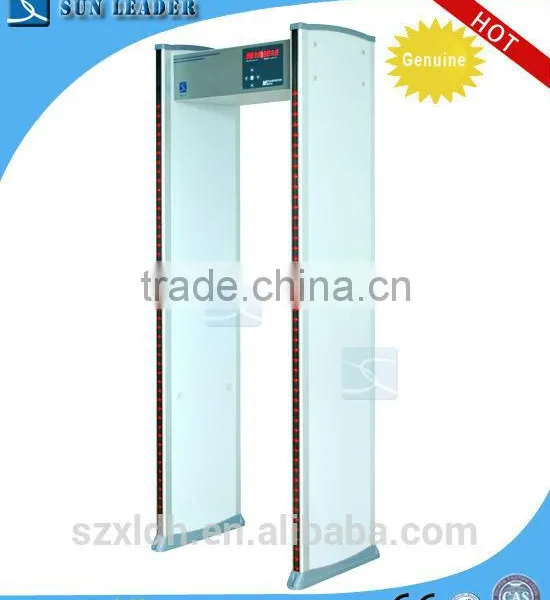

Metal Detector Less False Alarm Security Alarm System XLD-A

Power self-checking

Function

Upon starting up ,the system will automatically diagnose whether the operation is ok or not

Automatically display the content of  system malfunction

Operation Method

1)Chinese/English menu function for choice

2) Computer remote networking.

  Speed

The fastest speed: 100 people per minute .Detection speed of user-defined    adjustment.

Backlight Time

Adjustable continual display time: 0 to 99 Seconds

Detecting Zone

6 standard  zones  (default value: 6 zones )

Alarm Indication

1) Alarm time: 1 to 25 seconds. Range of adjustable Volume: 255 Degree.

2)Around the goal post ,can be directly show inspection zones through the LED alarm light  ,and accurately show the corresponding height of the body hidden prohibited items.

Sensitivity Adjustment

1).Can evenly adjust 255 degree sensitivity of every zone

2).Preset in line with the weight , volume, dimension and position of metal items to exclude false alarm of coins, keys, jewelry and buckles and so on

Strong anti-jamming capability

1)Adopting the advanced interactive receiving and transmitting

2) Automatically detecting and tracking by temperature and humidity and   compensation technique to be available to different environment and     climate, significantly increased anti-jamming capability.

Networking function(optional)

.Using RJ-45 network interface, which has no limit in distance ,and improved the defects of the short distance of RS232 network.

Configure of dedicated PC software to reach remote parameter setting / inquiry function so that we know work safety of metal detector gate.

Counting Function

Intelligent recording people number and alarm counting function that can automatically record the number of people and times of alarm.

Alarm Recording

Times of alarm. Anytime can be check.

Waterproof designs

use of imported waterproof synthetic material produced by precise  technology synthesis

Place

can be set using the occasion required random mode (such as airports, entertainment venues, the Court)

Online help

Help system placed inside. More easy and intuitive to operate .

Power supply

AC85V -264V/50-60HZ

Consumption power

20w. Low power consumption and; Low radiation

Overall dimension

 2220mm (h) x 820mm (w) X 500mm

Tunnel dimension

2045mm (h) X 700mm (w) X 500mm

Weight of the whole machine

Approximately  68 kg

Workplace environment

-20°C+45°C
