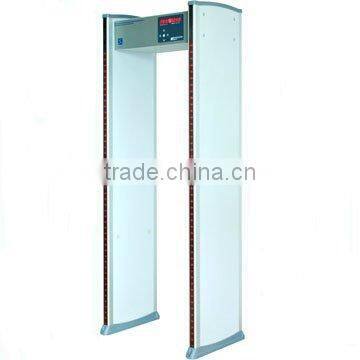

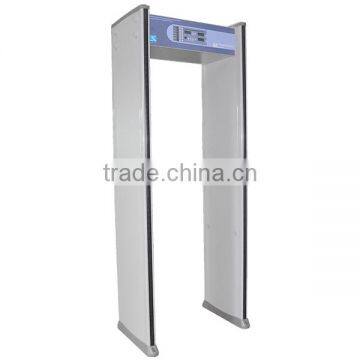

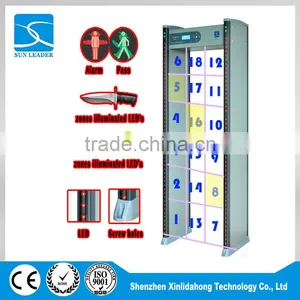

Help Center18 Zones Walk Through Metal Detector Monitoring System Metal Detector GateXLD-E
Related Products
-
New and Fashionable Body Scanner Metal Detector Airport Security Scanner XLD-EUS$ 600 - 1,000MOQ: 1 Set -
Computer Network Walk Through Gate Door Frame Metal Detector XLD-EUS$ 600 - 1,000MOQ: 1 Set
-
Wholesale Door Frame Metal Detector With LCD Display XLD-B(LCD)US$ 1,500 - 2,000MOQ: 20 Pieces
-
Stable and Fashionable Airport Security Scanner Metal Detector(XLD-E)US$ 990 - 1,200MOQ: 1 Set
-
New and Fashionable Airport Security Scanner Metal DetectorUS$ 990 - 1,300MOQ: 1 Set
Display | LCD Display . (walkthroough metal detector ) |
Power self-checking Function | .Upon starting up ,the system will automatically diagnose whether the operation is ok or not .Automatically display the content of system malfunction |
Operation Method | 1)Chinese/English menu function for choice 2) Computer remote networking. |
Speed | The fastest speed: 100 people per minute .Detection speed of user-defined adjustment. |
Backlight Time | Adjustable continual display time: 0 to 99 Seconds |
Calendar | Minute , Hour , Day Month and year . |
Detecting Zone | Multi-zone and signal zone for your option according to requirements(default value: 6 zones ) |
Zone Performance | 1) Partition zone of Digital metal detector according to the body structure 2) Networking with overlapping detection methods ,eliminating the detection region of “weak zones” and “shadow area” 3) Adopting the single frequency formed very uniform magnetic area density in the excitation technique detecting zones 4) Strong penetration, high sensitivity and stable performance. |
Alarm Indication | 1) Alarm time: 1 to 25 seconds. Range of adjustable Volume: 255 Degree. 2)Around the goal post ,can be directly show inspection zones through the LED alarm light ,and accurately show the corresponding height of the body hidden prohibited items. |
Sensitivity Adjustment | 1).Can evenly adjust 255 degree sensitivity of every zone 2).Preset in line with the weight , volume, dimension and position of metal items to exclude false alarm of coins, keys, jewelry and buckles and so on |
Strong anti-jamming capability | 1)Adopting the advanced interactive receiving and transmitting 2) Automatically detecting and tracking by temperature and humidity and compensation technique to be available to different environment and climate, significantly increased anti-jamming capability. |
Safety capability: 1) Double password protection, only allowing authorized user to operate. High safety. 2) Restoring the default value when system error because of improper operation. 3).Uninterruptible power protection system using the battery working 2 to 8 hours , power failure protection system has a parameter (optional) 4) Placed in the top of the host machine power supply can operate by remote control or power control panel working on the machine. Waterproof, moistureproof and better heat dissipation. 5).Has no harm on those who have human cardiac pacemakers and pregnant women, as well as magnetic floppy disk, tape, etc. | |
Networking function(optional) | .Using RJ-45 network interface, which has no limit in distance ,and improved the defects of the short distance of RS232 network. Configure of dedicated PC software to support remote parameter setting / inquiry function so that we fully know work safety of metal detector gate. |
Counting Function | Intelligent recording number of people and alarm counting that can automatically record the number of people and times of alarm. |
Alarm Recording | Times of alarm. Anytime can be check. |
Waterproof designs | use of imported waterproof synthetic material produced by precise technology synthesis |
Place | can be set using the occasion required random mode (such as airports, entertainment venues, the Court) |
Online help | Help system placed inside. More easy and intuitive to operate . |
Power supply | AC85V -264V/50-60HZ |
Consumption power | 20w. Low power consumption and; Low radiation |
Overall dimension | 2230mm(height)X830mm(width)X580mm(depth) |
Tunnel dimension | 2000mm(height)X700mm(width)X500mm(depth) |
Weight of the whole machine | Approximately 98kg |
Workplace environment | -20°C+45°C |
Standard | Inspection reports of the Public Security Department .The relevant trademark .Products have related the appearance of patent and utility model patents, so intellectual property disputes will not involve. .It is harmless on people who have cardiac pacemaker , pregnant women as well as to magnetic floppy disc , magnetic tape and videotape. GB1520-2003standard
|
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001,CEand RoHS certificate.
