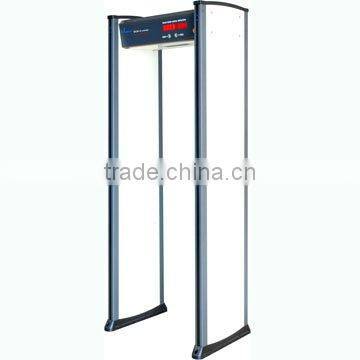

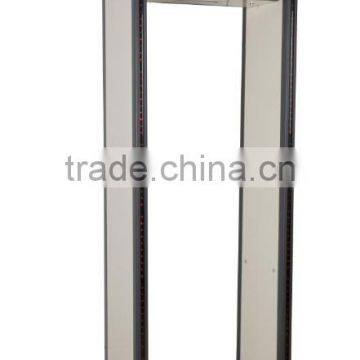

Waterproof and Firewroof Airport Security Detecotor XLD-A1

Access control System

 Technical parameter

Power supply AC 220V -110V        Consumption power <30VA
Workplace environment   -20°C~+45°C
Overall dimension 2200mm(height)X800mm(width)X500mm(depth)
Tunnel dimension       2010mm(height)X700mm(width)X500mm(depth)
 Weight of the whole machine Approximately 98kg

Features

Technics The appearance is mport synthetic materials. It is processed by special technics waterproof as well as fireproof.
6detector zones These 6 equal parts lap over each other and they can alarm at the same time.
Display  It selects high definition television LED display.
Alarm zone indication  LED indicator lamps are built in the side of every alarm zone. Thus, it is more obvious and accurate to indicate the position where the metal article locates on the people.
Sensitivity of every zone adjustable With a sensitivity range of 0-99, the detector can exclude jewelry, buckle, and metal zipper and so on .At the highest sensitivity, it can detect an article as small as a clip.

Strong anti-jamming capability The system filters and balances signals through digital signal processing technology (DSP) to efficiently avoid distortion and failure.

 Operation methods The parameters are adjusted by manual adjustment on the operation panel.
Alarm tones:There are three options for alarm as high, low and no tones and the length of the tone is adjustable.
Password protection It is set an administrator password exclusive to authorized person. It can prevent modifying parameters by others effectively.

Other functions   Intelligent statistics depend on the number of people and the times of alarm
Internet access (customize)
According to different requirements, a computer can control forty detector doors at the same time.
Parallel network
Several detectors can be put into use in parallel network with a distance merely 35cm.  Safety of the power supply The power supply is at the top of the host.
Harmless It is harmless to people who have cardiac pacemaker inside and the pregnant woman as well as to magnetic floppy disc and magnetic tape.

Places
It is available in hardware factory and electronics factory preventing the lost of metal products, as well as in jail, court, exhibition, gymnasium Hotel and recreation places for security inspection.
