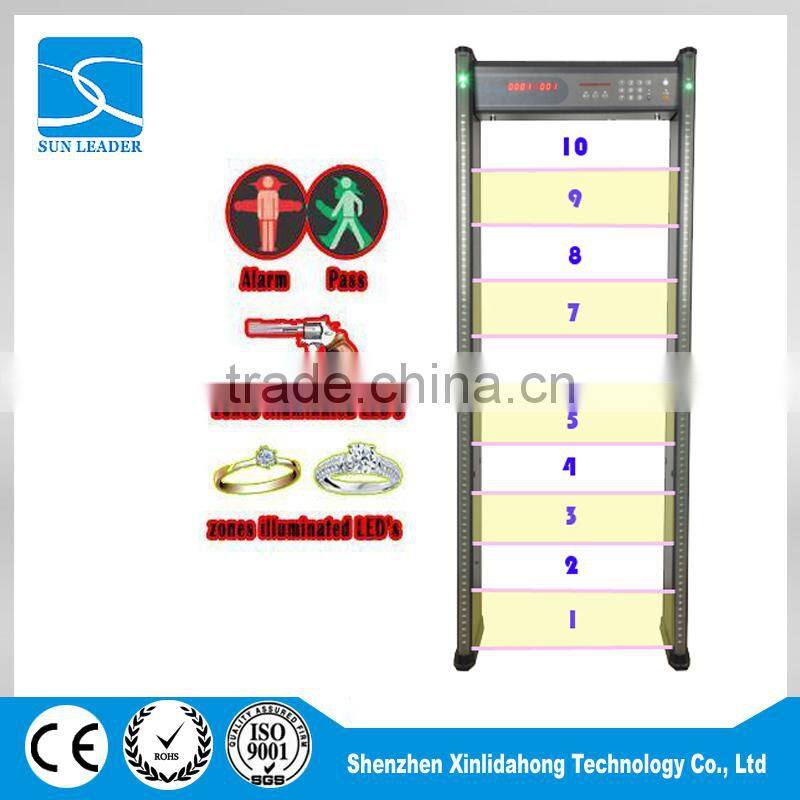

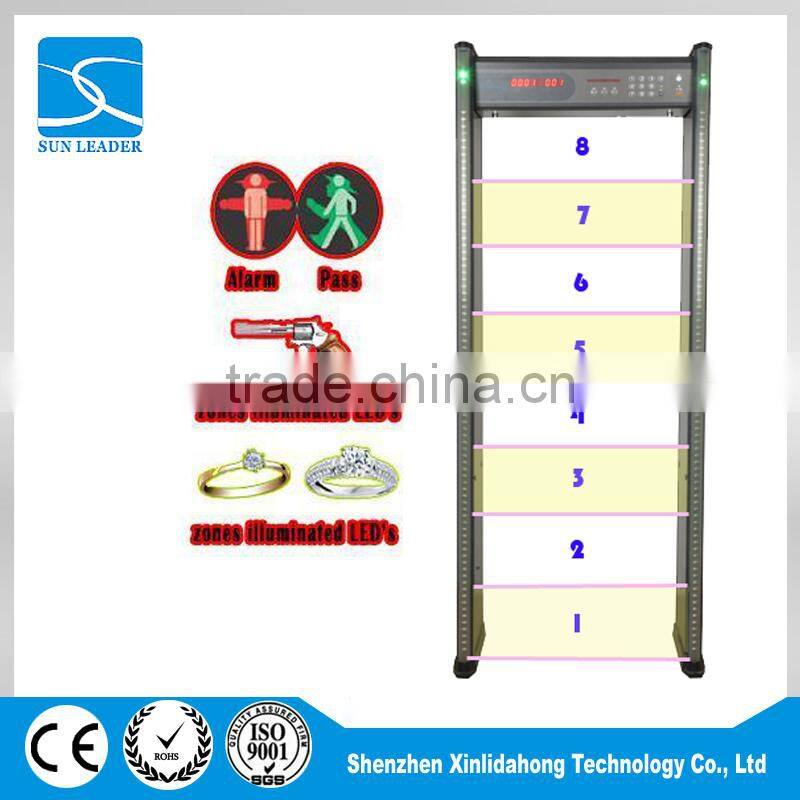

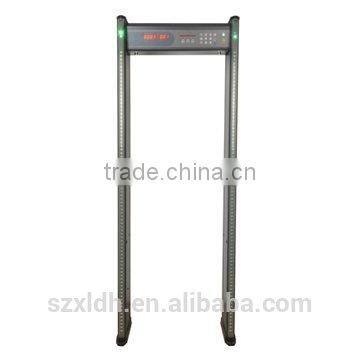

Walkthrough Metal Detector Door Model XLD-B(LED) 8/10 zone
Door frame metal detector
The appearance is aluminum alloy and ABS engineering materials. It is processed by special technics waterproof as well as fireproof.
8/10 detector zones Optional
Display It selects high definition television LED display.
Alarm zone indication
LED indicator lamps are built in the side of every alarm zone.
Sensitivity of every zone adjustable With a sensitivity range of 0-256, the detector can exclude jewelry, buckle, and metal zipper and so on depending on the user. At the highest sensitivity, it can detect an article as small as a clip. Strong anti-jamming capability The system filters and balances signals through digital signal processing technology (DSP) to efficiently avoid distortion and failure. Operation methods The parameters are adjusted by a remote controller or by manual adjustment on the operation panel.
Alarm tones
There are three options for alarm as high, low and no tones and the length of the tone is adjustable.
Internet access (customize)
According to different requirements, a computer can control forty detector doors at the same time.
network
Several detectors can be put into use in parallel network with a distance merely 35cm.
Places
It is available in hardware factory and electronics factory preventing the lost of metal products, as well as in jail, court, exhibition, gymnasium and recreation places for security inspection.
Authentication and standards
A It is harmless to people who have cardiac pacemaker or else inside and pregnant women as well as to magnetic floppy disc , magnetic tape and videotape.
B It accords with"3-GUN TEST"FAA standard and all the NILECJ-0601-00 safety standards.
C It accords with Electromagnetic Compatibility (EMC) and the rules of EC.
D It accords with EN55011,FCC on radio interference and VDE0875 standard.
E It accords with GB15210-2003.
Power supply220V Consumption power<30w
Overall dimension2200mm(height)X800mm(width)X500mm(depth)
Tunnel dimension 2050mm(height)X700mm(width)X500mm(depth)
Weight of the whole machineApproximately 68kg
1. What is the minimum order quantity?
The MOQ is 1 piece.
2. What is the lead time?
3-5days after T/T payment, for other products please contact us for details.
3. What is the payment term?
The payment term is T/T ,L/C before shipment.
4: How does your company and factory do regarding quality control?
Every products will be detected after producing and approved by ISO9001 certificate.
