Product Details
Place of Origin: | Guangdong, China | Brand Name: | XLD | Model Number: | XLD-YZ01 |
Product Description

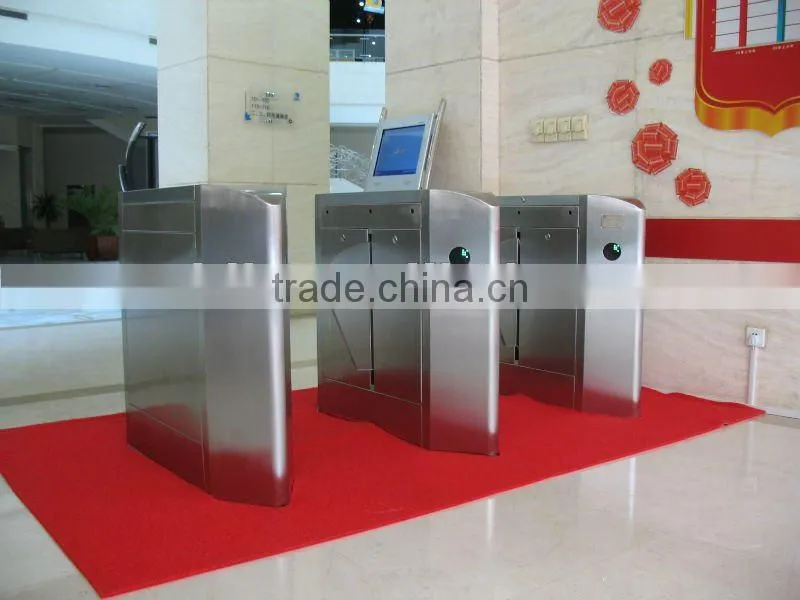

wing barrier gate,flap speed gate
1. Equipment introduction
Category:
Single core: used in single channel or multi-channel
Double cores: used in multi-channel
2. Main function and characteristcs
2.1 Functinal features of standard product:
1) With function of self-examine and alarm, it is convenient for maintenance and use.
2) Being able to program running status by the small keyboard in the main board
3) Preventing pedestrians or bicycle from being nipped and from hurt, the force of the
pole is less than 2Kg
4) Sound or light alarm function
5) Poles are automatically locked until a opening signal is received.
6) Poles synchronization
7) Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
8) Channels automatically open when power off, and automatically close when power on.
9) Several card reading devices are attachable.
10) One direction or bi-direction control are optional.
11) It can be directly controlled and managed by remote control.
Extendable functions:
Count
The length of casework and poles is optional.
3. Standard technical parameters
* Framework material: GB 304 grade stainless steel
*Framework size:
Bridge-type round
angle: L1200*W300*H1000(mm)
* Length of the arms: 250mm
* Width of the channel: 600mm(standard)
* Working voltage: AC220 ±10% V/50 ±10% HZ
* Driving electromotor: DC brush electromotor 24V
* Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms , driving current: > 10mA
* Normal life-span: 3million times
* Communication interface: RS485 (standard)
* Transit speed: 30-40 persons/min
* Card reader windows: 4 Maintenance windows: 4
* Time for opening or closing: 1 seconds
* Starting time after power on: 3 secconds
* Automatic reset time after fault: 10seconds
* Working environment: Indoor, outdoor( with a tent over)
Temperature: -10°C—— 50°C
Relative humidity: ≤90% no condensation
