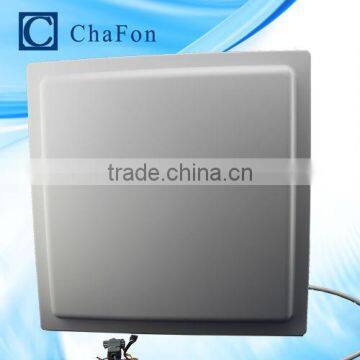

860mhz-960mhz uhf reader iso18000 6b 6c gate reader for car parking system
CF-RU5112 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 12dbi antenna optional with effect distance up to 10m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9 DC power supply;
9. Support RS232, RS485, Wiegand TCP/IP interface;
* Effective distance depends on antenna, tag and environment.
Parameter
1.Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | °C |
Storage Temp. | TSTR | -20~+75 | °C |
2.Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC | 350 | 650 | mA | |
Frequency | FREQ | 902 | 928 | MHz |
3.Interface
Item | Comment |
Red | +9V |
Black | GND |
Yellow | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 RXD |
Green | RS232 TXD |
Grey | Trigger input(TTL level) |
