Specifications
1.handheld bluetooth reader2.860~960MHz
3.wireless bluetooth
4.with battery inside
UHF handheld bluetooth reader with complete English SDK (can work with Android device)
Product Description
CF-RMU900 reader is use for read different electronic tag and card, and sends the data to PDA, PC through Bluetooth wireless technology. It can detect UHFcard.support ISO18000-6C(epc gen 2) protocol card read and write function, Applied to device inspecition,vehicle identification,bill-anti-fakeand logistics mangement
Parameter
Index |
Description |
Frequency |
840~960MHz (customized according to customer requirement) |
Support protocol |
EPC C1 GEN2/ ISO 18000-6C |
work mode |
FHSS or fixed frequency transmission |
Antenna Connection |
Built-in 3 dBi antenna |
Maximum RF output |
15 dBm |
Transmit power |
10-15 dBm (set by software) |
Read mode |
Support auto-running,interative and trigger-activating work mode |
Identification time |
<8ms |
Read range |
About 20cm (write range is 70% of read range) |
Communication Interface |
Wireless Bluetooth; Mini USB |
Bluetooth Transmission Distance |
10-15m |
Working voltage |
DC3.7-4.2V (built-in rechargeable lithium battery) |
Battery capacity |
1700 mAh |
Charging voltage |
110-240V AC,50/60Hz |
power consumption |
≤1W |
Size |
83*52*25.8 mm |
weight |
110 g |
Work status |
Buzzer,Indicator |
Operating Temperature |
-20°C~+70°C |
Storage Temperature |
-40°C~+85°C |
Attachment |
Charger,Data lines,SDK |
Application
1.Device inspection: it is use to electrical, water supplier, railway, and coal mine
2.Vehicle identification: road charge, parking management.
3.Bill Anti-fake: customs, travel place, field.
4.Logistics management
Other Suppor
1.Please check detail information from this link
2.This reader comes with complete SDK,demo softaware,source code and user manual,it can help you do application software developing.
3. About the UHF bluetooth ,we also have UHF bluetooth peng reader,please come to below link to check with specific datasheet.

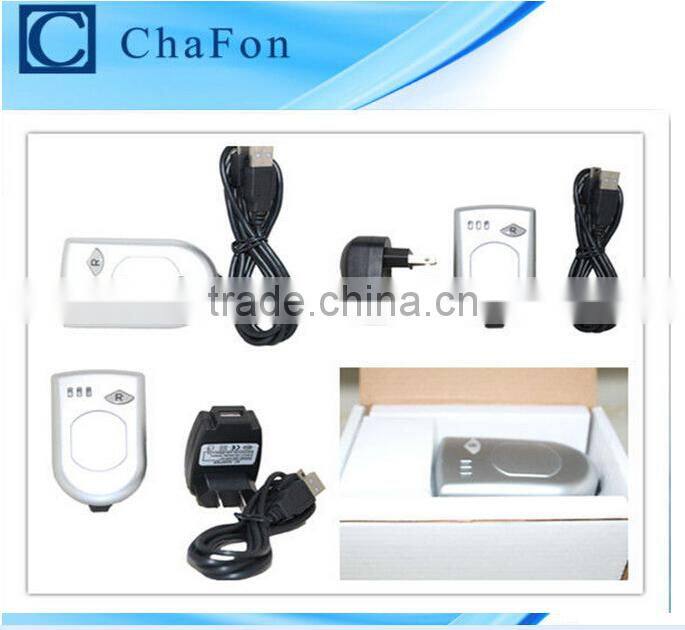

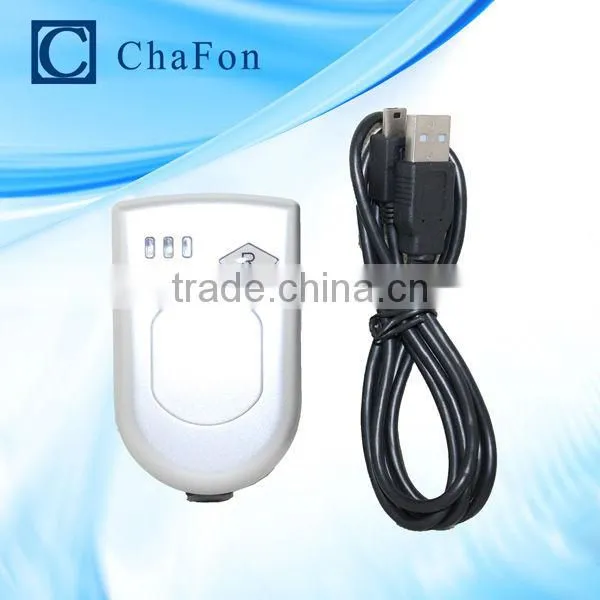

product picture
