Home > Products > RFID tags > nfc adhesive labels Ntag203,Ntag213,Ntag215,size optional,provide printing service
nfc adhesive labels Ntag203,Ntag213,Ntag215,size optional,provide printing service
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | ChaFon | Model Number: | CF-Ntag203 |
Product Description
Specifications
1.nfc adhesive labels2.13.56mhz
3.NFC chip
4.size 35*35mm
5.adhesive paper
Passive nfc label can be packaged all type NFC chip,size optional,provide printing service
NTAG203
Laebel Size optional:25*25, 30*30, 35*35,35*30,38*25,40*25,40*30,45*30,45*45, diameter 25, diameter 28,diameter 30, diameter 40
(size can be customized)
RF Interface (ISO/IEC 14443A)
- Contactless transmission of data and supply energy (no battery needed)
- Operating distance: up to 100 mm (depending on field strength and antenna geometry)
- Operating frequency: 13.56 MHz
- Fast data transfer: 106 kbit/s
- High data integrity: 16-bit CRC, parity, bit coding, bit counting
- True anti-collision
- 7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
EEPROM
- 168 bytes of total memory, divided in 42 pages (4 bytes each)
- 144 bytes of user r/w memory area, divided in 36 pages (4 bytes each)
- Field programmable read-only locking function per page for first 64 bytes
- Field programmable read-only locking function per block
- 32-bit user definable One-Time Programmable (OTP) area
- 16-bit counter
- Data retention of 5 years
- Write endurance 10000 cycles
NFC Forum Tag 2 Type compliance
NTAG203 IC provides full compliance to the NFC Forum Tag 2 Type technical
specification and enables NDEF data structure configurations.
Security
Anti-cloning support by unique 7-byte serial number for each device
32-bit user programmable OTP area
Field programmable read-only locking function per page for first 512 bits
Read-only locking per block for rest of memory

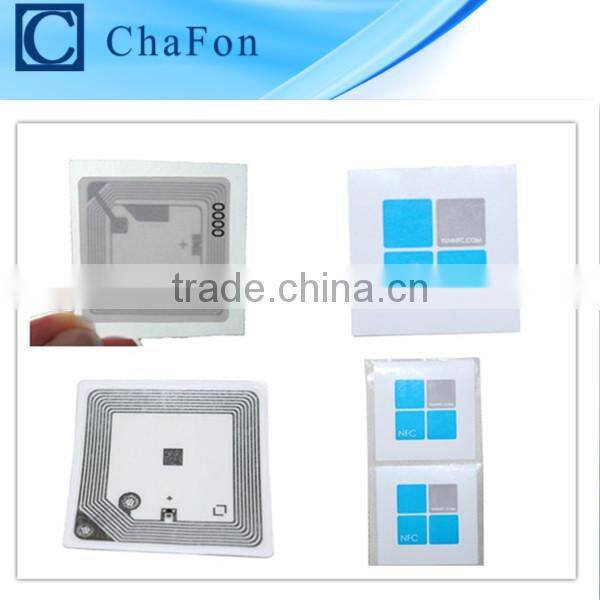

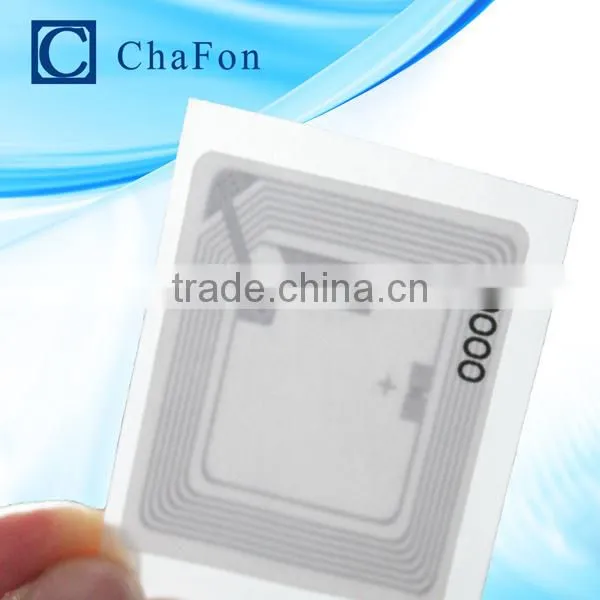

Product pictures
